Chapter 3 Connecting computers and other devices
smarttech.com/kb/171555 50
No. Connector Connects to Notes
5 HDMI 2.0 in HDMI 1 input
(videoandaudio)
See page36 and HDMI cables and
connectors.
6 USB 3.0 Type-B HDMI 2 input (touch) See page36 and USB cables and
connectors.
7 HDMI 2.0 in HDMI 2 input
(videoandaudio)
See page36 and HDMI cables and
connectors.
8 RJ45 (×2) Network See page29 and Ethernet (network)
cables and connectors.
9 S/PDIF out Digital audio output See page45 and Digital audio cables
and connectors.
10 Stereo 3.5 mm out External audio system See page45 and Analog audio cables
and connectors.
11 Stereo 3.5 mm in VGA input (audio) See page36 and Analog audio cables
and connectors.
12 VGA in VGA input (video) See page36 and VGA cables and
connectors.
13 USB 3.0 Type-B VGA input (touch) See page36 and USB cables and
connectors.

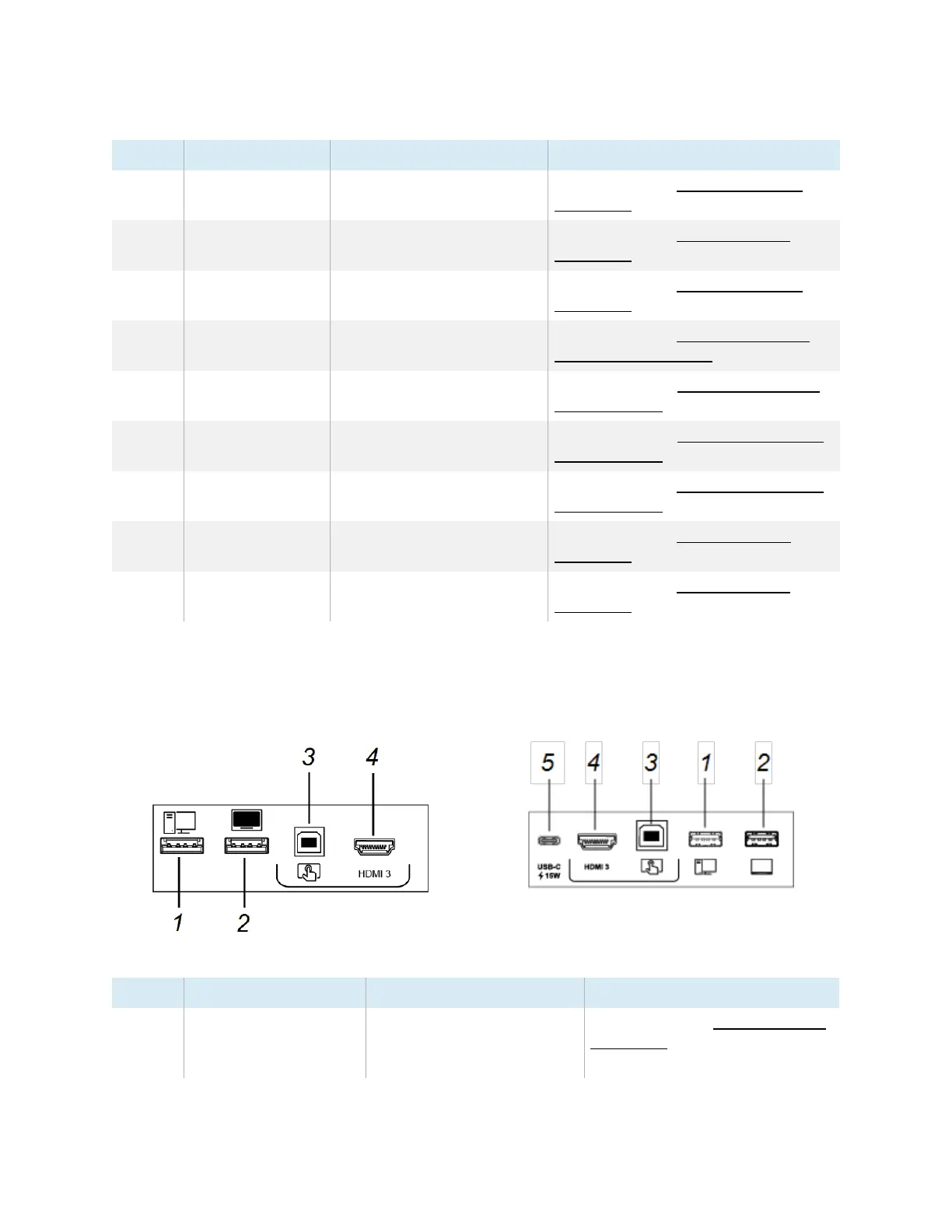

Front connector panel
The following diagram and table present the connectors on the display’s front connector panel:
SMART Board MX (V2) series SMARTBoard MX (V2-C) series
No. Connector Connects to Notes
1 USB 2.0 Type-A Supported USB drives,
peripherals, and other
devices
See page43 and USB cables and
connectors.
