r 1 W A E R M E P U M P E Z
W = E I N P N = E I N
Possible control behaviour - Relay 1 - 4
Standard control behaviour (parameterisable to all relays)
Consumer| Heat pump | Load shedding
Special control behaviour
Analogue relay (R1) | heating rod 2 (R2 & R3) | 1ph/3ph (R4)
Settings
Standard control behaviour
Regulation to target value - ZW
On: The target value set at the analogue output is taken into account.
Off: The switch-on threshold is calculated from target value 0.
Regulation with Pnutz - PN
Decides whether the relay is prioritised over the analogue output or not.
On: The relay is prioritised over the analogue output.
Off: The analogue output is prioritised over the relay.
Consumer
Under the control behaviour consumer, the relay is activated as soon as the set
power P for the selected on-delay TD was surplus and switches off again after TH
has expired. The test procedure of TD starts again.

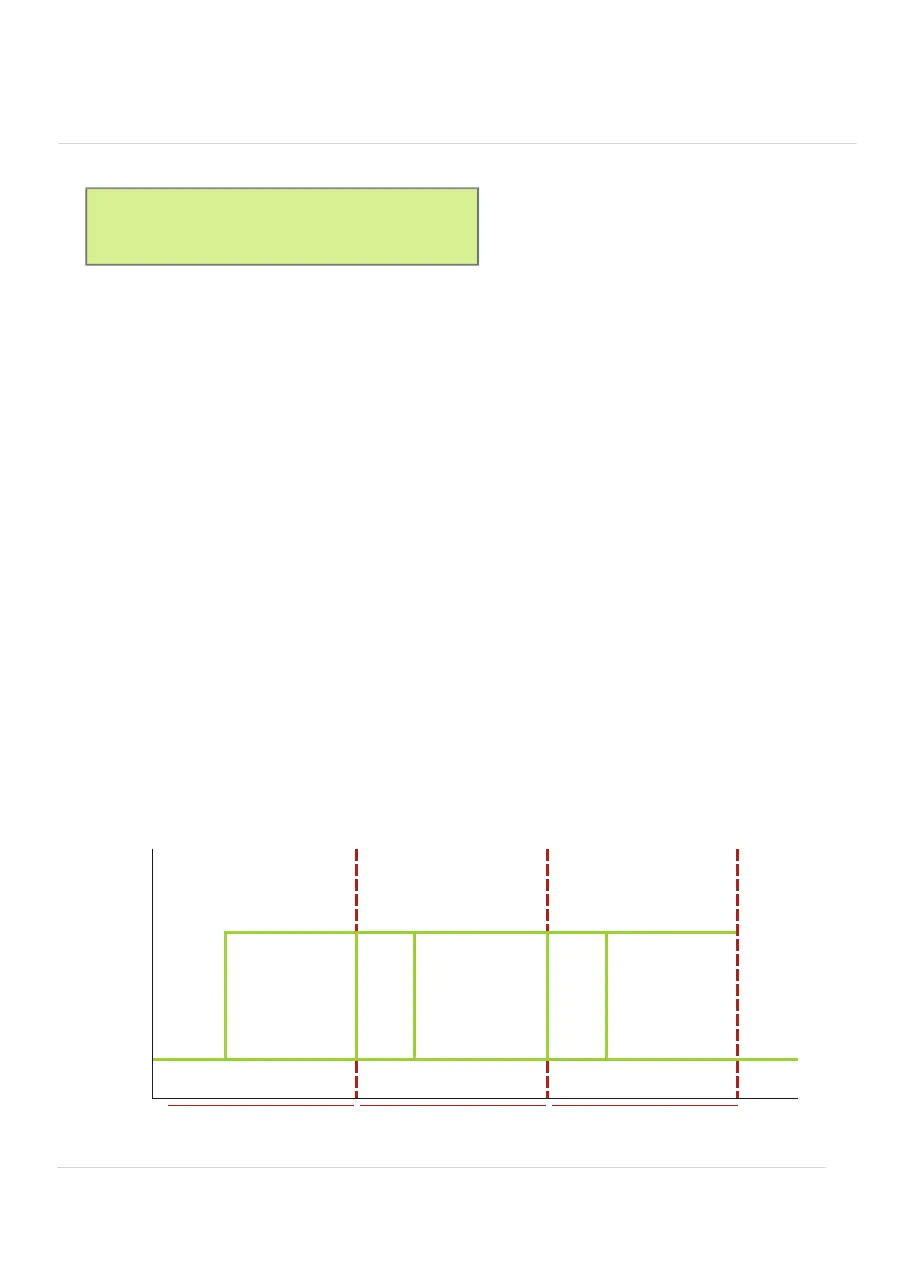

Consumer
Status
relay
ON=1
OFF=0
N N N
