SETTINGS - RELAY SPECIAL FUNCTIONS
r 1 a n a l o g r e l a i s
Z W = E I N P N = E I N
R 1 N = 0 0 0 T D = 0 0 M P
= 0 6 0 0 W T H = 0 0 0 M
R1 - Analogue relay
If the Analogue relay control behaviour is selected, the relay switches as soon as the
analogue monitoring
is
activated. This means whenever the heating element at the
analogue output is no longer consuming power (e.g. thermostat switched off). In
this way, several heating rods can be operated continuously one after the other by
switching the contactor at the output of the power controller (e.g. boiler-buffer
switchover). Only the setting P is required for the relay; the nominal power of the
second heating element must be stored here.

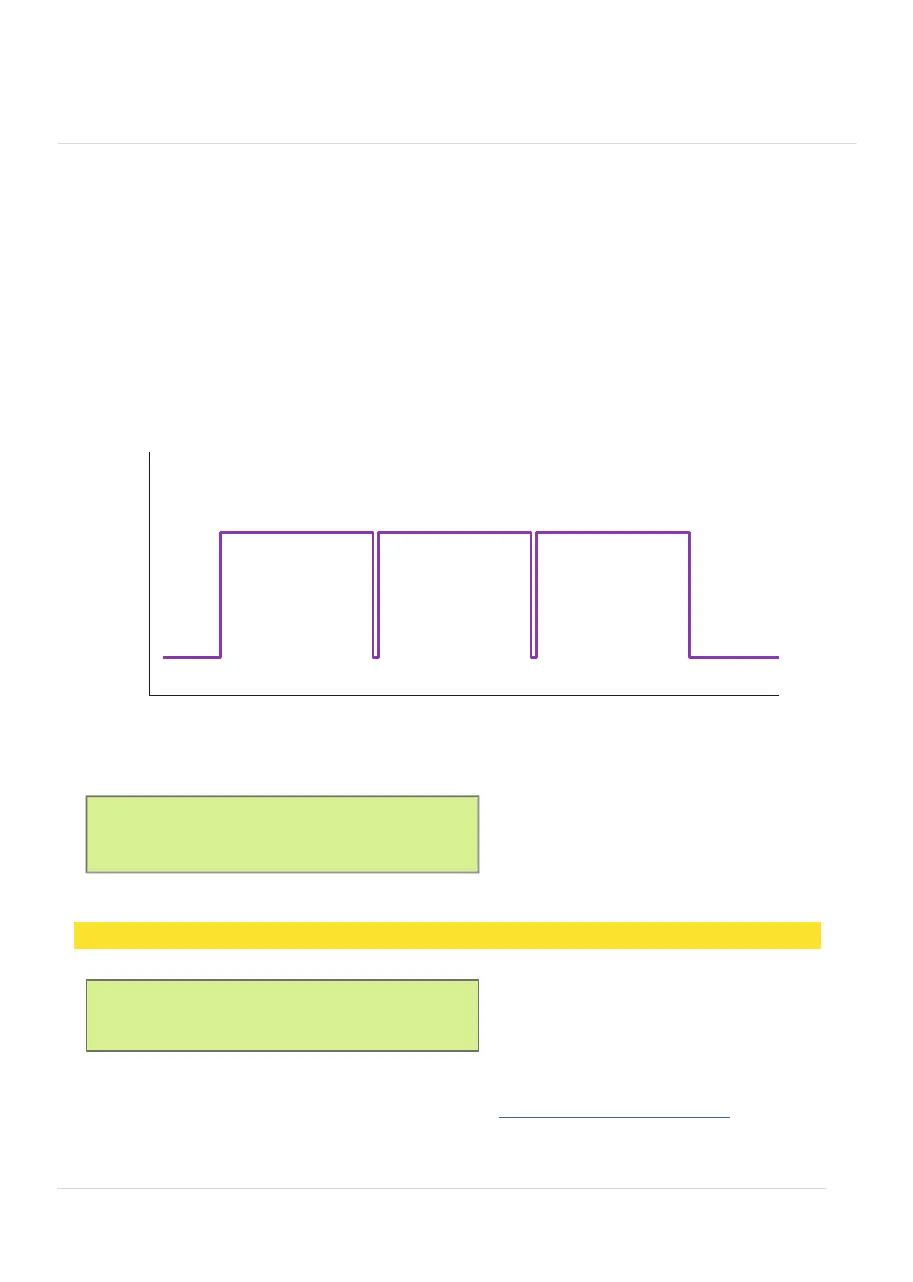

Analogue
relay
Status
relay
ON=1
OFF=0
P= Power heating rod 2
Analogue relay settings
Select the control behaviour of the analogue relay.
NOTE! Heating rod 1 is parameterised at the analogue output.
Set the nominal power of the second heating rod under P.
Complete instructions Analogue relay function at www.smartfox.at/downloads
