HAT700 SERIES ATS CONTROLLER USER MANUAL
HAT700 Series ATS Controller 2018-12-13 Version 1.5 Page 49 of 51

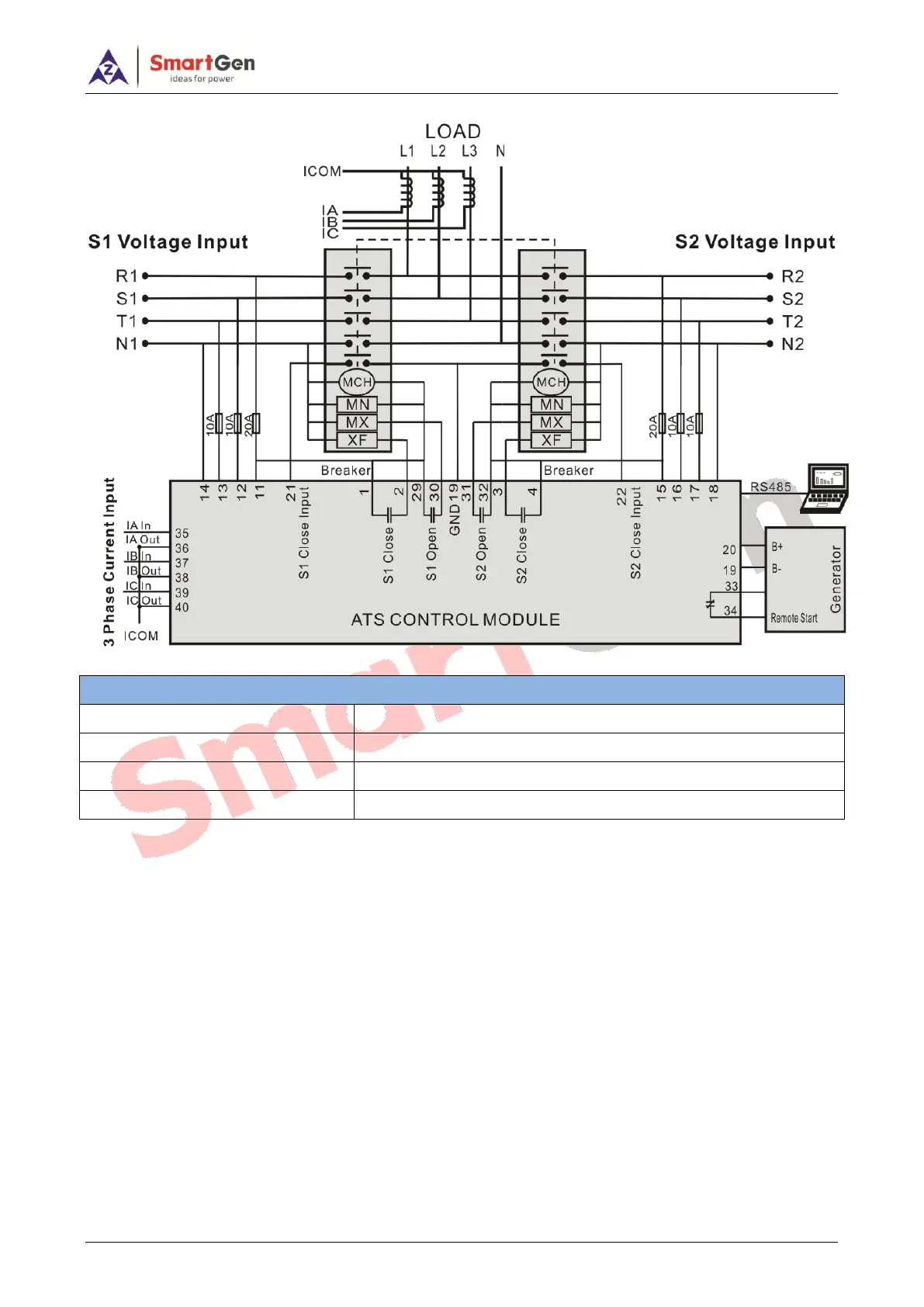

Breaker Wiring Diagram
MCH：Stored Energy Motor；MN：Under Voltage Trip；MX：Open Relay；XF：Close Relay；
Parameters Setting
Switch Type
CB/CC
Aux. Output 4
S1 Open Control
Aux. Output 5
S2 Open Control
Aux. Output 6
Gen Start Output
