HGM501 Genset Controller User Manual Page 12 of 17
No
Parameter
Range
Default
Description
L-5
Curve)
L-5: TE5 (Mingzhihui SGD_NPT
Sensor)
Select this according to the used
sensor.
8
Generator
temperature
sensor type
L-0
L-1
L-2
L-3
L-4
L-5
L-0
L-0：Not used
L-1：TG1(SGX Sensor)
L-2：TG2(SGD Sensor)
L-3：TG3(PT100 Sensor)
L-4：TG4(See TE4/TG4 Sensor
Curve)
L-5: TG5 (Mingzhihui SGD_NPT
Sensor)
Select this according to the used
sensor.
Remark:
1) Parts of parameters only can be configured via PC software, e.g. digital input port1.
2) AC system selected "Double Rated Volts" means generator can output two kinds of rated voltage.
TE4/TG4 sensor curve as bellow,

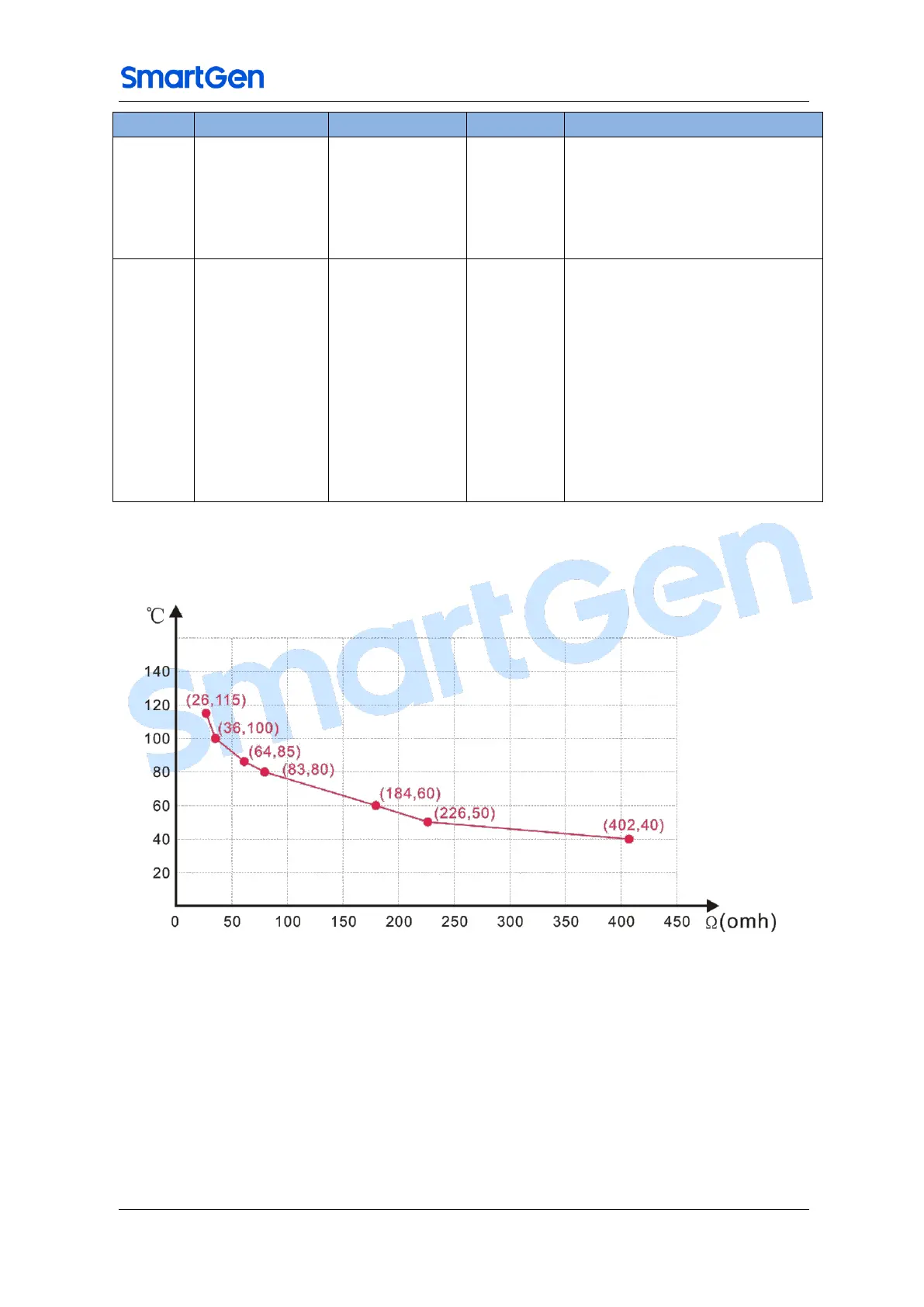

Fig.3 – TE4/TG4 Sensor Curve
