HGM6100K Series Automatic Generator Module
HGM6100K Series Automatic Generator Module ISSUE 2011-04-12 Version 1.6 Page 27 of 31
the operation situation of engine and the voltage and frequency of the AC
generator. If there is abnormal, stop the generator, then check connections of
each part according to this handbook;
g. Select automatic state through front panel, then switch on the mains voltage,
the controller switches over ATS (if it exist) to mains on load after pass through
the mains normal delay, after cooling time, and then shut down to go into
standby state until the mains is abnormal again;
h. After the mains is abnormal again, the Generator will automatically crank into
normal operation state, and then close generator relay, control the ATS to
switch transfer to generator on load. If the situation is not same as described
above, check the connection of control part of the ATS according to this
handbook;
i. If there are other questions, please contact the technical personnel of
Smartgen immediately.
11 TYPICAL APPLICATION

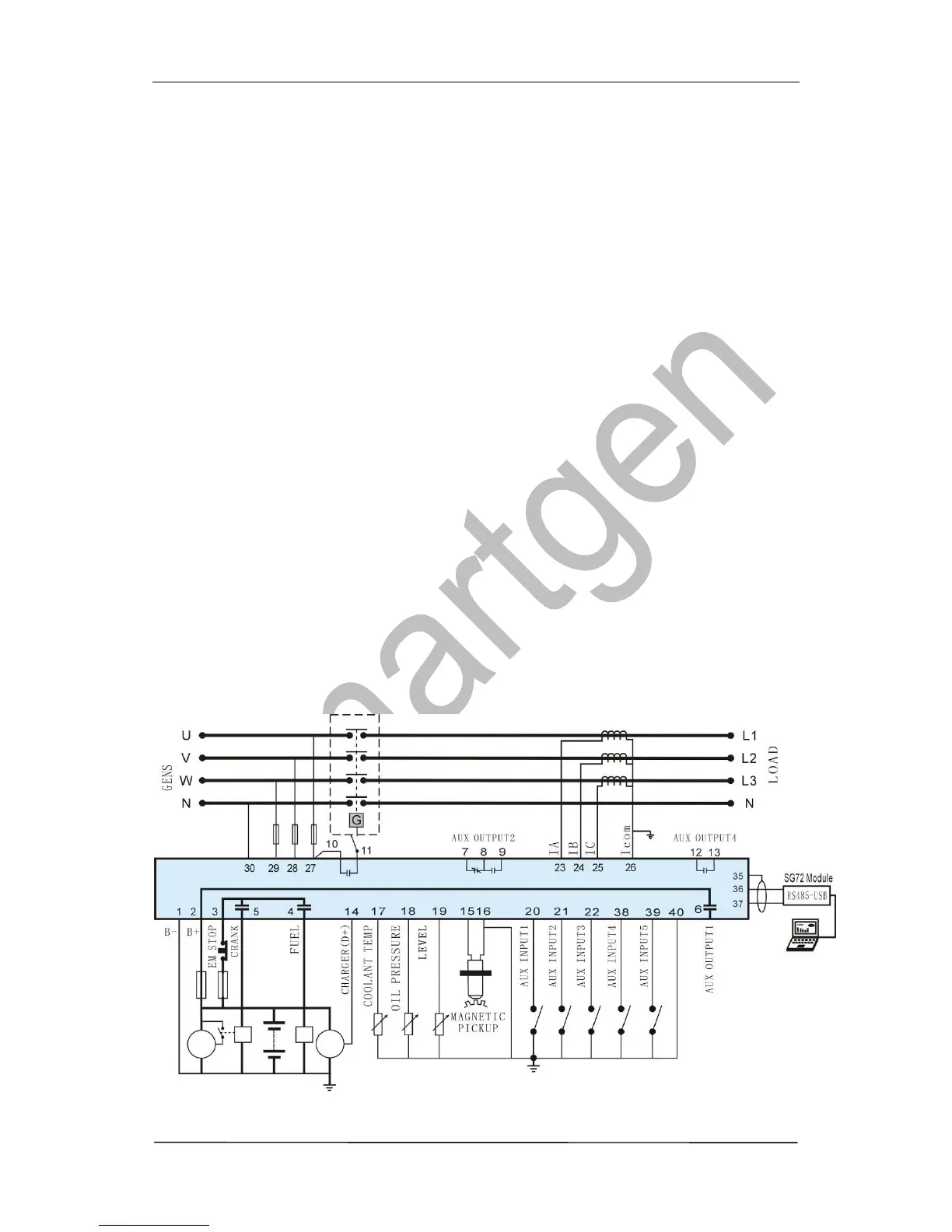

HGM6110KC Typical wiring diagram
To Next Page
