-21-
No.EX##-OMN0036

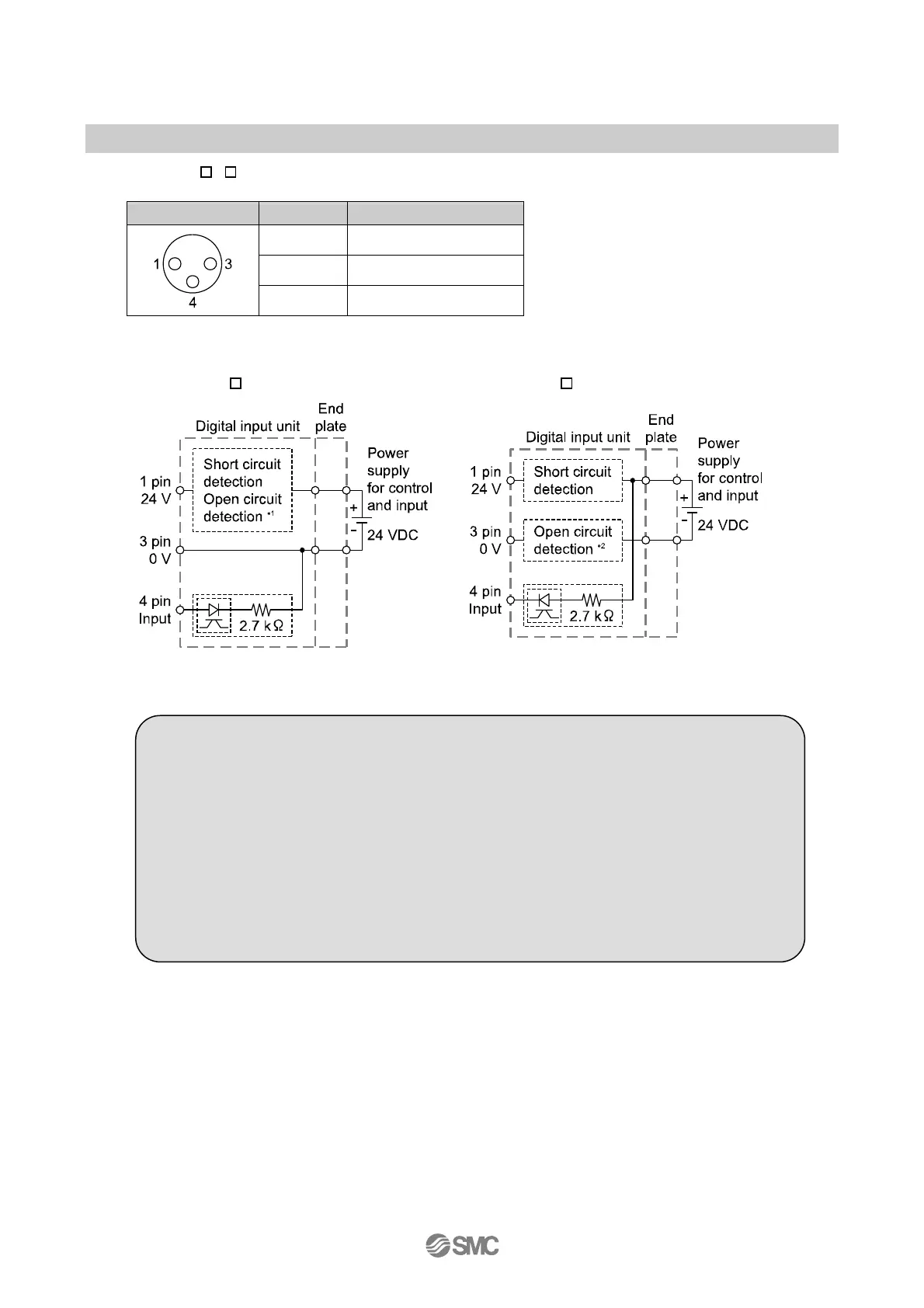

(2)EX600-DX C
•Connector pin assignment
Configuration Pin number Signal name
1 24 V (Control and input)
3 0 V (Control and input)
4 Input
•Circuit diagram
•EX600-DXPC •EX600-DXNC
∗1: Only for EX600-DXPC1. ∗2: Only for EX600-DXNC1.
●Precautions for handling
Be sure to fit a seal cap on any unused connectors. Proper use of the seal cap enables the
enclosure to achieve IP67 specification.
Note the following points when using the open circuit detection:
•The 2 wire type input device cannot be correctly detected if its leakage current is 0.5 mA or
less while the equipment is in the OFF state (solid state sensor, etc.) Ensure that all input
device used has a leakage current above 0.5 mA in the OFF state.
•The 3 wire type input device cannot be correctly detected if its current consumption is 0.5 mA or
less.
•The open circuit of input signals cannot be detected.
•Refer to the SI unit Operation Manual of protocol used for setting of the open circuit
detection.
