SMC Networks EX600-DX Series User Manual

-22-
No.EX##-OMN0036
(3)EX600-DX E

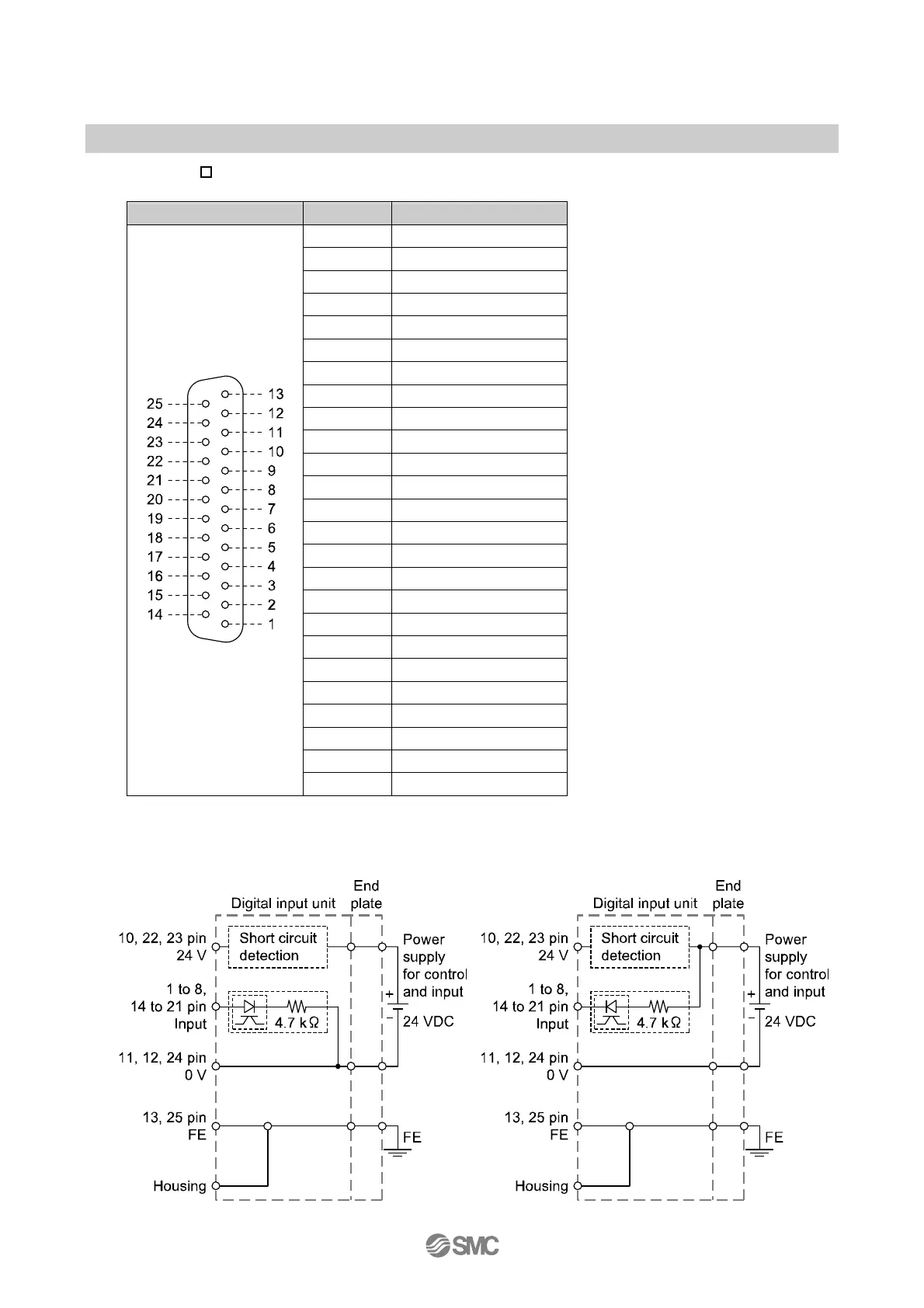

•Connector pin assignment
Configuration Pin number Signal name
1 Input 0
2 Input 2
3 Input 4
4 Input 6
5 Input 8
6 Input 10
7 Input 12
8 Input 14
9 NC
10 24 V (Control and input)
11 0 V (Control and input)
12 0 V (Control and input)
13 FE
14 Input 1
15 Input 3
16 Input 5
17 Input 7
18 Input 9
19 Input 11
20 Input 13
21 Input 15
22 24 V (Control and input)
23 24 V (Control and input)
24 0 V (Control and input)
25 FE
•Circuit diagram
•EX600-DXPE •EX600-DXNE
