(4)EX600-DX F

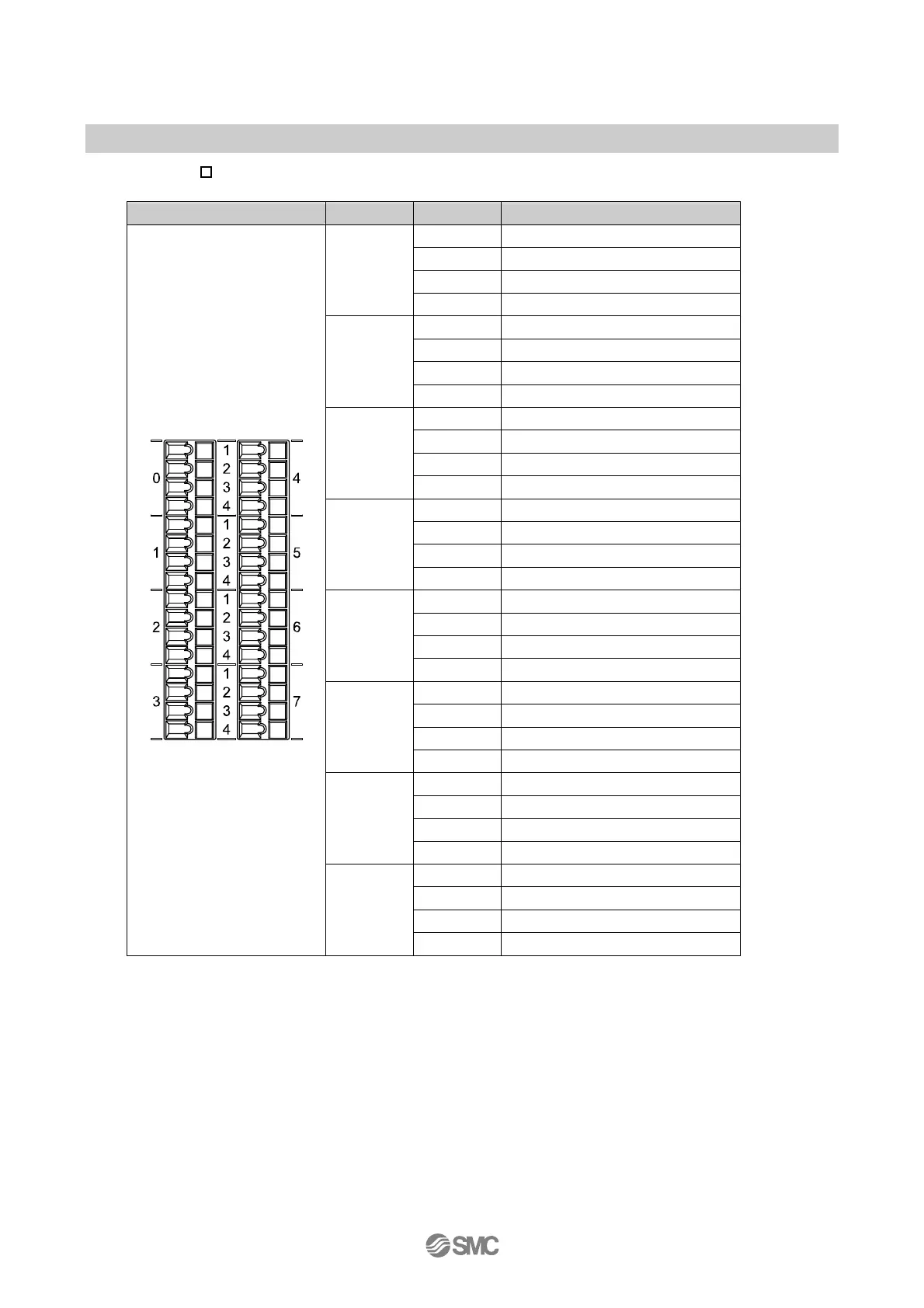

•Connector pin assignment
Configuration Group Pin number Signal name
1 24 V (Control and input) X0
2 Input 0
3 Input 1
0
4 0 V (Control and input) X0
1 24 V (Control and input) X1
2 Input 2
3 Input 3
1
4 0 V (Control and input) X1
1 24 V (Control and input) X2
2 Input 4
3 Input 5
2
4 0 V (Control and input) X2
1 24 V (Control and input) X3
2 Input 6
3 Input 7
3
4 0 V (Control and input) X3
1 24 V (Control and input) X4
2 Input 8
3 Input 9
4
4 0 V (Control and input) X4
1 24 V (Control and input) X5
2 Input 10
3 Input 11
5
4 0 V (Control and input) X5
1 24 V (Control and input) X6
2 Input 12
3 Input 13
6
4 0 V (Control and input) X6
1 24 V (Control and input) X7
2 Input 14
3 Input 15
7
4 0 V (Control and input) X7
