-37-
No.EX##-OMN0036

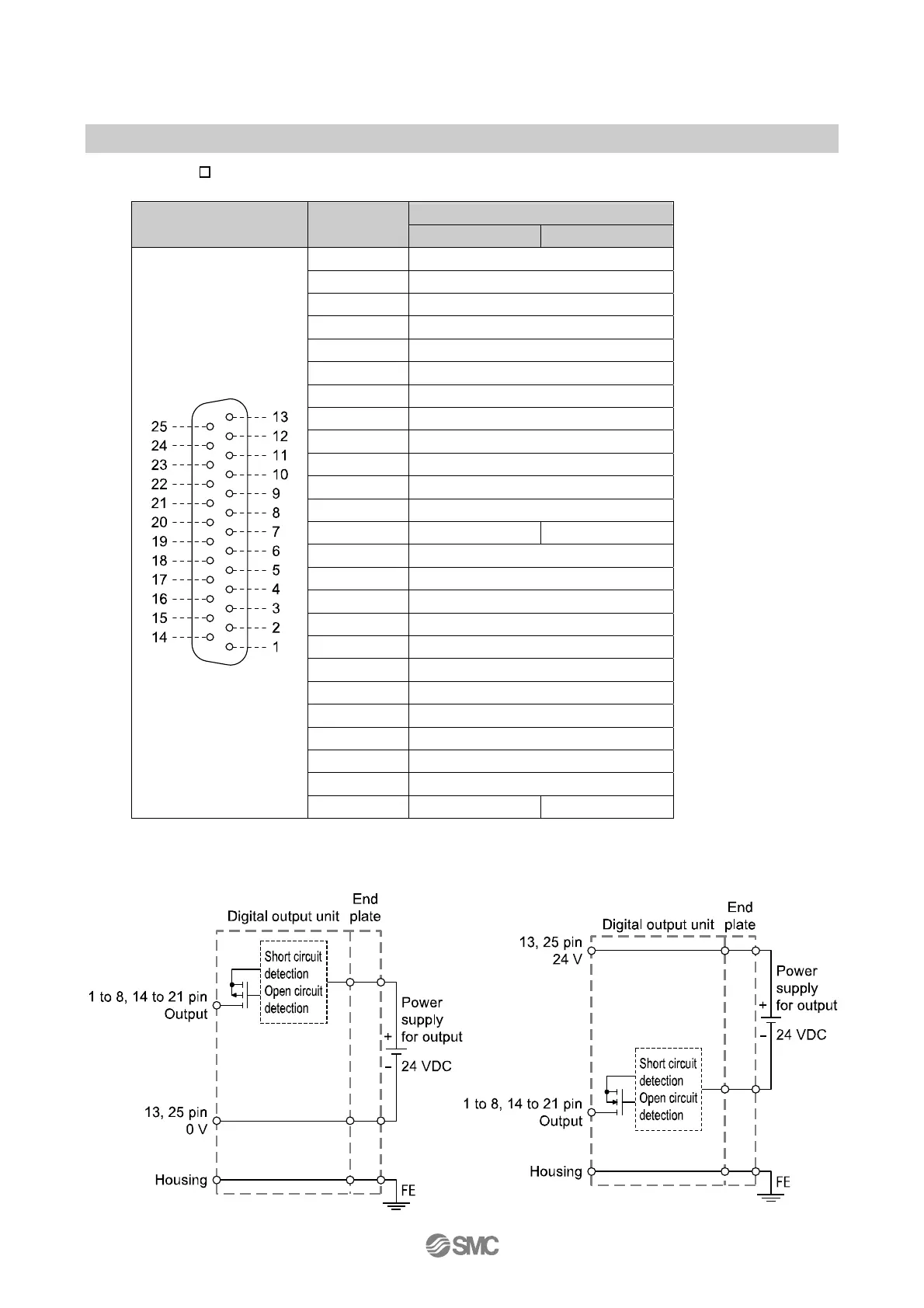

(2)EX600-DY E
•Connector pin assignment
Signal name
Configuration Pin number
EX600-DYPE EX600-DYNE
1 Output 0
2 Output 2
3 Output 4
4 Output 6
5 Output 8
6 Output 10
7 Output 12
8 Output 14
9 NC
10 NC
11 NC
12 NC
13 0 V (Output) 24 V (Output)
14 Output 1
15 Output 3
16 Output 5
17 Output 7
18 Output 9
19 Output 11
20 Output 13
21 Output 15
22 NC
23 NC
24 NC
25 0 V (Output) 24 V (Output)
•Circuit diagram
•EX600-DYPE •EX600-DYNE
