-38-
No.EX##-OMN0036
(3)EX600-DY F

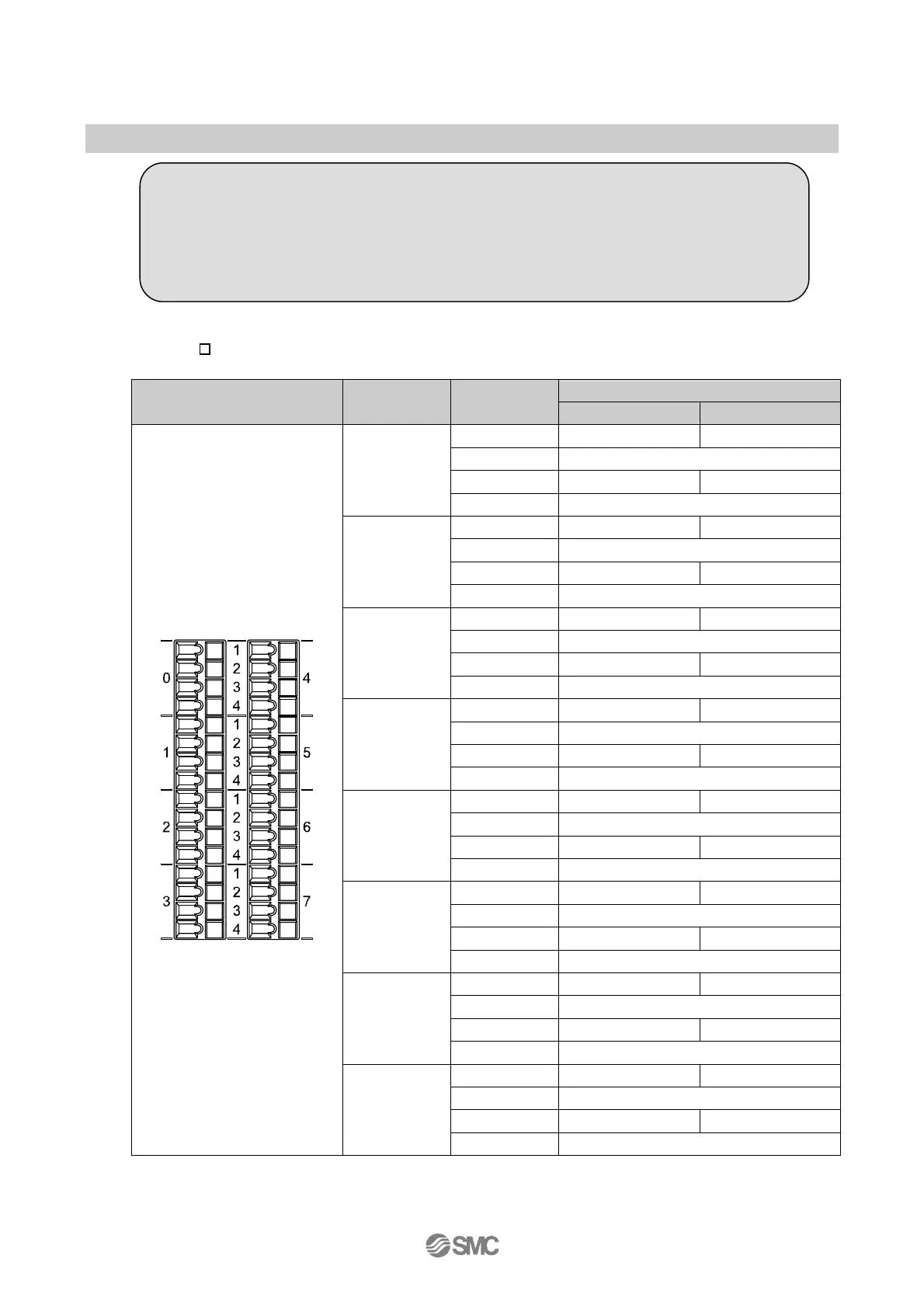

•Connector pin assignment
Signal name
Configuration Group Number
EX600-DYPF EX600-DYNF
1 0 V (Output) 24 V (Output)
2 Output 0
3 0 V (Output) 24 V (Output)
0
4 Output 1
1 0 V (Output) 24 V (Output)
2 Output 2
3 0 V (Output) 24 V (Output)
1
4 Output 3
1 0 V (Output) 24 V (Output)
2 Output 4
3 0 V (Output) 24 V (Output)
2
4 Output 5
1 0 V (Output) 24 V (Output)
2 Output 6
3 0 V (Output) 24 V (Output)
3
4 Output 7
1 0 V (Output) 24 V (Output)
2 Output 8
3 0 V (Output) 24 V (Output)
4
4 Output 9
1 0 V (Output) 24 V (Output)
2 Output 10
3 0 V (Output) 24 V (Output)
5
4 Output 11
1 0 V (Output) 24 V (Output)
2 Output 12
3 0 V (Output) 24 V (Output)
6
4 Output 13
1 0 V (Output) 24 V (Output)
2 Output 14
3 0 V (Output) 24 V (Output)
7
4 Output 15
●Precautions for handling
Note the following points when using the open circuit detection:
•This function detects open circuit only when the output is OFF. Therefore if output is turned
ON, open circuit can not be detected.
•Refer to the SI unit Operation Manual of protocol used for setting of the open circuit
detection.
