Configuring the Switch
3-20

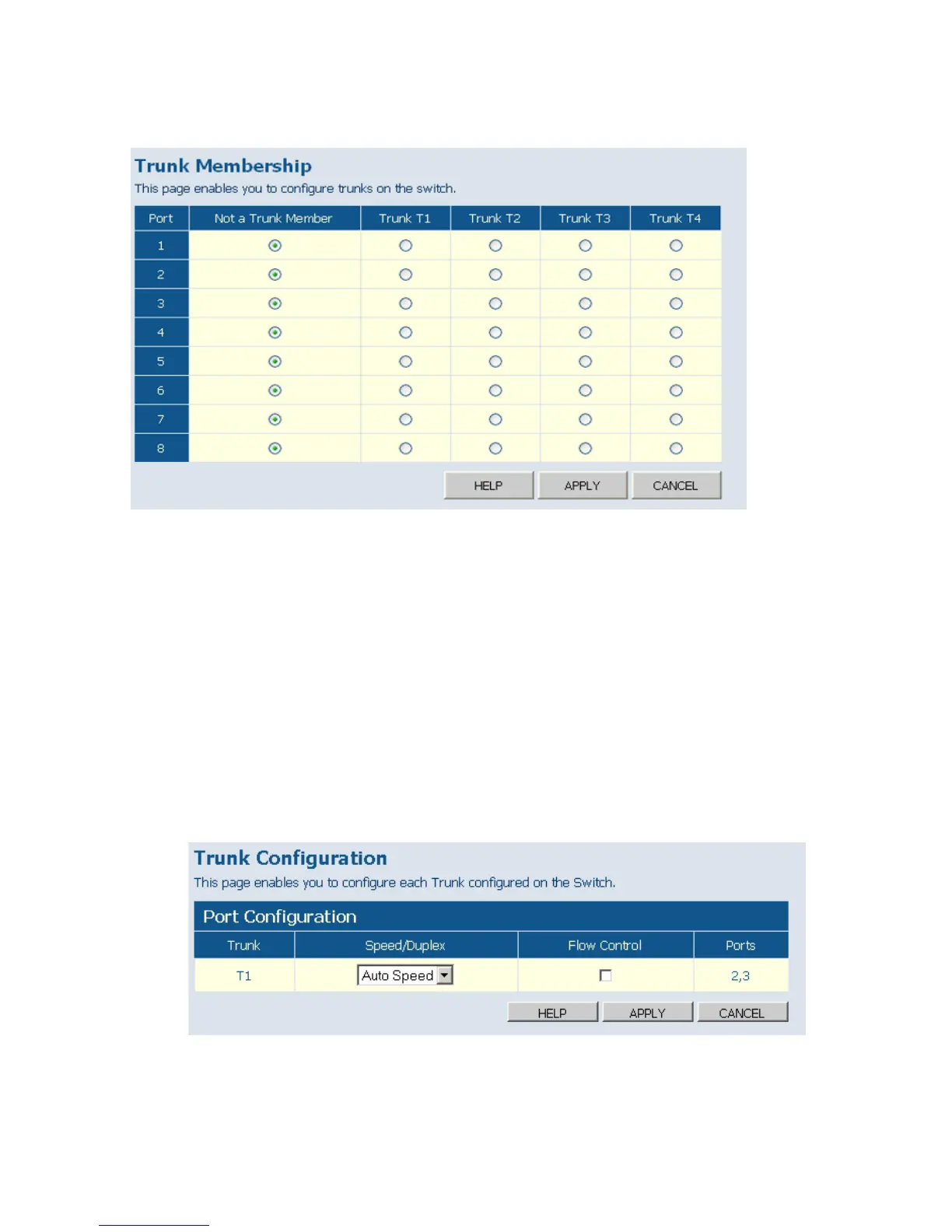

Web – Click TRUNKS, Membership. To assign a port to a trunk, click the required
trunk number, then click APPLY.
Figure 3-17 Trunk Membership
Trunk Configuration
Field Attributes
• Trunk – Indicates trunk identification.
•
Speed/Duplex – Allows you to manually set the port speed and duplex mode for
all ports in the trunk.
• Flow Control – Allows flow control to be enabled or disabled. When the box is
checked, flow control is enabled.
• Ports – Indicates which ports belong to the trunk.
Web – Click TRUNKS, Settings.
Figure 3-18 Trunk Configuration
