Configuring the Switch
3-22
Field Attributes
• Port – The port number.
• Enabled – Enables LACP on the associated port.
• Key Value – Ports in an aggregated link group must have the same LACP port
Key. For a port to be allowed to join an aggregated group, the port Key must be
set to the same value. When set to zero, the port Key is automatically set by the
switch.
Web – Click TRUNKS, Settings.

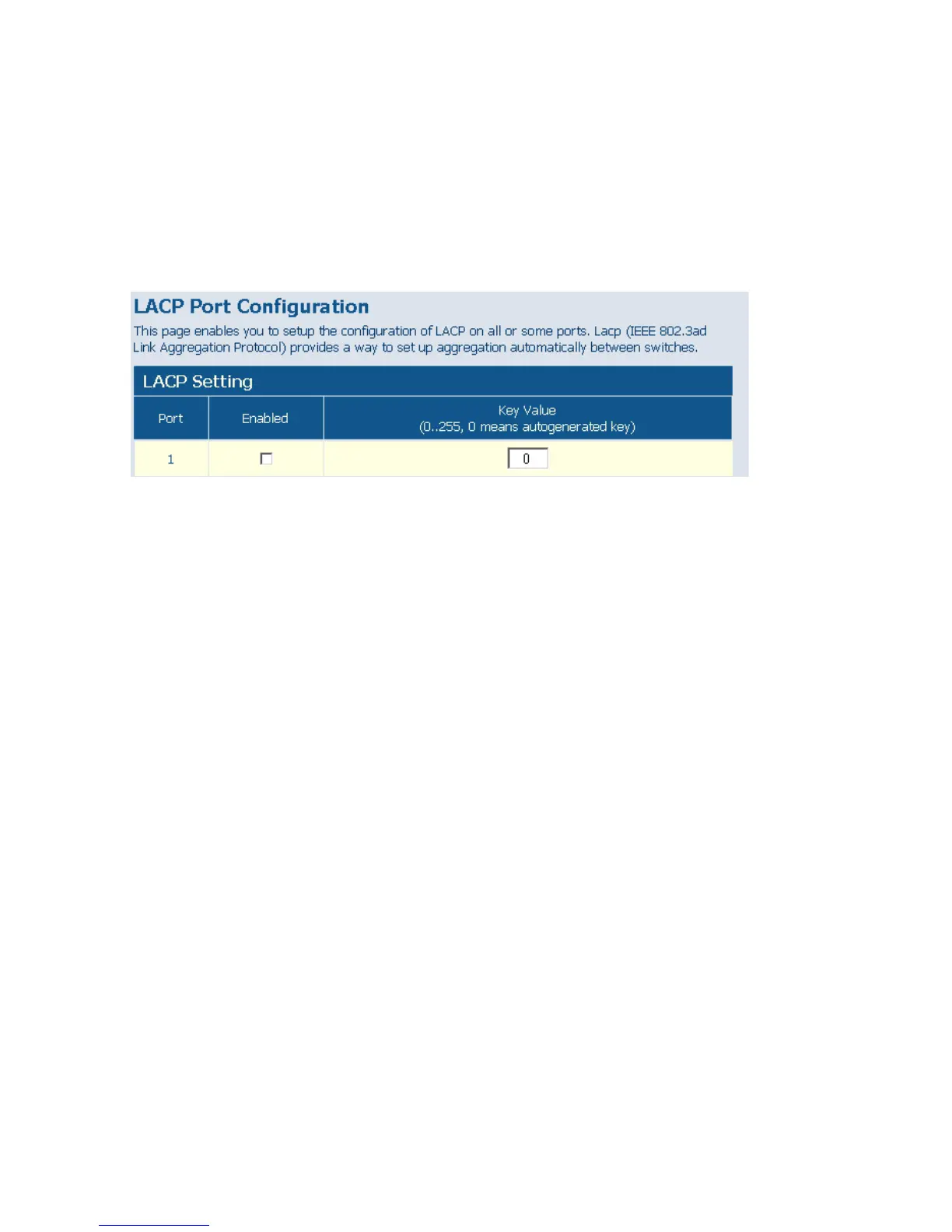

Figure 3-20 LACP Port Configuration
LACP Status
This page displays the LACP status of the switch.
LACP Aggregation
Shows the status of each port. The LACP Aggregation table has one row for each
LACP group. Normal means no LACP group is active. For active LACP groups, a
new row is created from which the status of its port members are displayed. Status
of each port is indicated by a colored box, which use color and number to
differentiate status.
Aggregation Information
Shows aggregation information for each LACP group.
Field Attributes
• Aggregation Group - The ID number of the LACP group.
• Partner MAC Address - The MAC address of link partner.
• Local Ports Aggregated - Port member list of the local LACP group.
• Seconds Since Last Change - Time in seconds for the LACP group since last
setup.
