SMC Networks ITVX Series User Manual

- 8 -

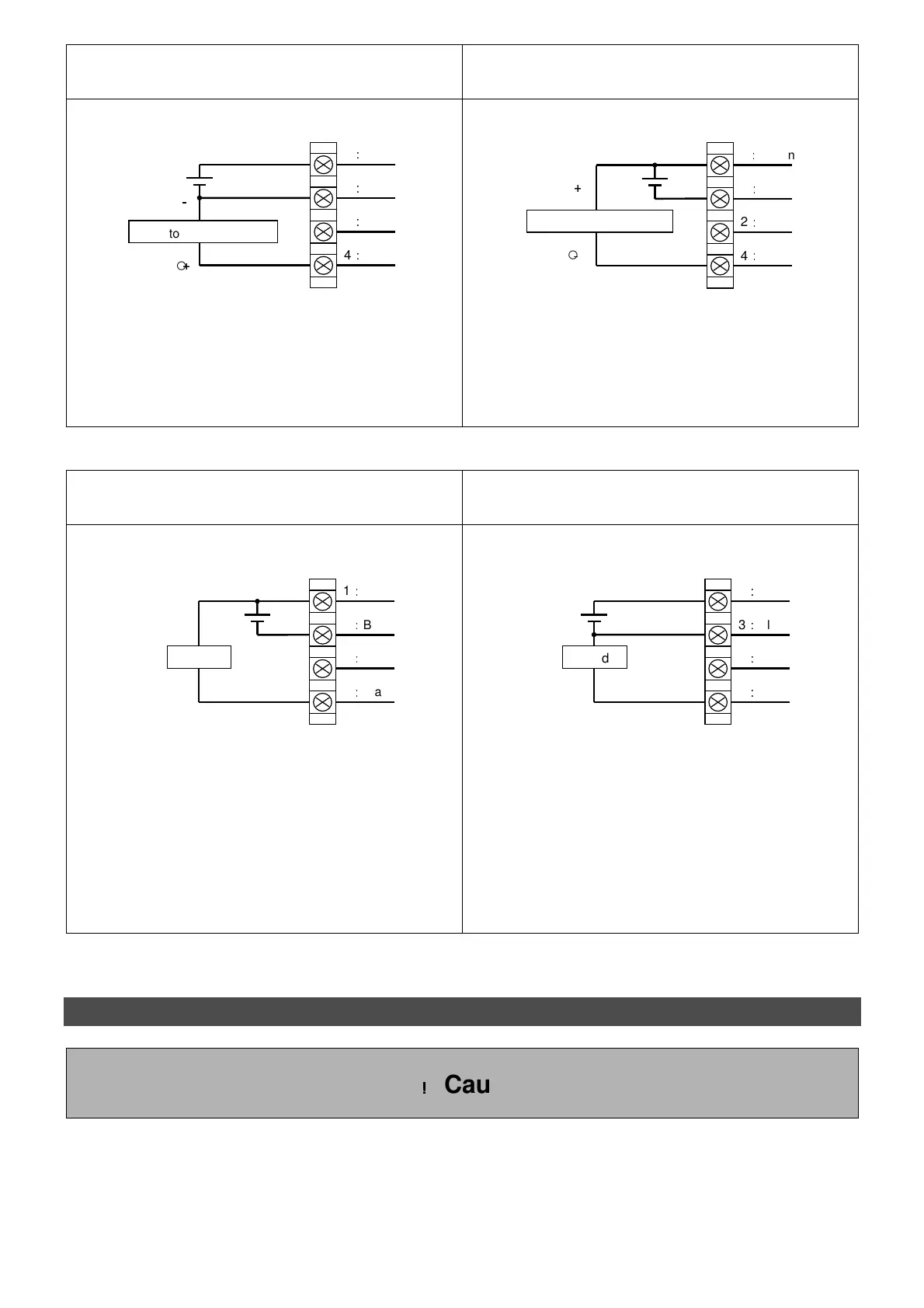

Analogue output - Voltage type
（ITVX2030-※1）
Analogue output - Current (sink) type
（ITVX2030-※4）
Only use equipment with a minimum load
impedance of 100 kΩ.
Only use equipment with a maximum load
impedance of 250 Ω.
Switch output - NPN type
（ITVX2030-※2）
Switch output - PNP type
（ITVX2030-※3）
When a current of approx.150 mA or more is
applied, the over current circuit will operate,
“Er.5” will be displayed and the operation will
stop.
Please install a load to give an output current
of 80 mA or less.
When a current of approx.150 mA or more is
applied, the over current circuit will operate,
“Er.5” will be displayed and the operation will
stop.
Please install a load to give an output current
of 80 mA or less.
Setting method
△
△△
△
, ！
！！
！ Caution
Monitor output current
1 ： Brown
3 ： Blue
2 ： White
4 ： Black
○
+
○
-
Monitor output voltage
1 ： Brown
3 ： Blue
2 ： White
4 ： Black
○
+
○
-
Load
1 ： Brown
3 ： Blue
2 ： White
4 ： Black
Load
1 ： Brown
3 ： Blue
2 ： White
4 ： Black
