- 4 -
2-3. Pull out the dust seal band to the opposite side of the motor.
2-4. To put the dust seal band back, mount the dust seal band in reversed order of 2-1 to 2-3.
For the replacement of the dust seal band and seal band stopper assembly, order
replacement parts referring to the spare parts list in the attachment.
3. Applying additional grease on the guide.
3-1. Remove the dust seal band. ( Refer to Chapter 2 Mounting and removal of the dust
seal band and seal band stopper assembly)
3-2. Apply grease to the entire guide groove using a spatula (Fig. 3-1).
Slowly slide the table by hand so that the grease is applied to the inside of the guide.
Be careful not to smear the belt with grease.
After replenishment, perform several test runs to allow the grease to spread evenly.
* For lubrication, use lithium grease No. 2.
When ordering the grease from SMC, please order a grease pack: GR-S-.
* Not applicable for clean series, secondary battery or special product. Please contact
SMC.
Table.3-1 Grease package (Lithium grease No. 2) A
Refer to the
above figure
3-3. Mount the dust seal band. ( Refer to Chapter 2 Mounting and removal of the dust seal
band and seal band stopper assembly)
Direction to pull the dust seal band to remove
Applicable model: LEFS/LEFB
This fig. shows belt Type

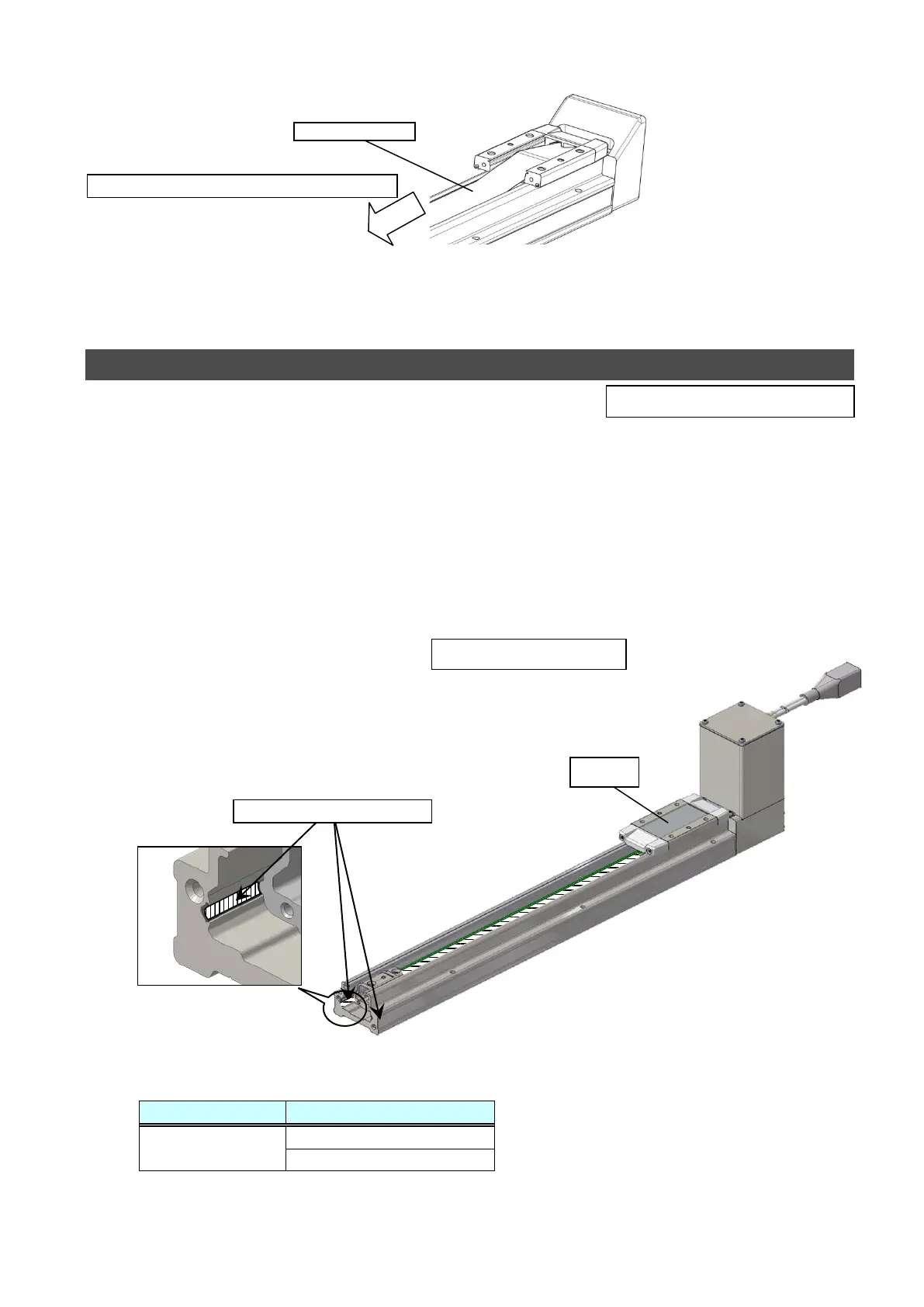

Fig. 3-1 Position for application of grease
Apply grease here (2 places)
To Next Page
