- 3 -
2.) If no locking adhesive is applied to the bolts or screws, take a countermeasure against
loosening.
3) Refer to the spare parts list in the separate sheet for the part numbers and details of the
spare parts.
Japanese version: LEF-MM01101, LEF-MM01201
English version: LEF-MM01301, LEF-MM01401
4). It is recommended replacing the motor as a motor assembly.
2. Mounting and removal of the dust seal band and seal band stopper assembly
2-1. Loosen the retaining screws for the band stopper.
Size Screw type Screw size
Tightening torque
+/- 10% [Nm]
Qty.
16
Round head combination
screw
M2.5x5
0.36
4
25
M3x6
0.63
32
M3x6
40
M3x6
2-2. Remove the seal band stopper at the opposite side of the motor, and pull out the
blanking plate.
Size Screw type Screw size
Tightening torque
+/- 10% [Nm]
Qty.
16
Cross recessed round
head screw
M2.5x16
0.36
2
25
M3x20
0.63
32
M4x30
0.76
40
M4x35

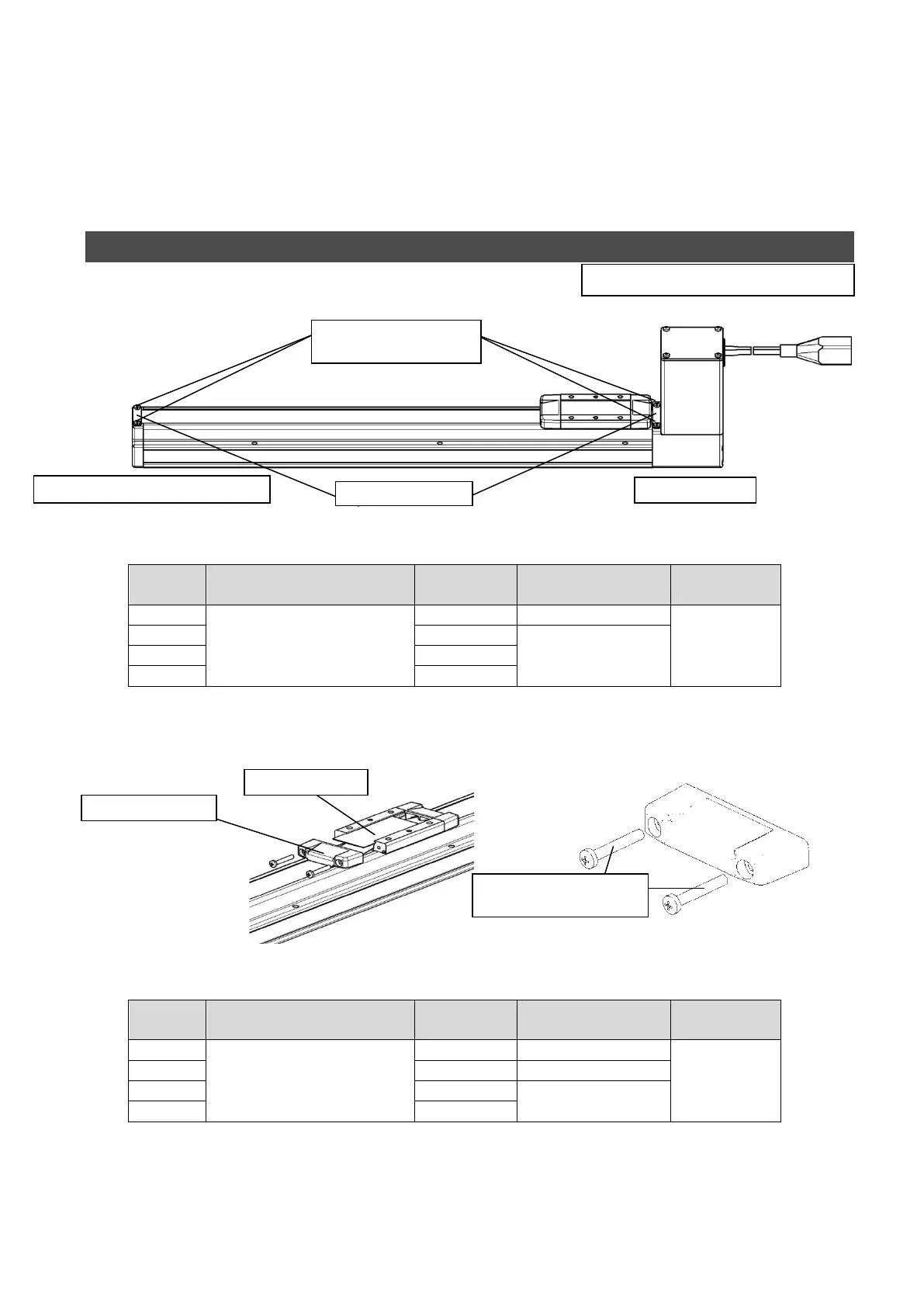

Applicable model: LEFS/LEFB
Opposite side of the motor
Motor side
Band stopper
Table.2-1 Band stopper fixing screws
Fig.2-1 Seal band stopper assembly
Seal band stopper
Table.2-2 Seal band stopper fixining screws
Retaining screws for the
band stopper
Blanking plate
Cross recessed round
head screw
