SMC Networks LEF Series Maintenance Manual

- 15 -

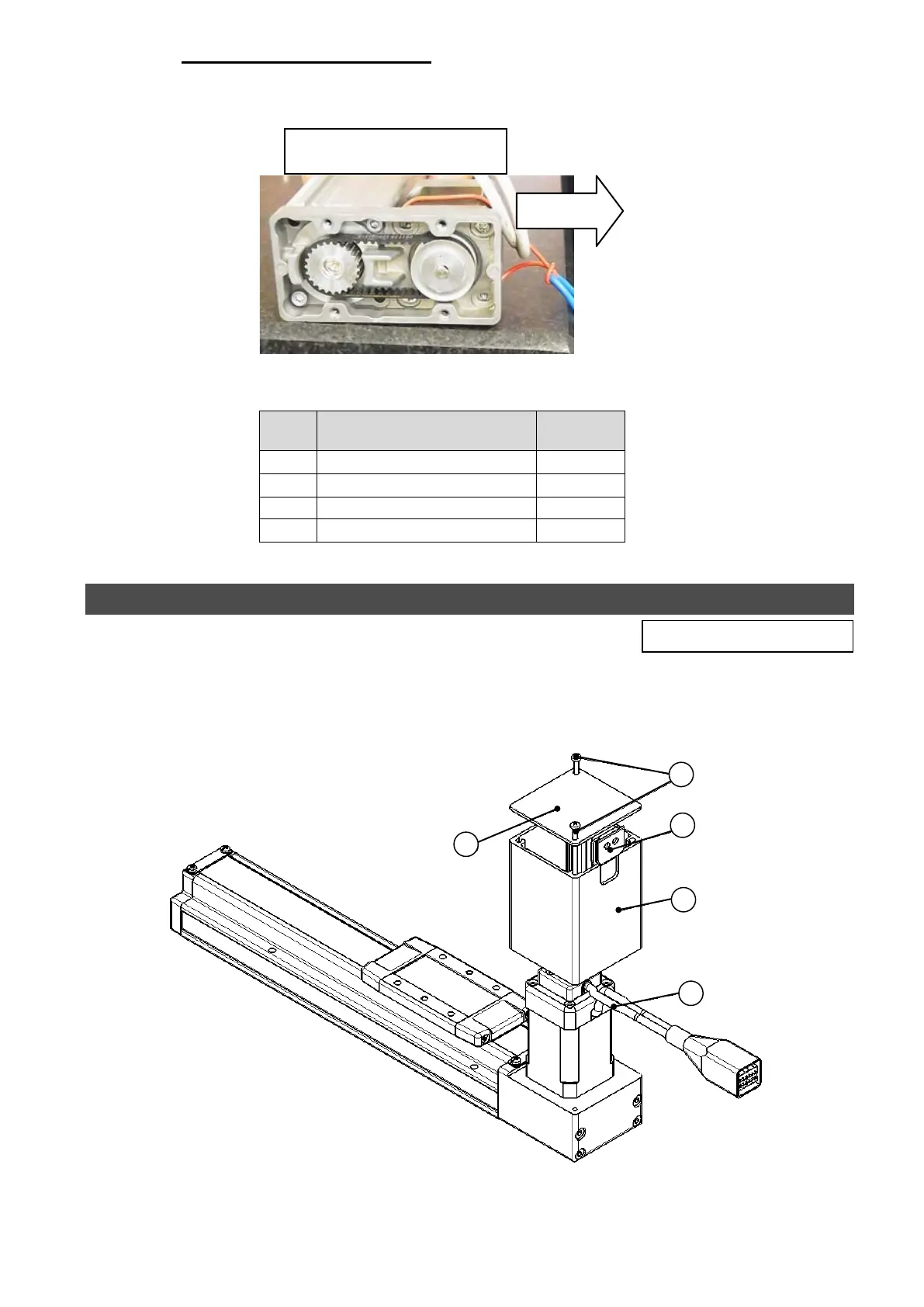

Adjustment using tensile force
Pull the base of the motor with a cord or a long cable tie. With tensile force
adjusted (Table.6-7), tighten the screws which secure the motor.
7. Mounting/ removal of the motor and peripheral equipments (Belt type)
7-1. Remove the motor cover.
7-1-1. Step motor (Servo /24VDC) and servo motor (24VDC)
After removing the screws (1) and the end cover (2), remove the cable (4) from the
rubber bushing (3), and then remove the motor cover (5).
Tension adjustment
example
Tensile
force
Table.6-7 Replacement Belt part No. and tensile force
Size Replacement Belt part No.
Tensile
force [N]
16
LE-D-6-1
9.8
25
LE-D-6-2
19.6
32
LE-D-6-3
49.0
40
LE-D-6-4
98.1
Applicable model: LEFB
2
1
3
5
4
