7-1-2. AC Servo Motor

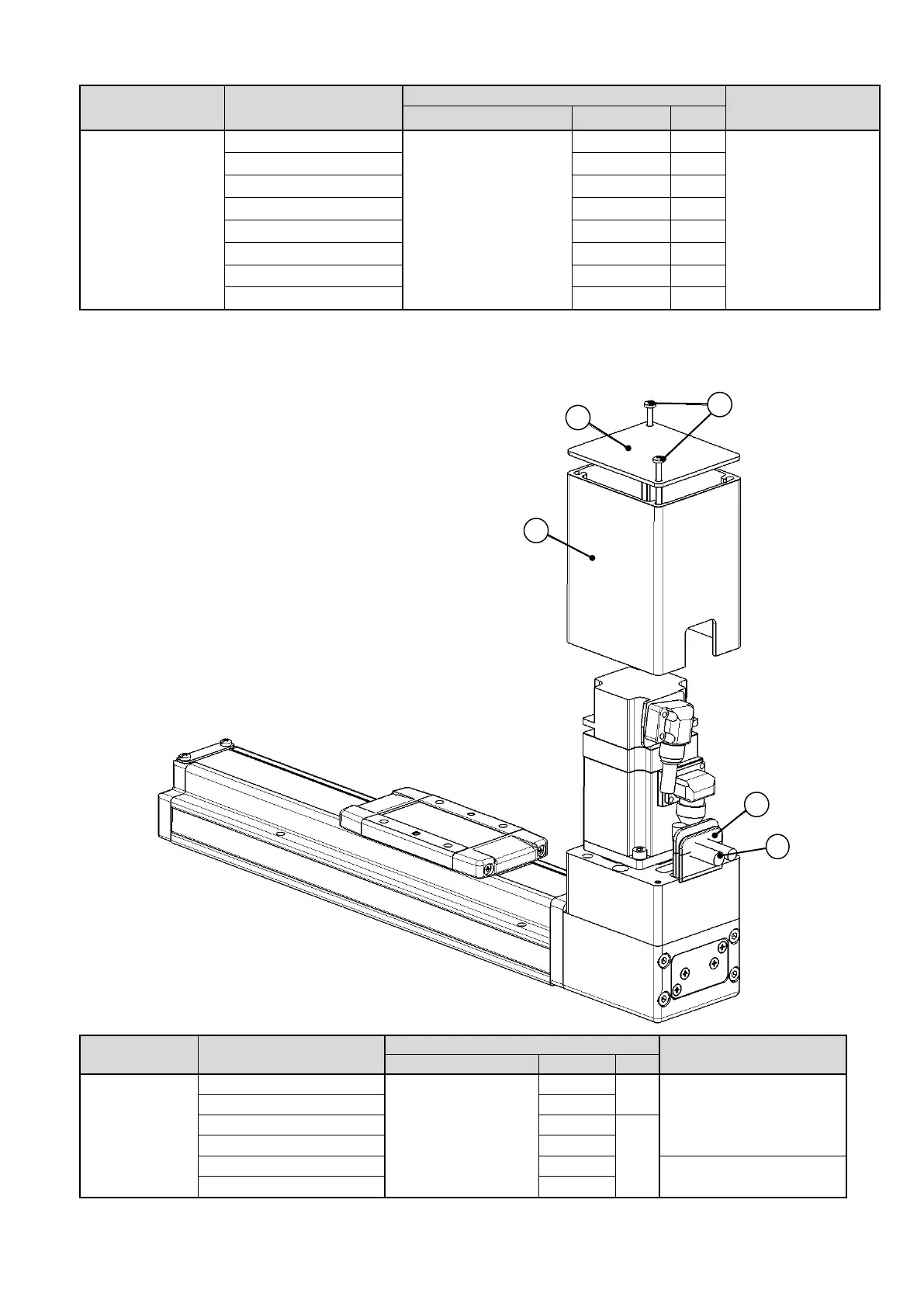

Remove the screw(1). Hold the rubber bushing(3) while removing the end cover (2)
and motor cover (5) from the rubber bushing. Then, remove the rubber bushing from
the cable (4).
For a replacement of motor cover, order the part referred in the spare parts list in the
attachment.
Part to be
tightened
Models
Screw
Tightening torque
+/- 10% [Nm]
Type
Size
Qty.
(2) End cover
LEFB16∗T-∗
(1) Cross recessed
round head screw
M3x70
2
0.32
LEFB16∗T-∗B
M3x120
2
LEFB25T-∗
M3x85
2
LEFB25T-∗B
M3x130
2
LEFB25SAT-∗
M3x70
2
LEFB25AT-∗B
M3x110
2
LEFB32T-∗
M3x100
4
LEFB32T-∗B
M3x145
4
Part to be
tightened
Models
Screw
Tightening torque +/-
10% [Nm]
Type
Size
Qty.
(2) End cover
LEFB25∗(S/T/V)∗S-∗
(1) Cross recessed
round head screw
M3x95
2
0.32
LEFB25 (S/T/V)∗S-∗B
M3x135
LEFB32 (S/T/V)∗S-∗
M3x100
4
LEFB32∗(S/T/V)∗S-∗B
M3x125
LEFB40∗(S/T/V)∗S-∗
M4x120
0.75
LEFB40∗(S/T/V)∗S-∗B
M4x150
Table.7-1 Motor cover fixing screws
Table.7-2 Motor cover fixing screws
1
2
5
3
4
