- 21 -
or
Communication
cable
PC
Conversion
unit
PLC
Power supply
24VDC
USB cable
(A-miniB type)
●Controller
位置 速度
100 500
200
1000
50
200
1
2
3
ﾃｽﾄ
ﾃｽﾄ
ﾃｽﾄ
現在位 置
120.3
現在速 度
200
mm
mm/s
動作中
アラー ム
モニタ
設定
位置 速度
100 500
200
1000
50
200
1
2
3
ﾃｽﾄ
ﾃｽﾄ
ﾃｽﾄ
現在位 置
120.3
現在速 度
200
mm
mm/s
動作中
アラー ム
モニタ
設定
●Controller setting kit
(Controller setting soft ware,
Communication cable,
Conversion unit and
USB cable are included.)
Part No:LEC-W2
Controller
setting soft ware

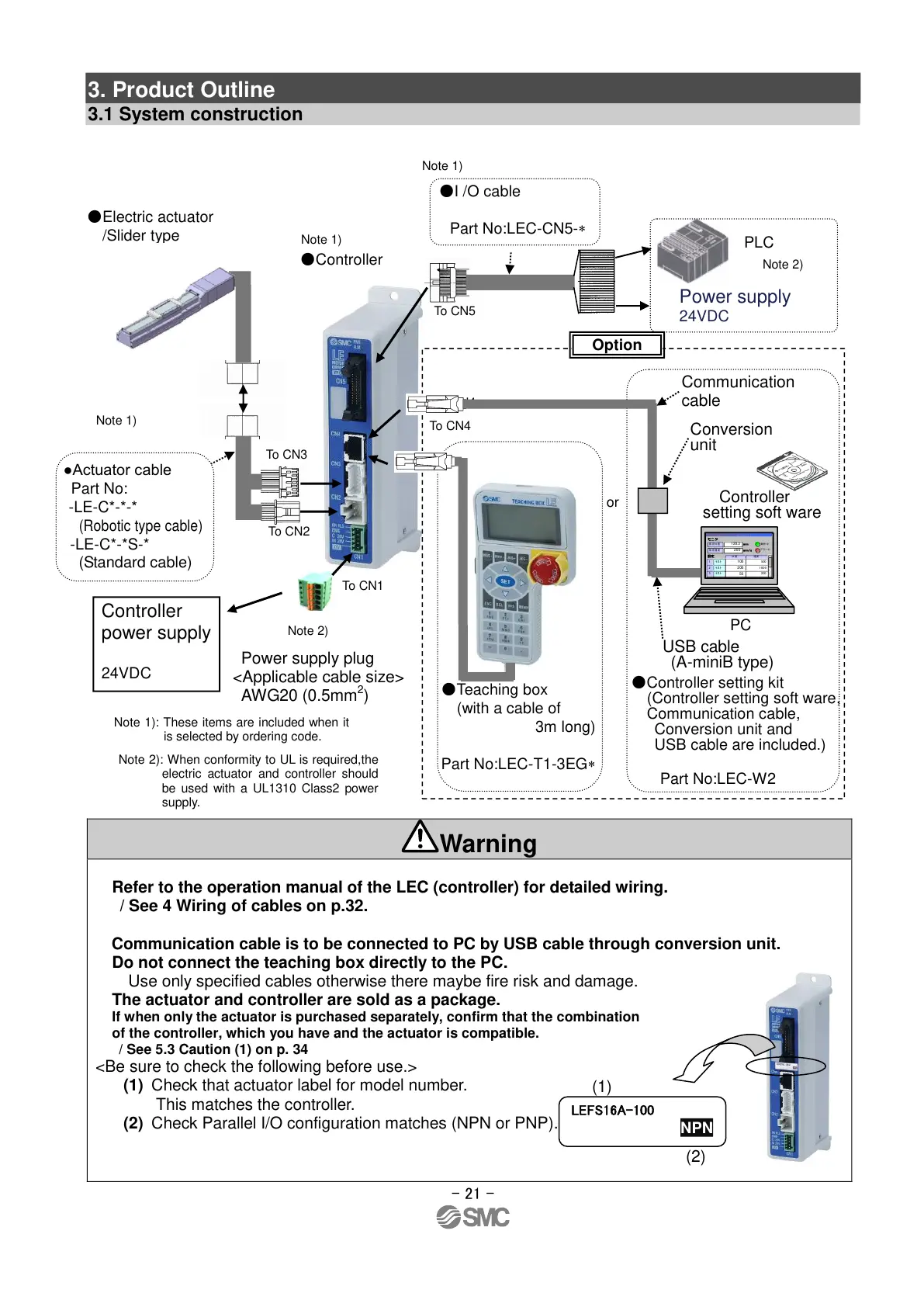

3. Product Outline
3.1 System construction
Warning
Refer to the operation manual of the LEC (controller) for detailed wiring.
/ See 4 Wiring of cables on p.32.
Communication cable is to be connected to PC by USB cable through conversion unit.
Do not connect the teaching box directly to the PC.
Use only specified cables otherwise there maybe fire risk and damage.
The actuator and controller are sold as a package.
If when only the actuator is purchased separately, confirm that the combination
of the controller, which you have and the actuator is compatible.
/ See 5.3 Caution (1) on p. 34
<Be sure to check the following before use.>
(1) Check that actuator label for model number.
This matches the controller.
(2) Check Parallel I/O configuration matches (NPN or PNP).
●I /O cable
Part No:LEC-CN5-
●Teaching box
(with a cable of
3m long)
Part No:LEC-T1-3EG
Power supply plug
<Applicable cable size>
AWG20 (0.5mm
2
)
To CN5
●Electric actuator
/Slider type
Option
Controller
power supply
24VDC
To CN4
To CN1
To CN2
To CN3
(1)
(2)
LEFS16A-100
NPN
Note 1)
Note 1)
Note 1): These items are included when it
is selected by ordering code.
To CN4
Note 1)
●Actuator cable
Part No:
-LE-C*-*-*
(Robotic type cable)
-LE-C*-*S-*
(Standard cable)
Note 2)
Note 2)
Note 2): When conformity to UL is required,the
electric actuator and controller should
be used with a UL1310 Class2 power
supply.
