I NSTALLING THE S WITCH
3-2
Ethernet Cabling
To ensure proper operation when installing the switches into a network,
make sure that the current cables are suitable for 10BASE-T,
100BASE-TX or 1000BASE-T operation. Check the following criteria
against the current installation of your network:
• Cable type: Unshielded twisted pair (UTP) or shielded twisted pair (STP)
cables with RJ-45 connectors; Category 3 or better for 10BASE-T,
Category 5 or better for 100BASE-TX, and Category 5, 5e or 6 for
1000BASE-T.
• Protection from radio frequency interference emissions
• Electrical surge suppression
• Separation of electrical wires (switch related or other) and
electromagnetic fields from data based network wiring
• Safe connections with no damaged cables, connectors or shields

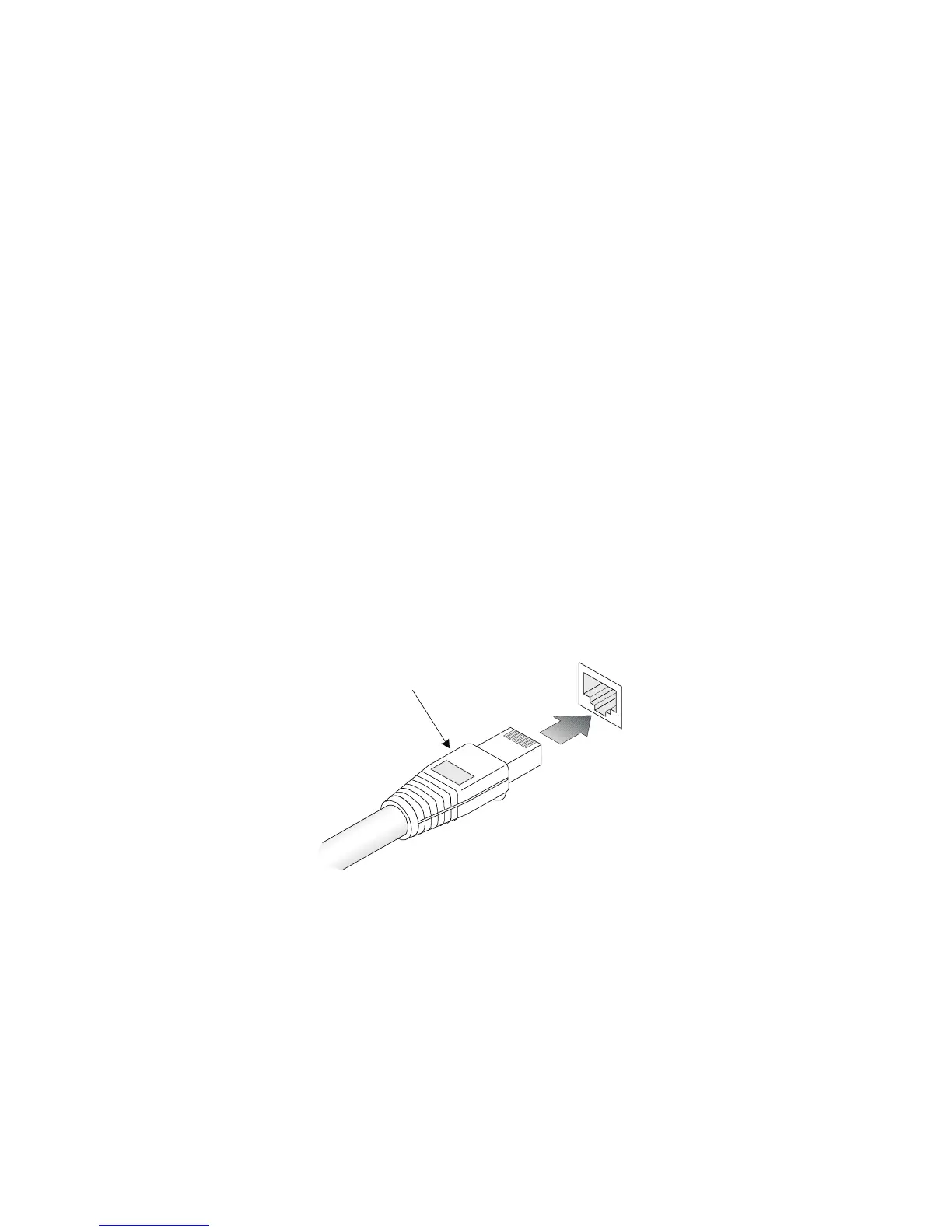

Figure 3-1 RJ-45 Connections
RJ-45 Connector

SMC Networks SMCGS24C-Smart Specifications

General

Ports	24
Layer	Layer 2
Switching Capacity	48 Gbps
MAC Address Table	8K
Forwarding Rate	35.7 Mpps
Jumbo Frame Support	Yes
Packet Buffer Memory	512 KB
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 90% (non-condensing)
Power Consumption	20W
Jumbo Frame Size	9216 Bytes
Management	Web-based management
Features	QoS, VLAN, IGMP Snooping, Port Mirroring
Storage Temperature	-40°C to 70°C
