5-33
DSCP
Packets are prioritized using the DSCP (Differentiated Services Code
Point) value.
The Differentiated Services Code Point (DSCP) is a six bit field that is
contained within an IP (TCP or UDP) header. Six bits allows the DSCP
field to take any value in the range 0 - 63 inclusive. When QoS Mode is set
to DSCP, the DSCP Configuration table appears which allows a priority
(normal or high) to be set for each of the DSCP values.
You can use the Prioritize Traffic drop-down list to quickly set the values
in the DSCP Configuration table. Select All Normal Priority to set all
values to normal priority or select All High Priority to set all values to high
priority. Use Custom if you want to set each value individually.
Web – Click QOS, Settings. In QoS Mode, select QoS Diabled, 802.1p, or
DSCP to configure the related parameters.

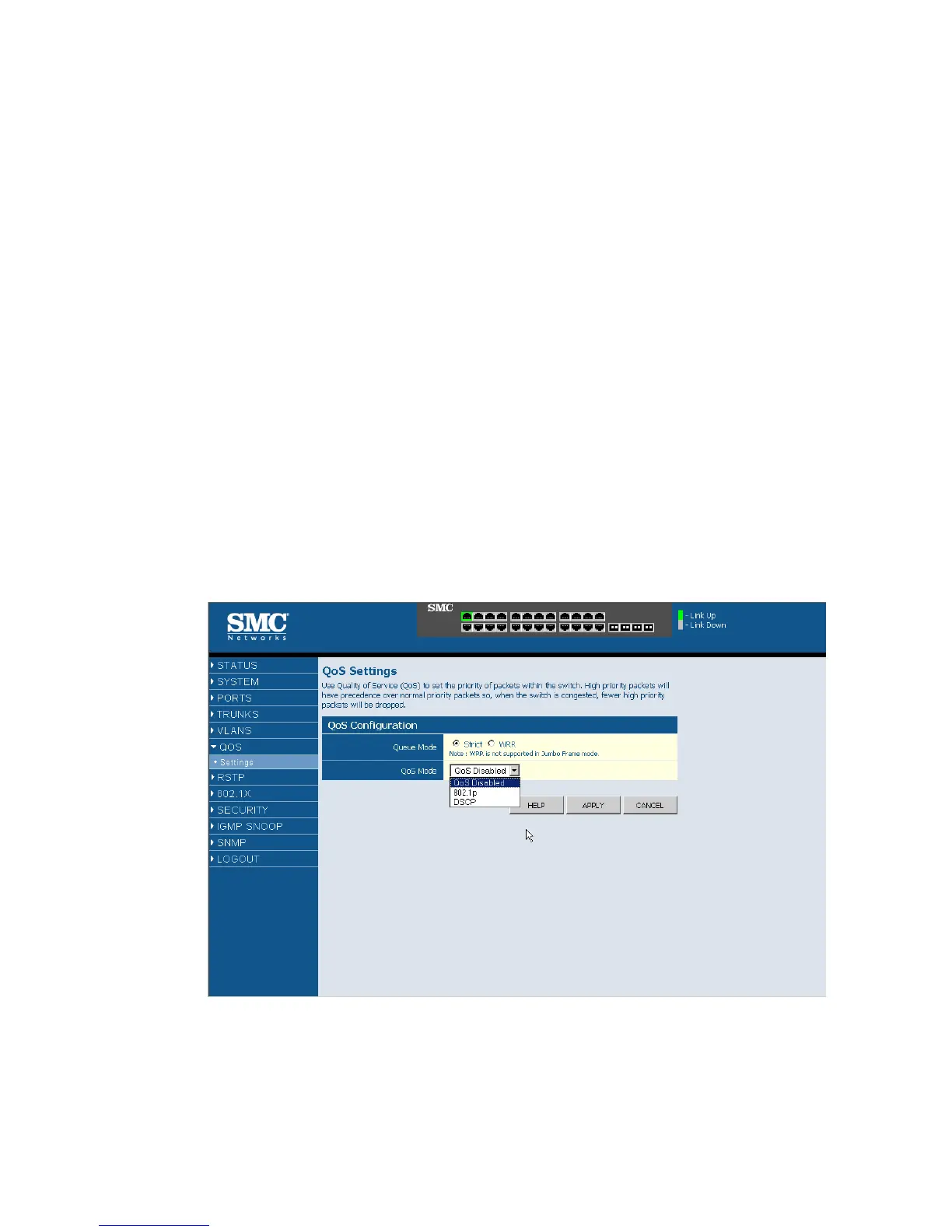

Figure 5-23 QoS Settings
