Overview
SMC’s TigerSwitch
™
10/100, SMC6709FL2, is an intelligent standalone
Fast Ethernet switch with 8 10BASE-T/100BASE-TX Mbps ports and 1
100BASE-FX multi-mode port. There is also an SNMP-based
management agent embedded on the main board. This agent supports
both in-band and out-of-band access for managing the switch.
This switch can easily
tame your network with full support for Spanning Tree
Protocol
and Virtual LANs. It brings order to poorly performing networks
by segregating them into separate broadcast domains with IEEE 802.1Q
compliant VLANs, empowers multimedia applications with QoS services.

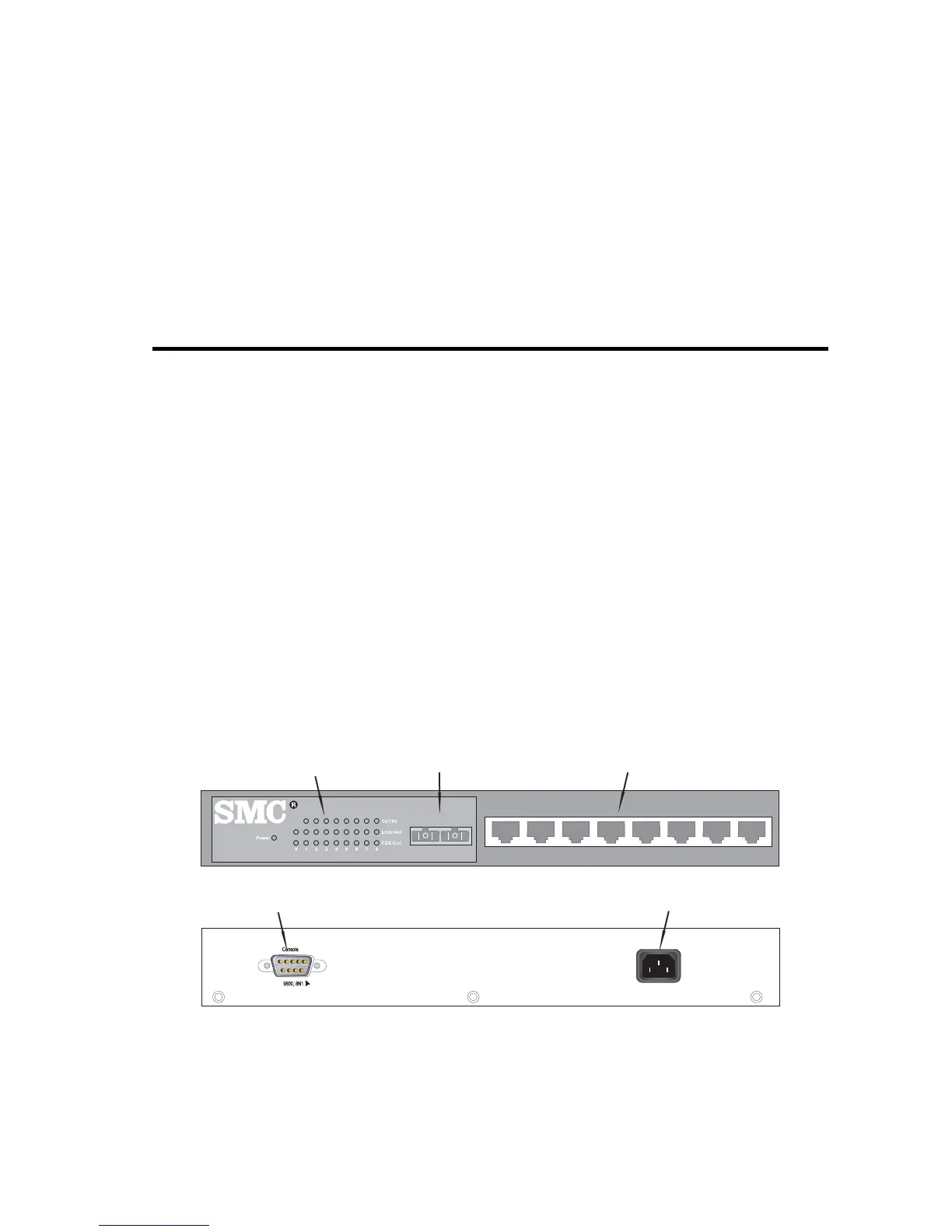

Figure 1-1. Front and Rear Panels
1X
3X
5X 7X
2X
4X
6X
8X
9X
100M Fiber
Console
9600, 8N1
AC 100V
-240V
0.8A,50-60Hz
Power Plug
Console port
10/100Mbps RJ-45 Ports
100Base-FX
fiber port
LED Indicators
TigerSwitc
h 10/100
6709FL2
