-26-
No.PS※※-OMU0003-C
Simple Setting Mode
<Operation>
[Simple setting mode (hysteresis mode)

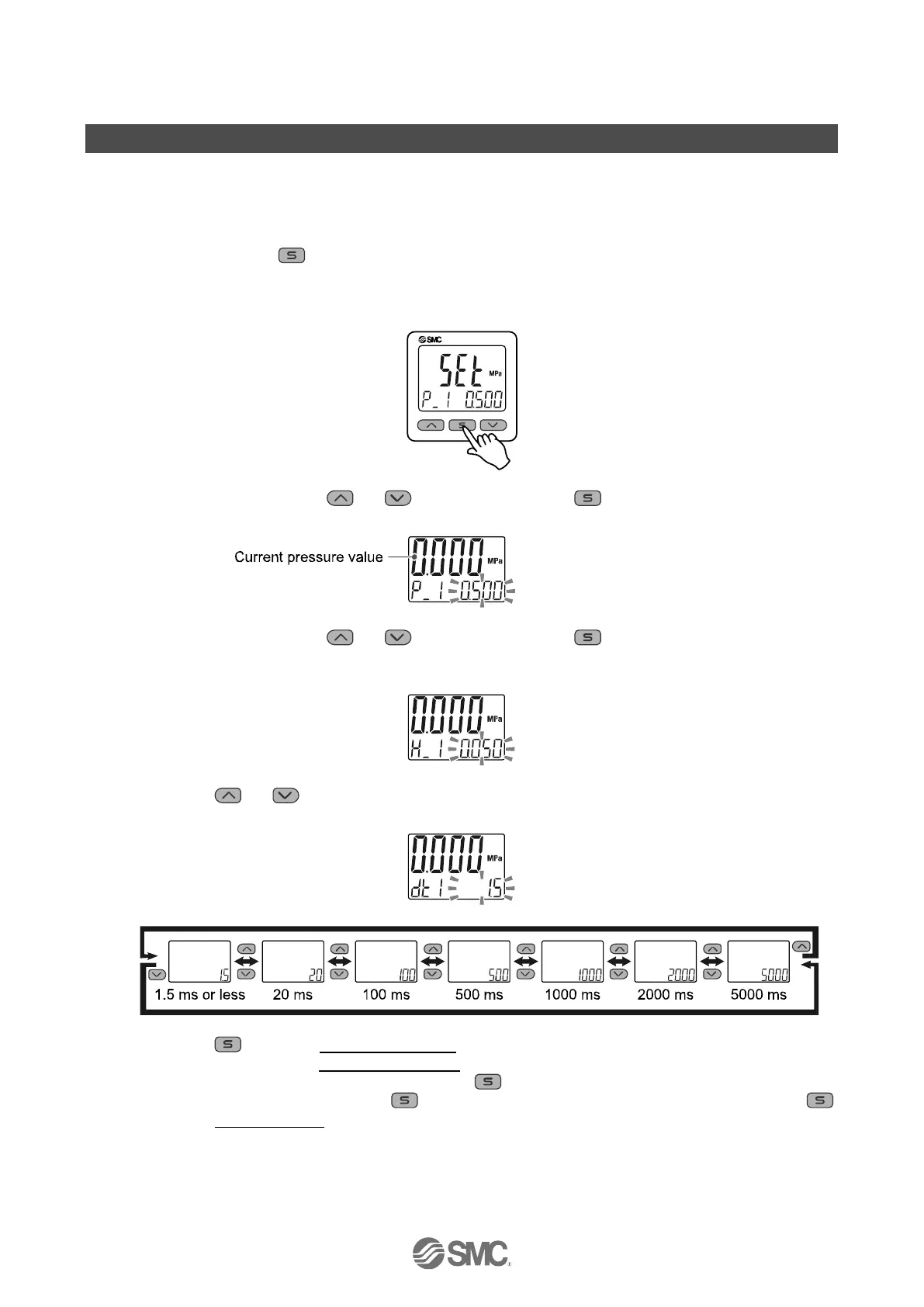

In the simple setting mode, the set value, hysteresis and delay time can be changed while checking the
current pressure value (main display).
(1) Press and hold the button between 1 and 3 seconds in measurement mode. [SEt] is displayed
on the main display. When the button is released while in the [SEt] display, the current pressure value
is displayed on the main display, [P_1] or [n_1] is displayed on the sub display (left), and the set value
is displayed on the sub display (right) (Flashing).
(2) Change the set value with or button, and press the button to set the value. Then, the
setting moves to hysteresis setting. (The snap shot function can be used. (Refer to page 61.))
(3) Change the set value with or button, and press the button to set the value. Then, the
setting moves to the delay time of the switch output.
(The snap shot function can be used. (Refer to page 61.))
(4) Press the or button, the delay time of the switch output can be selected.
Delay time setting can prevent the output from chattering.
(5) Press the button for 2 seconds or longer to complete the setting.
If the button is pressed for less than 2 seconds, the setting will moves to the OUT2 setting.
1: Selected items (1) to (4) become valid after pressing the button.
2: After enabling the setting by pressing the button, it is possible to return to measurement mode by pressing the
button for 2 seconds or longer.
3: When the output mode (refer to page 31) is set to error output or output OFF, the simple setting mode cannot be used.
(The setting changes to measurement mode by releasing the button when [SEt] is displayed.)
4: When OUT2 set items are displayed on the sub screen of the measurement mode, step (1) will begin with the OUT2 setting
[P_2] or [n_2].
