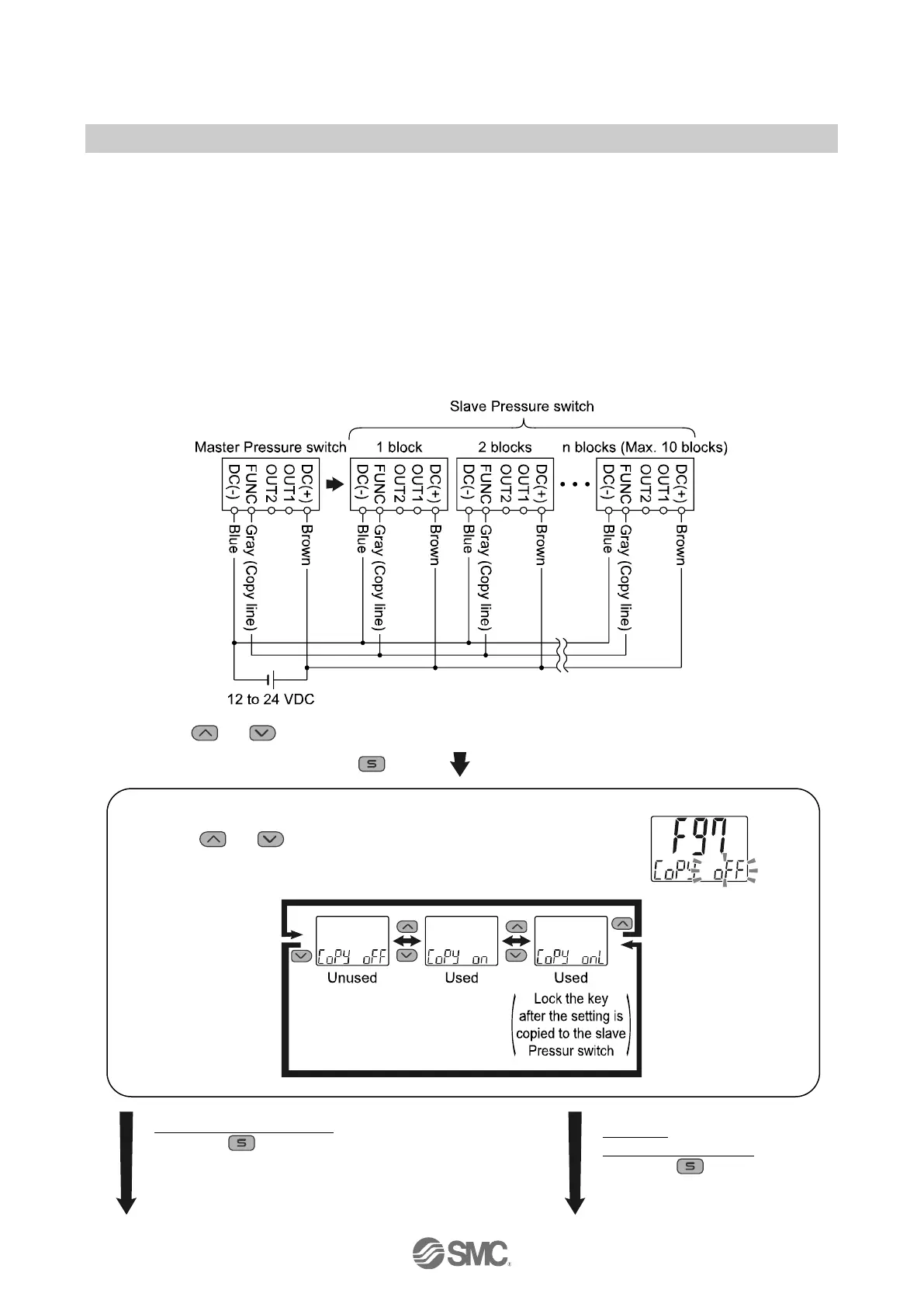

■[F97] Selection of copy function
The set values of pressure and functions (except for corrected value of fine adjustment of display value and
line name) can be copied. When the pressure range, output and unit specifications are the same, this
function becomes available. The set value can be copied to up to 10 pressure switches simultaneously.
<Connection>
Connect the pressure switches with the power supply turned off.
Connect the FUNC terminals of the master Pressure switch and the slave Pressure switches, and then turn
on the power supply.
The master pressure switch is the switch from which the setting is to be copied.
The slave Pressure switch is the switch to which the setting is to be copied.
When the output specifications of the slave side pressure switch are R, S, T or V, they should be set to
copy input in accordance with the [F 5] FUNC terminal setting (page 39) beforehand.
<Operation>
Press the or button of the master Pressure switch in function selection mode to display [F97].
Press the button. Move on to selection of copy function.
[oFF] (not use) is selected
Press the button to set.
Return to function selection
mode.
[on] (use)
[onL] (use) is selected
Press the button to set.
Move to copy ready status.
Selection of copy function
Press the or button to select copy function.
