SMC Networks ZSE20A User Manual

-57-
No.PS※※-OMU0003-C

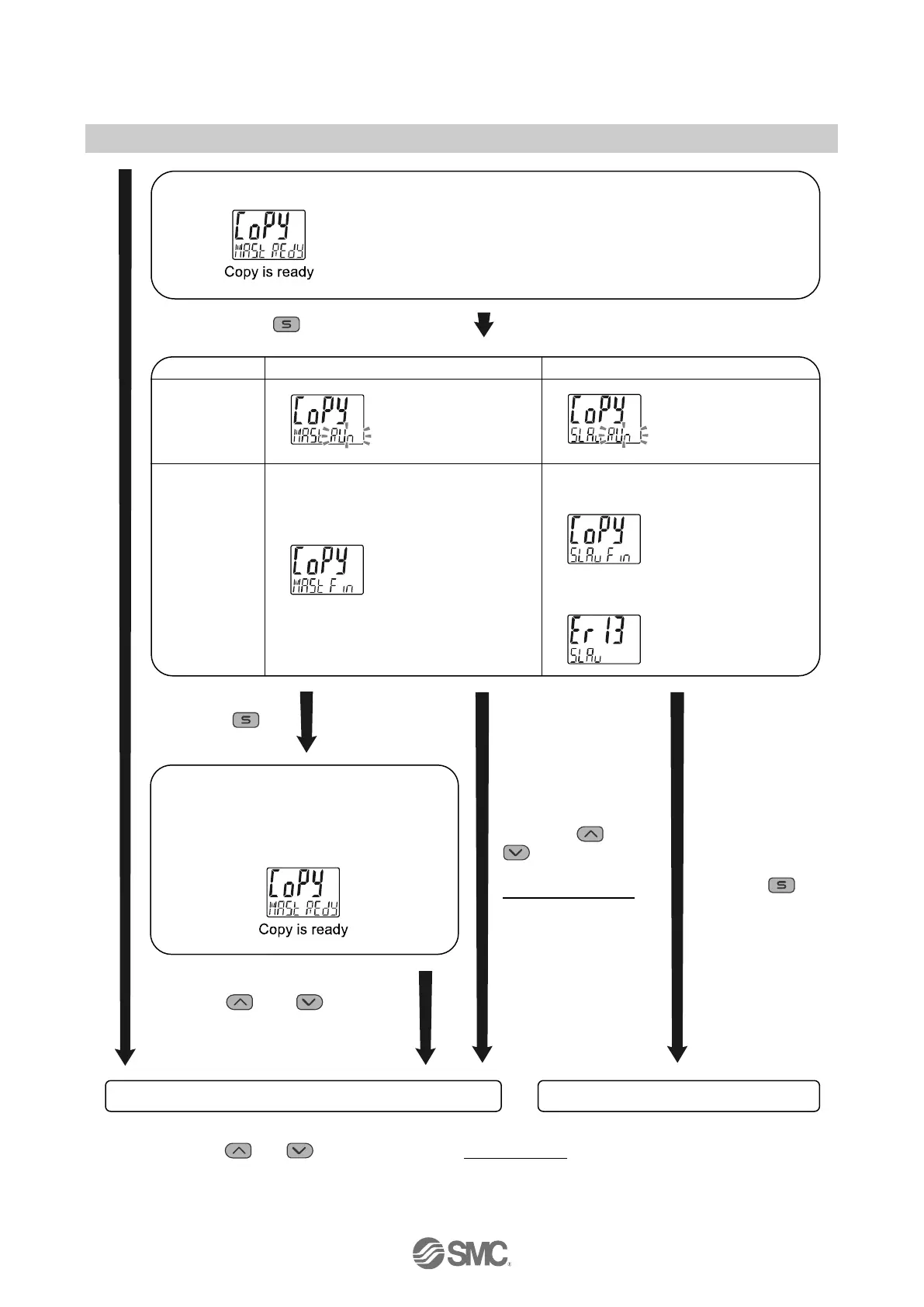

Copy ready status
Press the button to start copying.
The master Pressure switch
The slave Pressure switch
Sending/
Receiving
Main display: Red
Main display:
Green
Copy
completed
Main display: Red
When completed
normally
Main display:
Green
When error
occurs
Main display: Red
(Master side)
Press the
button.
To complete the copy function,
press the and buttons
simultaneously for 1 second or
longer.
[F97] Setting of selection of copy function completed Measurement mode
: When the slave side pressure switch displays [Er13], it indicates a sending and receiving error of the copy function.
Press the and buttons simultaneously for 1 second or longer to return to measurement mode. Then, check
the wiring and specifications of the switch and retry the copy function.
: When copy is conducted so that the analog output is used, set the FUNC terminal setting of the master side pressure switch to
Aout, then conduct a copy. The FUNC terminal setting of the slave side pressure switch will be Aout when the copy is complete.
The copy can be made continuously
and the copy ready status can be
held even if the power supply is
turned off.
(Slave side)
When
completed
normally.
Press the
button.
(Master side)
Press the and
buttons
simultaneously for
1 second or longer.
Even though the power supply is turned OFF, the
copy ready status will be retained.
