-33-
No.PS※※-OMU0003-C

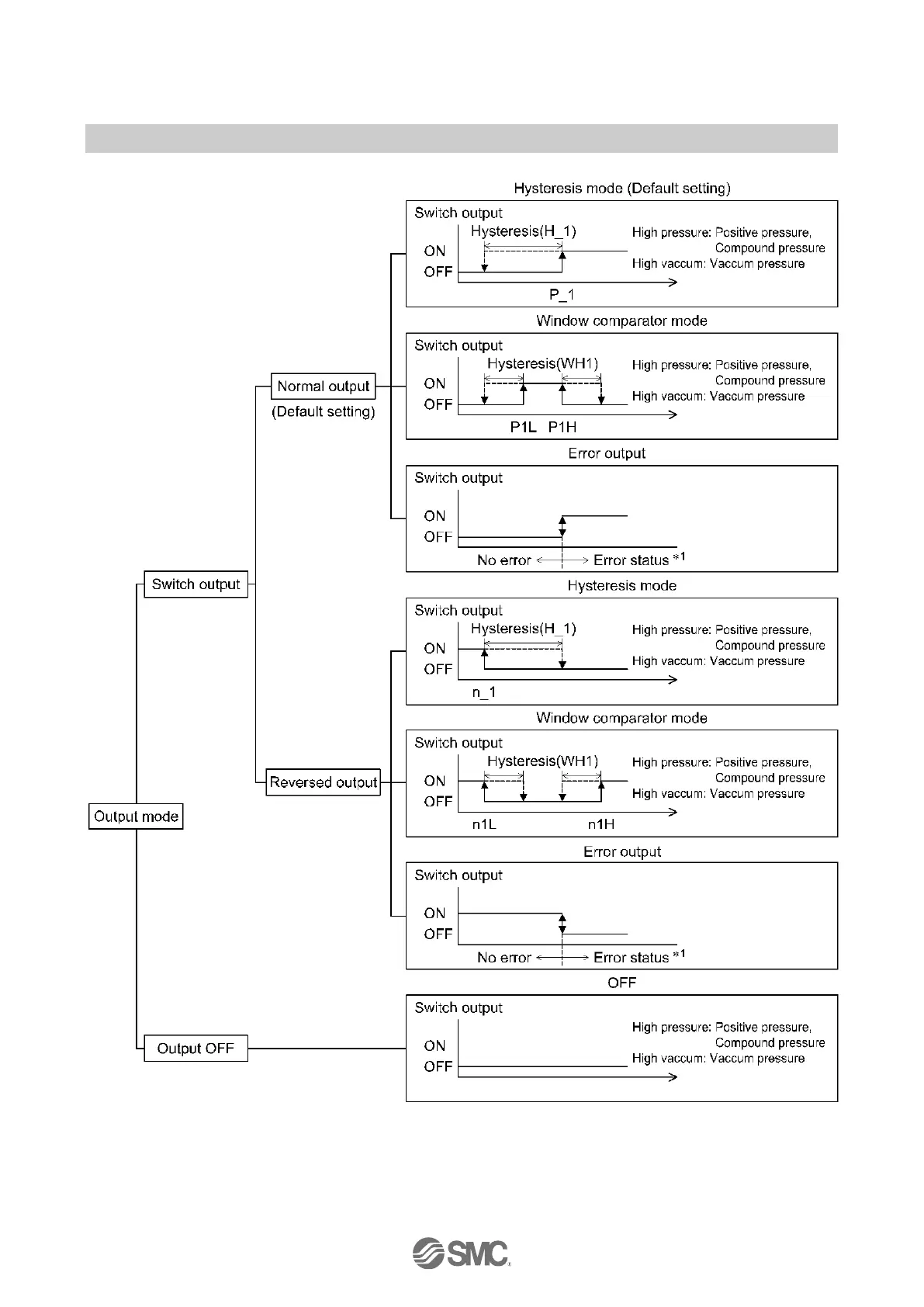

●List of output modes
1: The applicable errors are Er6, 8, 9, o.r as well as Er1 or 2 (excluding the error output).
: The chart above shows the OUT1 operation. For OUT2, all "1" in the chart will be changed to "2". (example P_1→P_2)
If the point at which the switch output changes is outside of the set pressure range due to the selection
of normal or reversed output, the hysteresis value is automatically adjusted.
