○Unit specification and pressure gauge measurement value (PD)
Series Unit Rated pressure range Display/settable range
ISE20B
MPa
-0.100
to
1.0000
-0.105
to
1.050
∗
kPa
-100
to
1000.0
-105
to
1050
kgf/cm
2
-1.02
to
10.197
-1.07
to
10.71
bar
-1.00
to
10.000
-1.05
to
10.50
psi
-14.5
to
145.04
-15.2
to
152.3
Pressure gauge measurement value (PD)
600
to
5000
580
to
5200
∗
ZSE20B
MPa
0
to
-0.1010
0.01
to
-0.105
kPa
0
to
-101.00
10.0
to
-105.0
kgf/cm
2
0
to
-1.0299
0.102
to
-1.071
bar 0
to
-1.0100 0.100
to
-1.050
psi
0
to
-14.649
1.45
to
-15.23
inchHg
0
to
-29.83
3.0
to
-31.0
mmHg
0
to
-757.6
75
to
-788
Pressure gauge measurement value (PD)
1000
to
5040
600
to
5200
ZSE20BF
MPa
-0.1000
to
0.1000
-0.105
to
0.105
kPa
-100.00
to
100.00
-105.0
to
105.0
kgf/cm
2
-1.0197
to
1.0197
-1.071
to
1.071
bar
-1.0000
to
1.0000
-1.050
to
1.050
psi
-14.504
to
14.504
-15.22
to
15.22
inchHg -29.53
to
29.53 -31.0
to
31.0
mmHg
-750.1
to
750.1
-788
to
788
Pressure gauge measurement value (PD)
1000
to
5000
900
to
5100

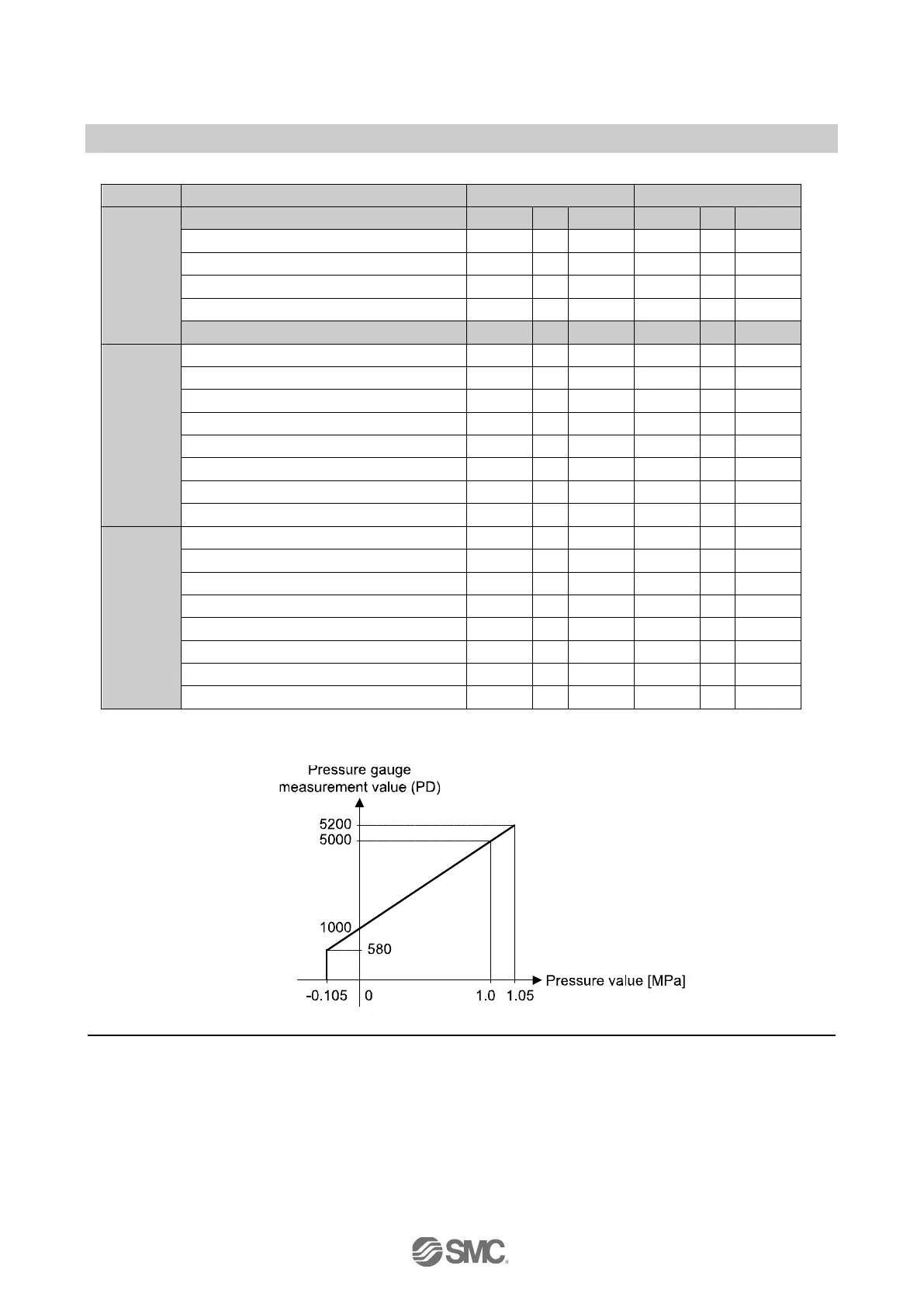

∗: The figure below describes the relationship between the pressure gauge measurement value (PD) and pressure value in the unit
specification (MPa) of the ISE20B series.
Relationship between the pressure gauge measurement value (PD) and pressure value (e.g.: ISE20B unit MPa)
