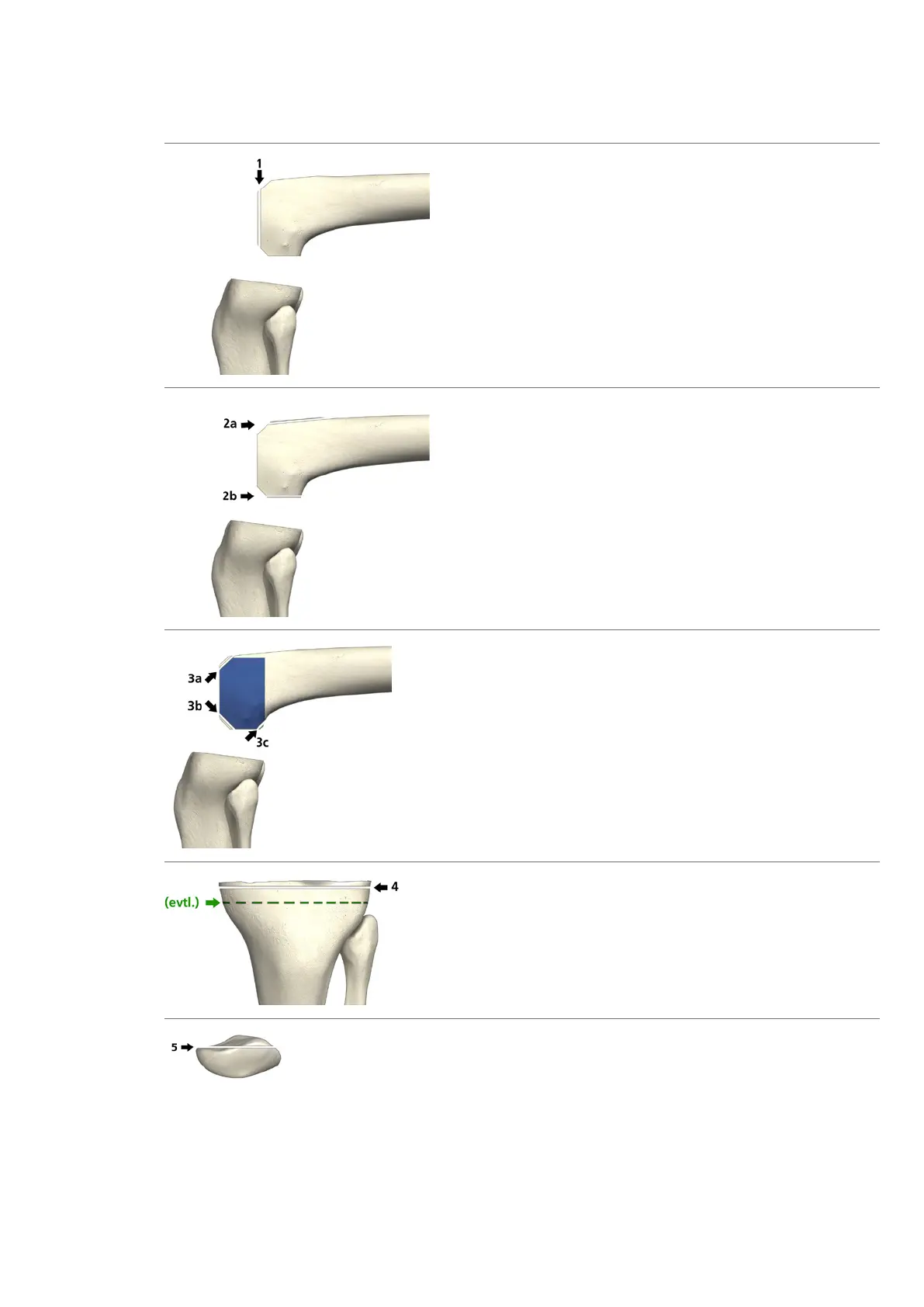

Overview of the Resection Sequences for Revision Application
15
The bone resections are refreshed after extraction of the primary implants.
1. Distal femoral resection.
2. A/P femoral resection.
3. Chamfer resections and cutting out the
box. Remove residual posterior condyles if
present.
Important
To avoid the risk of a condyle fracture, we
recommend preparing the box after
tibial preparation.
4. Tibial resection and optional augment
resection.
5. Patellar resection (optional).
Important
For the standard instrument set, use 1.00 mm saw blades for all bone resections!
For the 1.27 mm instrument slot option, use the corresponding 1.27 mm saw blades.
See Lit. No. 01218 for corresponding connection.
