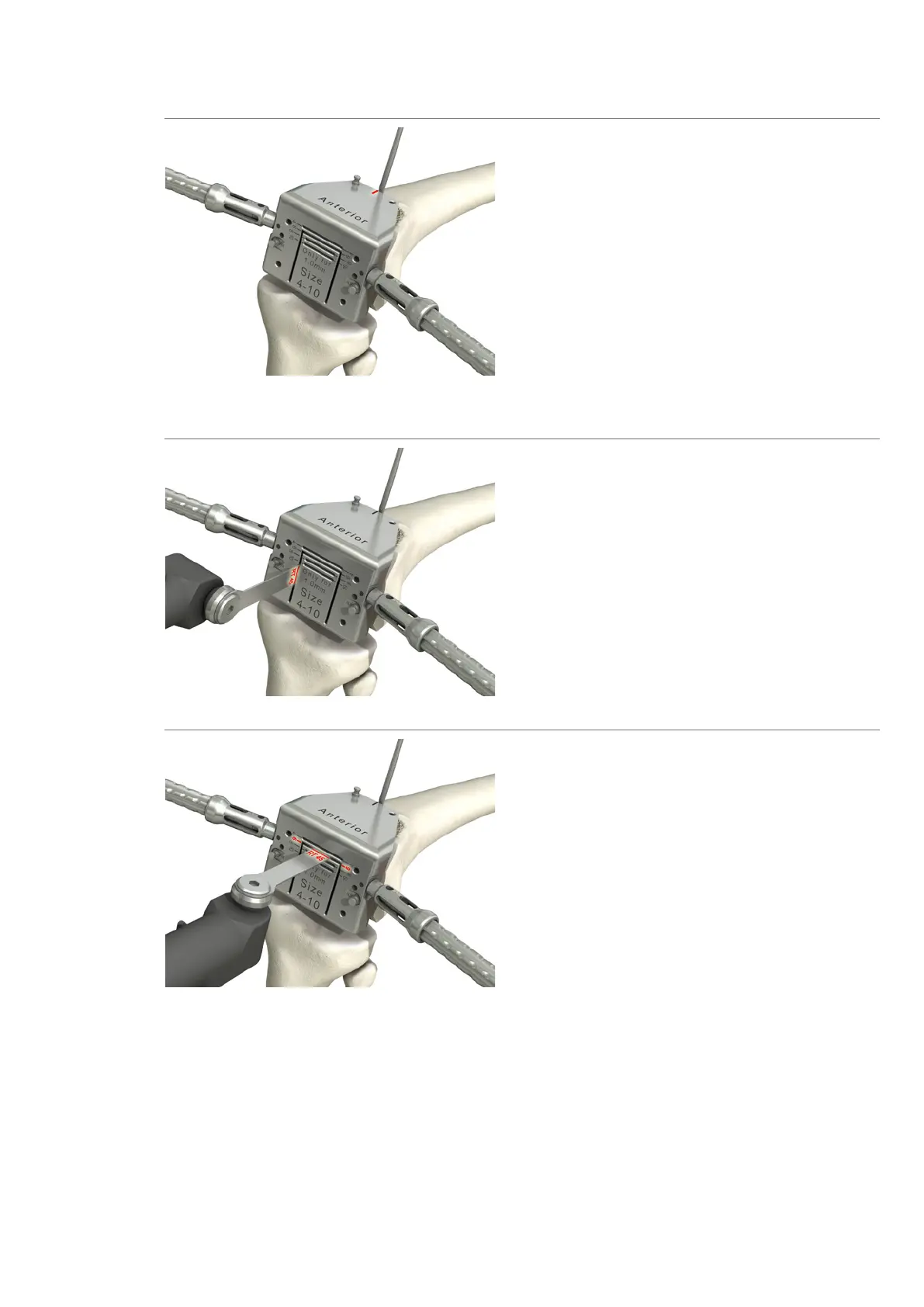

Align the femoral box saw guide (guides for
size 2 and sizes 4–10) with the anterior
cortical bone marking, and set in place with
bone pins.
Important
It is important that the box saw guide is flush
with the resections.
The side handles can be attached to the box
saw guide.
Perform the resections using a special 13 mm
wide saw blade. Insert the saw blade up to
the RT 45 mark (this corresponds to a depth
of 45 mm).
Important
Protect the vessels and nerves in the pop-
liteal fossa.
If using the guide for sizes 4–10, make the
anterior box cut through the saw slot of the
appropriate size.
Remove the box saw guide.
