SMS SenTRI ONE - Technical Data

"
The output contacts are rated at 13A 230V ac
resistive load. In order to meet the requirements of
European Safety Standards, ensure that all cables
carrying voltages in excess of 48V (Live and Neutral) are
suitably fused.
Technical data
Approval EN54-17:2005 & EN54-18:2005
(Approved)

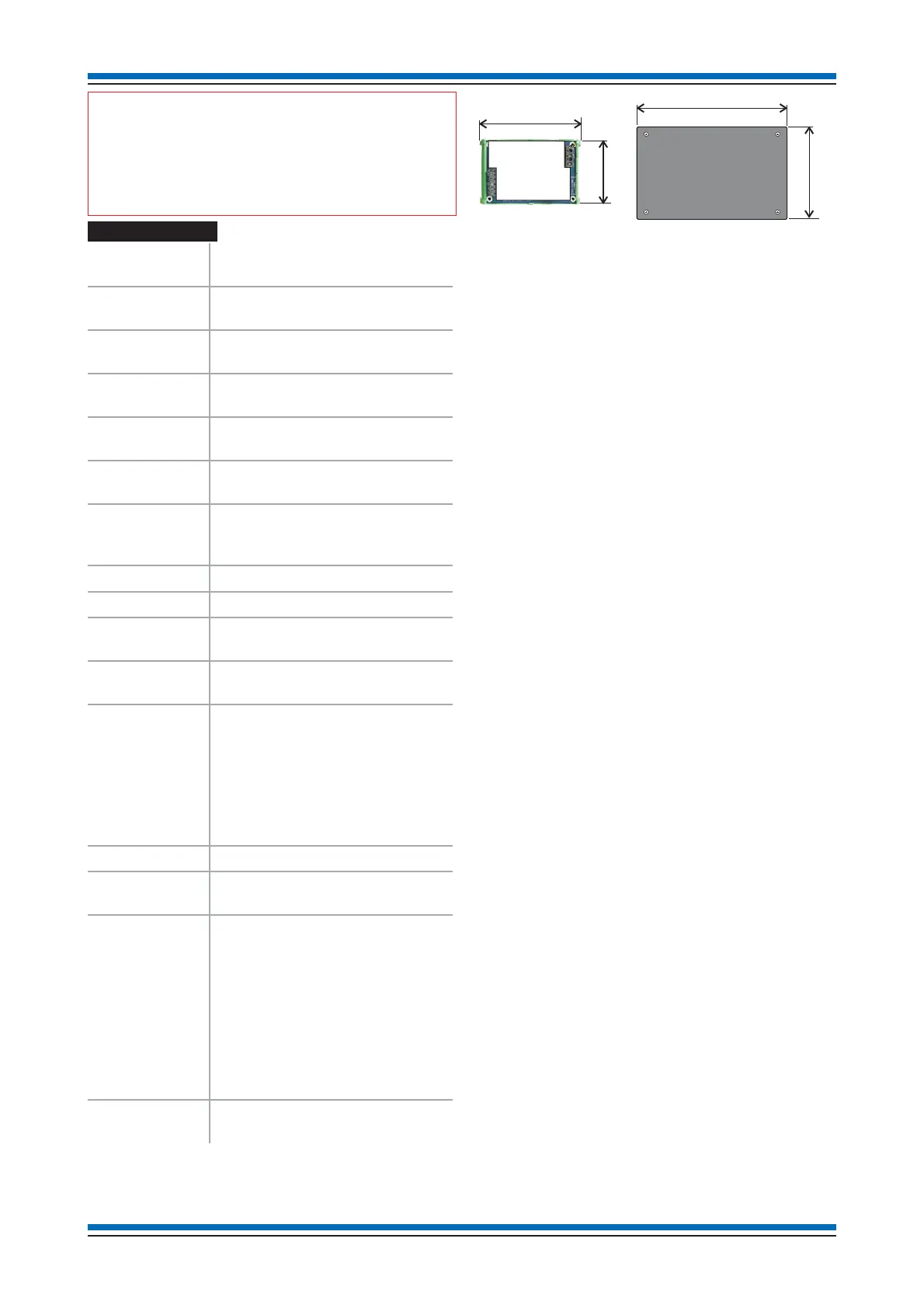

Dimensions in
mm
See illustrations
Weight DIN mountable:138g
PCB with cover in metal box:800g
Storage
temperature
-30ºC to 70ºC
Operating
temperature
-10ºC to 60ºC
Relative
Humidity
Up to 95% - Temperature
5ºC to 45°C(Non condensing)
Emission BS EN 61000-6-3:2001
Residential, Commercial & Light
Industry Class B limits
Immunity BS EN50130-4: 1996: Part 4
LVD BS EN 60950-2002
Ingress
Protection
Metal box - IP40 estimated
Colour -
Metal Box
Dark Grey
Output Single pole change over contacts
rated at 13A 230V ac Resistive
load.
Contact ratings
Type
Cycle
1hp @ 240V ac, 1/2hp @
120V ac (UL508)
6x10
3
Terminals 2.5mm
2
Load Factor 5
(maximum 127 devices on loop)
EN54-17 data V
max 42V
V
nom 40V
V
min 24V
V
SO max 16V
V
SO min 8V
I
C max 0.4A
I
S max 1A
I
L max 20mA
Z
C max 0.1W
Panel
compatibility
SenTRI ONE panel based system
43
SenTRI ONE System
125mm
75mm
Depth 48mm
PCB on DIN rail
m
ou
nt
ab
l
e
m
odu
l
e
202
mm
125mm
Depth 50mm
PCB in metal box
