Scope Multimeter Operations Navigation
1— Peak Detect on
2— Inverted trace
3— Coupling AC on
4— Trigger set on the rising edge
5— Touch and Grow button

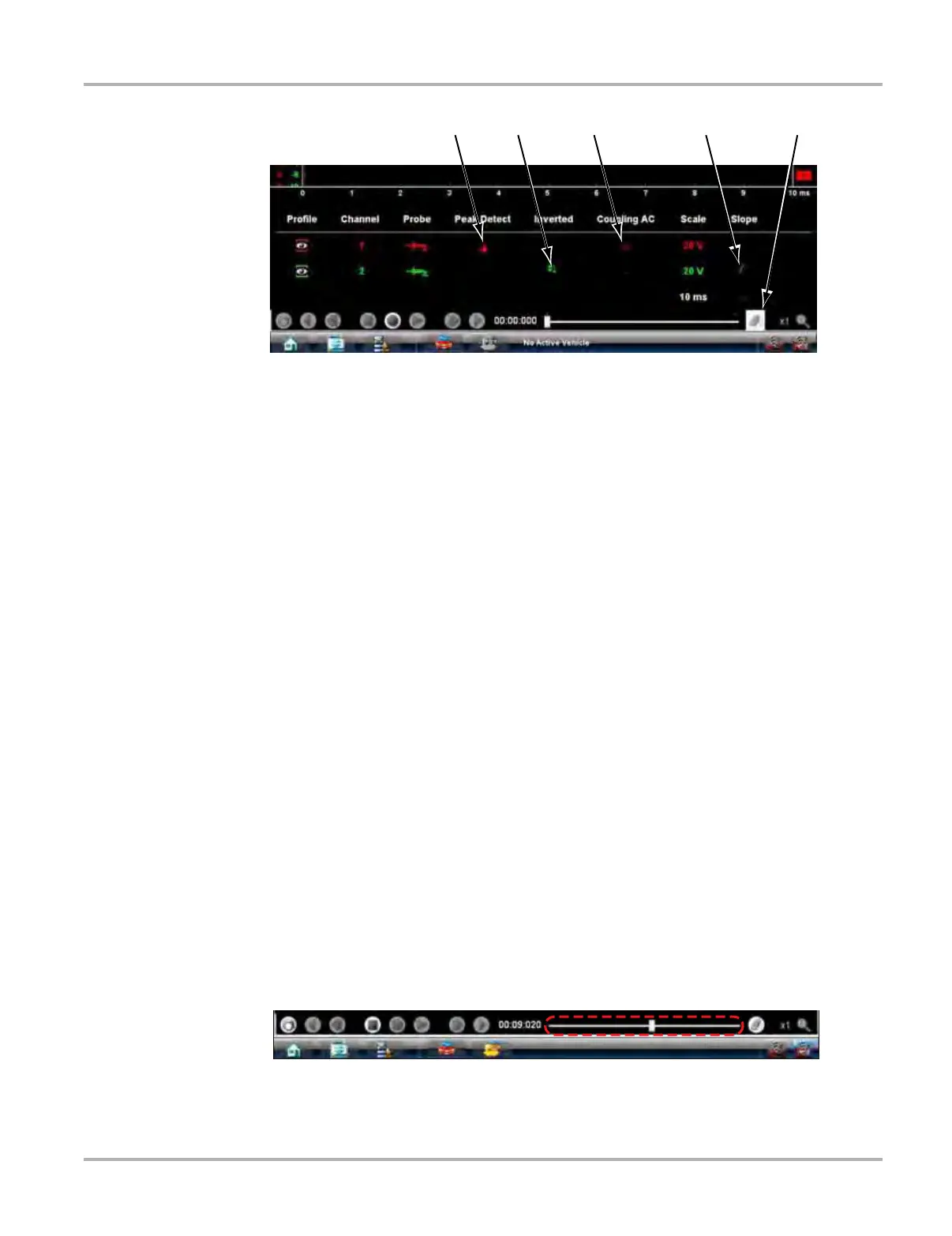

Figure 9-7 Sample Touch and Grow display
The following trace adjustments and settings are available:
• Profile—switches the trace for the selected channel on and off.
• Probe—opens a dialog box that allows you to select the type of test probe being used.
• Peak Detect—maximizes the signal sampling rate in order to capture fast events, such as
spikes, glitches and other anomalies, that may normally be undetected.
• Inverted—switches the polarity of the displayed signal.
• Coupling AC—subtracts the average value of the waveform by blocking the DC portion of an
input signal in order to amplify the AC portion. This allows small variations in the trace to
become visible.
• Scale—opens a dialog box that allows you to select the scale, which is the total value
displayed on the vertical axis of the display.
• Slope—only active when a trigger is set, indicates whether the trigger is set to activate on the
rising or falling edge of the trace. Tapping the slope icon switches the slope.
Record/Playback Control Toolbar
The record/playback control toolbar at the base of the screen is used for recording data and for
reviewing paused data files. Use the stylus or your finger tip to activate the buttons. A position
counter in the toolbar
displays a numerical value of where the current screen is in relation to the entire
recorded file.
Use the slider in the middle of the toolbar to quickly move through paused data.
Figure 9-8 Sample data buffer slider
