M2 Data Acquisition Device Digital Multimeter Operations
8.2.6 Capacitance
This selection is used to measure capacitance.

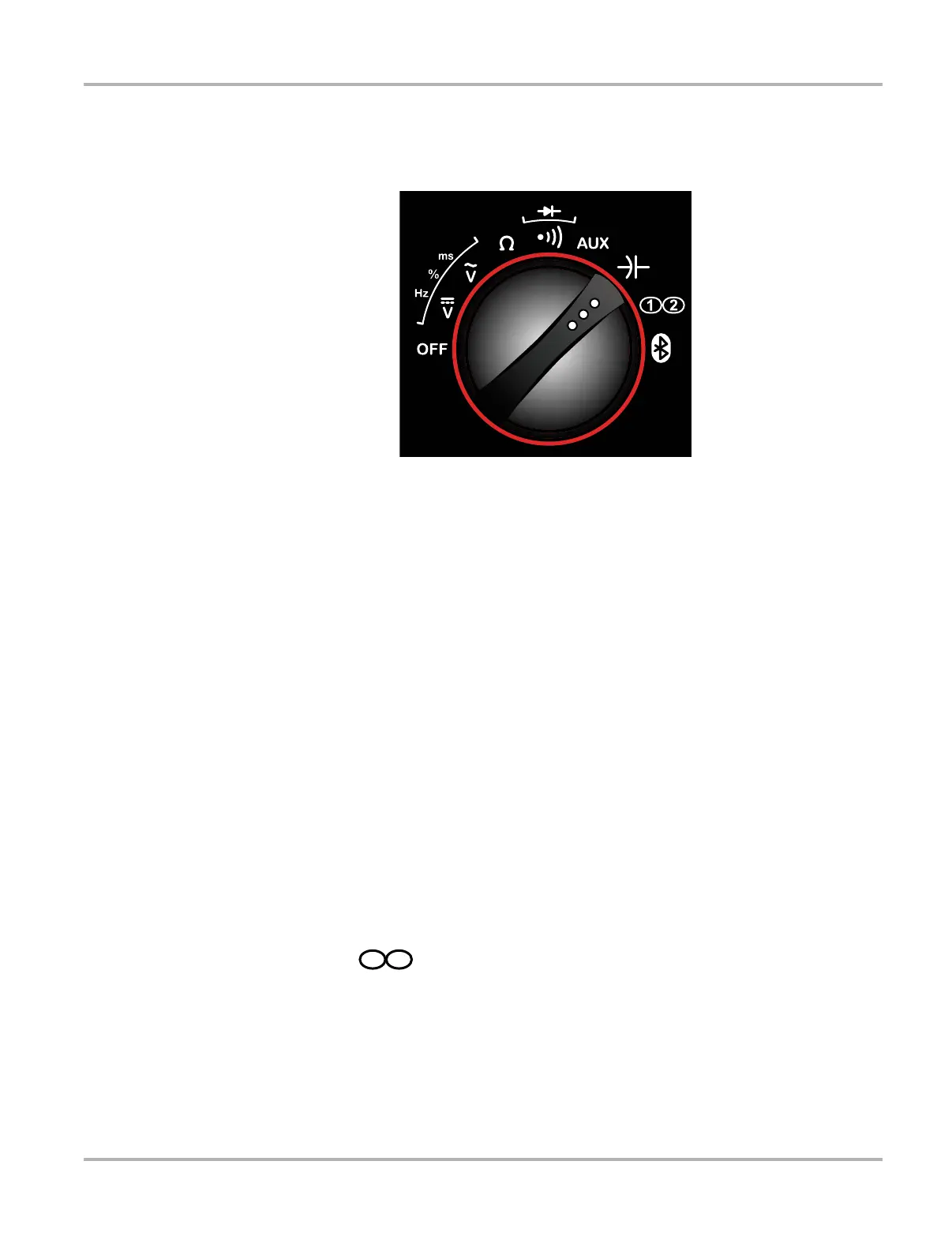

Figure 8-10 Sample capacitance selected
F1 Key
Relative readings are not available in this mode. A short push of the F1 key does cause a beep to
sound, but the display remains unchanged. A long push of the F1 key opens the alternate menu.
F2 Key
A single press of the F2 key pauses, or freezes, the displayed value. A second press returns the
display to normal mode.
F3 Key and Range Key
The F3 and Range keys select the measurement range.
F4 Key, S Key, Min/Max Key, and Graph Key
The F4, S, Min/Max, and Graph keys are nonfunctional in this mode.
8.2.7 Oscilloscope
The data acquisition device has the ability to provide a two-channel oscilloscope, or waveform
viewer. The viewer becomes active when the rotary switch is turned to the “scope” position.
