M2 Data Acquisition Device Updating the Software

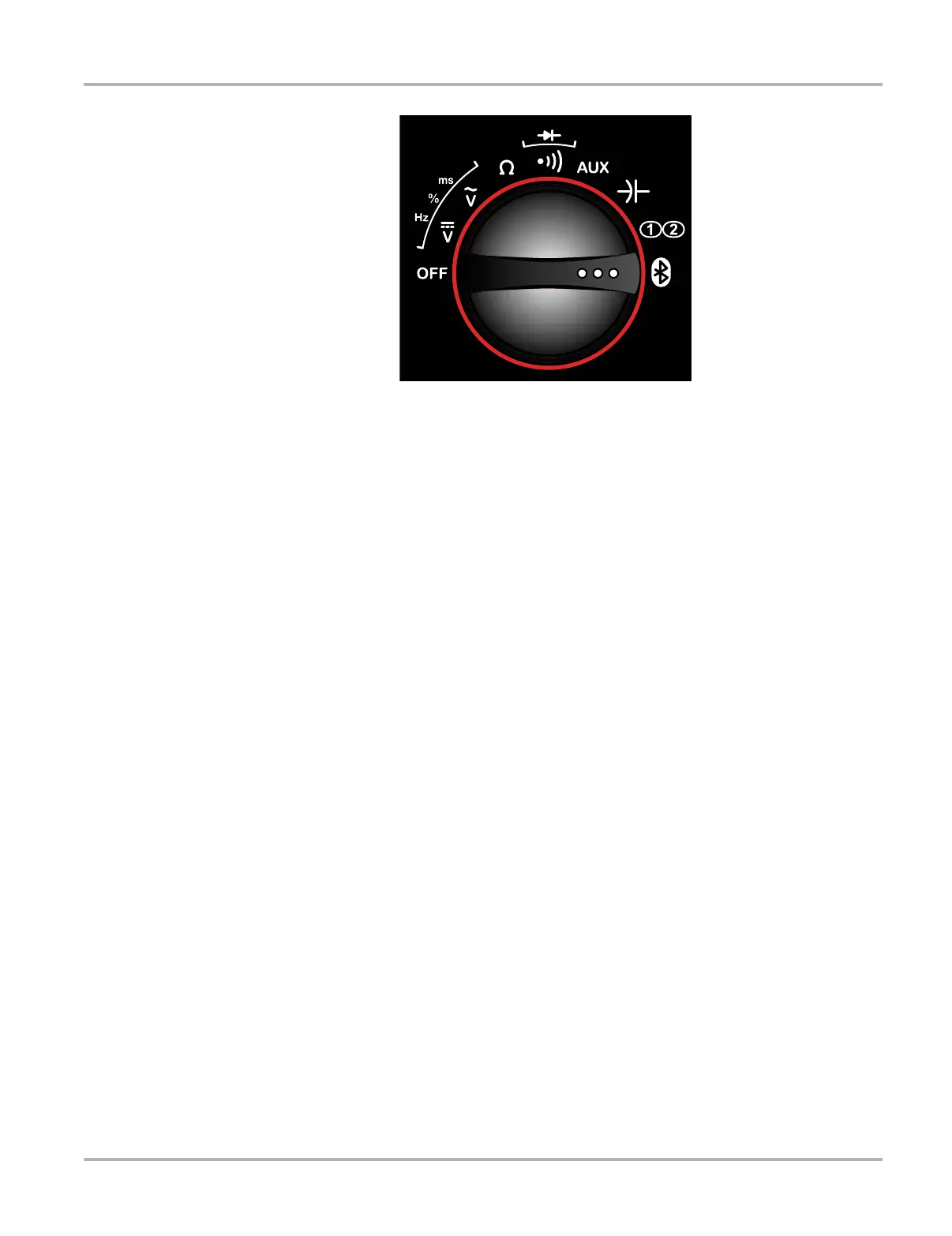

Figure 8-19 Sample remote functions selected
If the VERDICT M2 has been paired with a display device, it automatically connects to it. Once
connected to a display device the front panel keys on the VERDICT M2 become inoperative. All
controls of the VERDICT M2 are transferred to the host computer. Turning the Rotary Switch off
of the Remote Functions position returns control to the VERDICT M2 and the front panel keys
regain their functionality.
8.3 Updating the Software
The VERDICT M2 software can be updated using the VERDICT D7 Display Device. When the
display device is connected to the internet it automatically searches for software updates for all of
the VERDICT components. Any updates that are found are stored on the device, but must be
installed to complete the process. This section describes updating the VERDICT M2 software.
z To update the software:
1. Connect the VERDICT M2 and D7 Display Device to AC power using their AC/DC Power
Supply units to prevent loss of power during the programming process.
2. Power on the VERDICT D7 Display Device.
3. Verify the VERDICT M2 and D7 Display Device are paired.
4. Power on the VERDICT M2 unit and set the Rotary Switch to the Remote Functions position.
5. From the D7 Display Device Home screen, select Scope Multimeter.
6. Select Lab Scope from the D7 Profile screen.
7. Select 2 Channel Lab Scope from the D7 Lab Scope screen.
A message box opens in the lower-right corner of the scope screen if there is a software
update is available (Figure 8-20).
