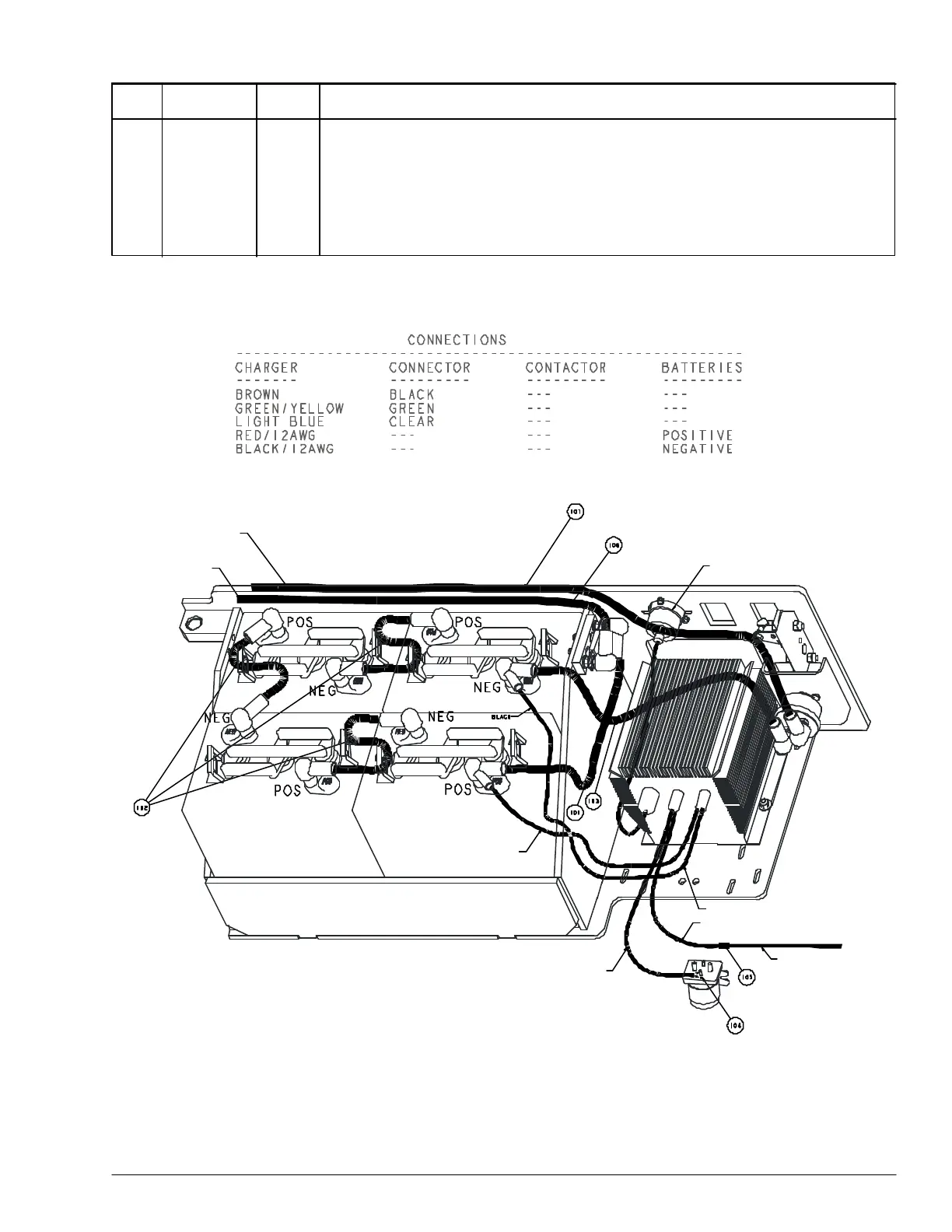

Battery Tray Wiring – After February 2011
0371557 D
Item Part No. Qty. Description
101 0162244 1 WIRE 2 R313 R375 20 RED
102 584926 3 WIRE 2 R375 R375 9 BLK
103 0161404 1 WIRE 2 R313 R375 20 BLK
104 3044163 1 TERM R313I 16/14
105 3044071 1 TERM BUTT CONN INSUL 16/14
106 0151157 REF WIRE 2 R375 R313 142 RED
107 0371896 REF WIRE 2 R375 R313 149 BLK
S2646/S3246 Electrical – 14A
See Hydraulic Tray in
Repair Parts Section
Note
Charger Cut-Out Installation: Remove wire 207 from
contactor located in Hydraulic Tray. Replace with
white wire from battery charger. Butt splice
black wire from charger with wire 207.
See Note
To (B-) post on motor controller
To (+) post
on contactor
Connector
Red/12 GA wire
from charger
Whie/16 GA wire from
charger, reterminate
with 3044163
Black/12 GA wire from charger
Black/16 GA wire from charger
to lower control box
To Next Page
