Page 15
SL26/30SL
ILLUSTRATED PARTS LIST

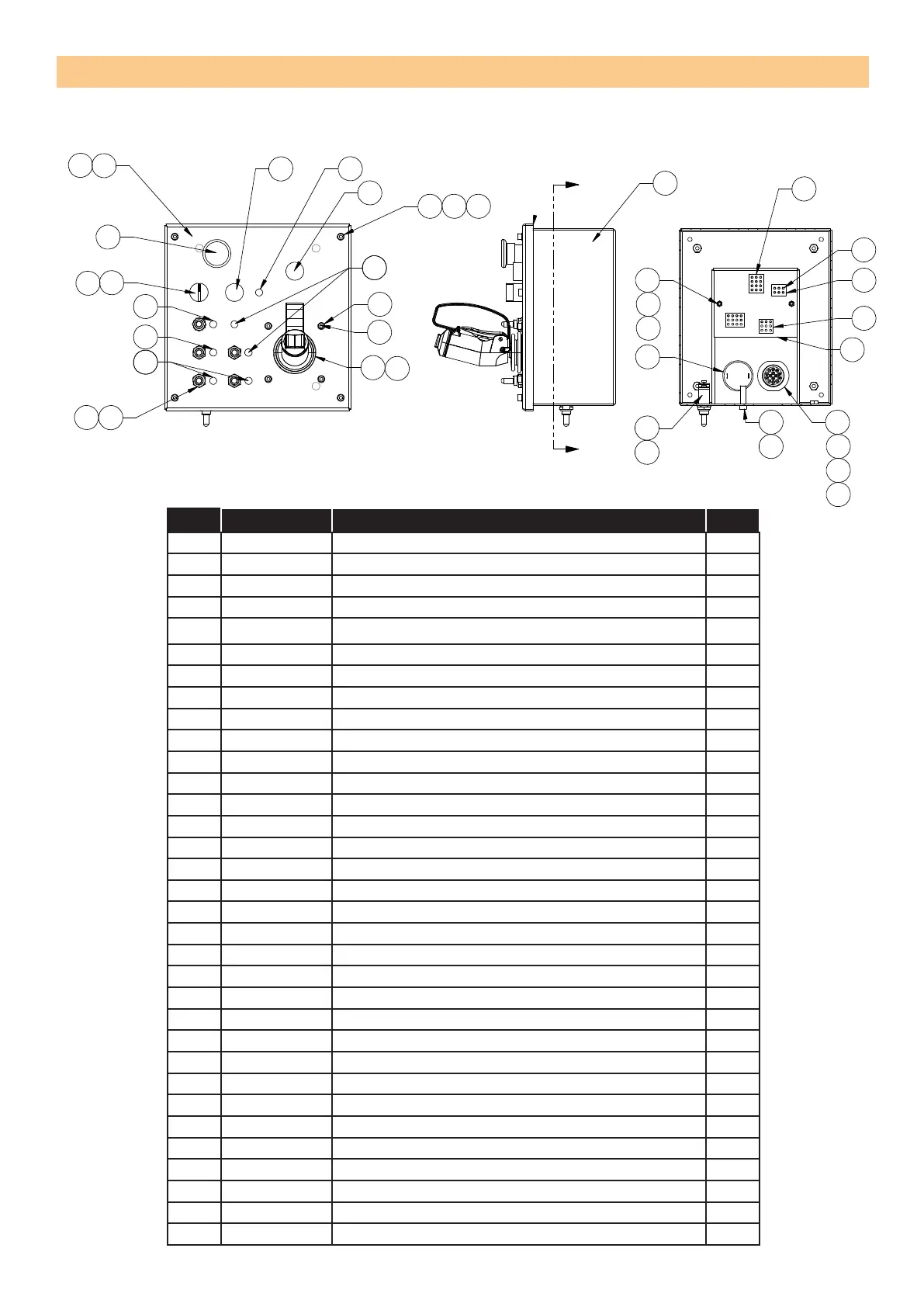

GENERATOR CONTROL BOX ASSEMBLY - 515353-000
ITEM PART DESCRIPTION QTY
1 514484-000 SL26/30 UPPER CONTROL PANEL 1
2 13888 JOYSTICK - GUARDED 1
3 512934-000 LED RED 12V 4
4 512935-000 LED GREEN 12V 4
5 510542-000 PUSHBUTTON; SCHNEIDER XB2BA21C 2
6 510524-000 SW TWIST RELEASE E/STOP; SCHNEIDER XB2BS542C 1
7 514182-000 BOOT COVER 6
8 510521-000 SW TGL SPDT ON-(ON) 5
9 514491-000 CONTACT BASE 1 N/O 1 N/C 1
10 514490-000 SWITCH HEAD 3-WAY STAYPUT/STAYPUT/SPRING TO CNTR 1
11 515354-000 SL UCB ENCLOSURE 1
12 056066-005 M5 NYLOCK NUT - 8 4
13 056069-005 M5 WASHER - GRADE 8 8
14 058501-025 M5 x 25 S.H.C.S. - GR 12.9 4
15 058501-016 M5 x 16 S.H.C.S. - GR 12.9 4
16 502588-000 ALARM, ECCO BEEPING 6-28VDC 1
17 3030169 MATRIX BOARD 1
18 510157-000 12WAY PANEL PLUG 2
19 510156-000 9WAY PANEL PLUG 1
20 510154-000 6WAY PANEL PLUG 1
21 058500-025 M4 x 25 SHCS - 12.9 2
22 056066-004 M4 NYLOCK NUT - 8 2
23 056069-004 M4 FLAT WASHER - GRADE 8 2
24 509755-000 Mate-N-Lock SCKT CONTACT 26
25 514604-000 LOCKWASHER DEUTSCH 114021 1
26 514605-000 LOCKNUT DEUTSCH 114020-90 1
27 3049862 14 WAY CONNECTOR DEUTSCH HD34-18-14PN 1
28 100338-013 CRIMP PIN DEUTSCH 0460-202-16141 7
29 514486-000 OVERLAY 1
30 514945-000 JOYSTICK HARNESS 1
31 510541-000 SW TGL SPDT (ON) OFF (ON) 1
32 0151459-NW DECAL - MACHINE GENERATOR 1
33 515337-000-NW
DECAL - GENERATOR ACTIVE 1
6
12
4
4
14
2
4
3
3
13
3
8
10
1
5
5
4
13
15
9
28
3
25
22
23
26
7
30
2
1
29
11
PB3
SW1
SW4
SW7
PB2
SW5
D7
D4
D3
D2 D5
D6
PB1
D1
SW3
SW2
A
A
20
17
31
19
18
33
24
27
16
21
3
32
