Page 2 - 9

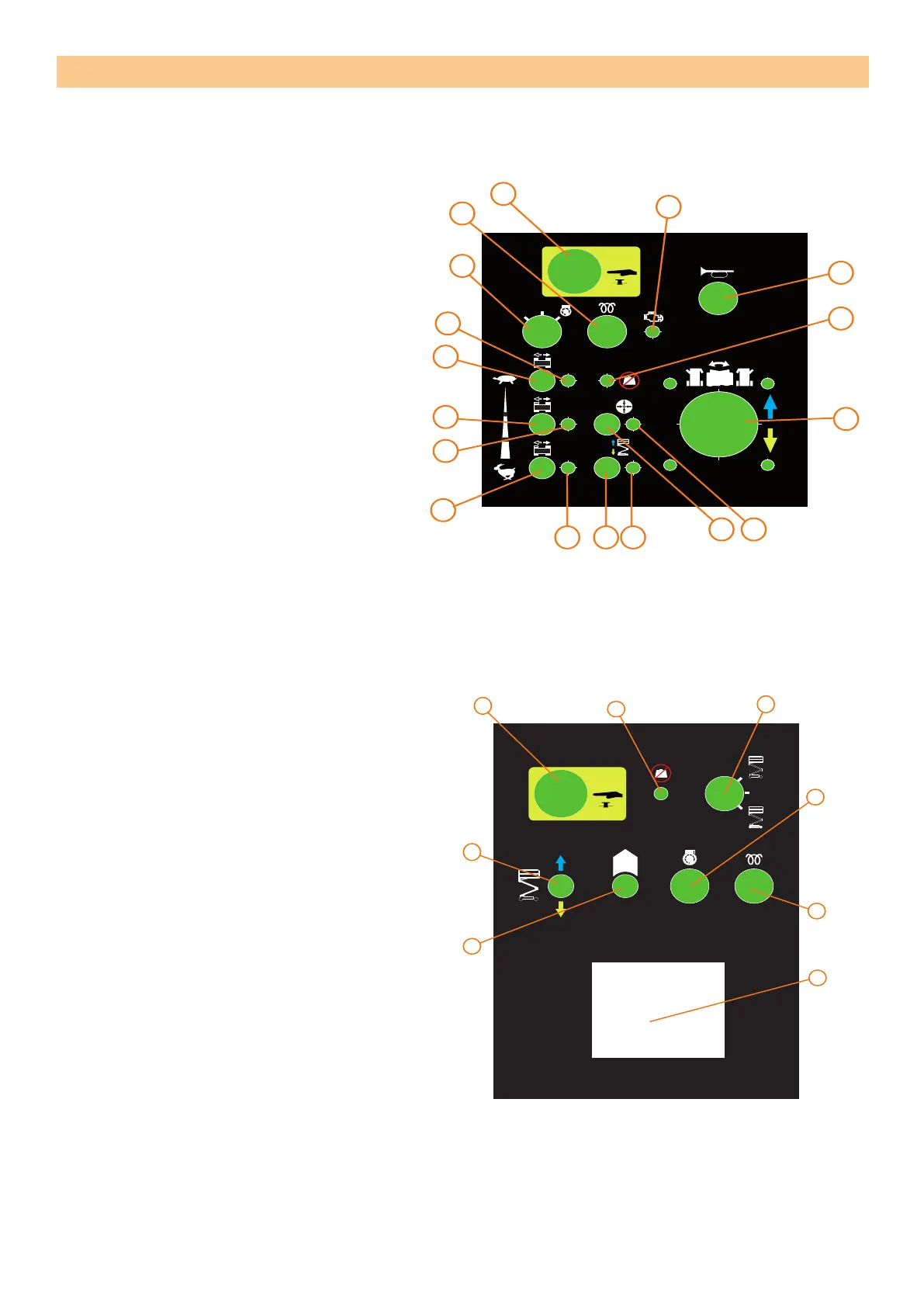

PLATFORM CONTROLS AND INDICATORS
1. Emergency stop button
2. Horn button
3. OFF/ON Engine start switch
4. Glow plug button
5. Engine warning LED
6. Low speed drive switch
7. Low speed drive enabled LED
8. Medium speed drive switch
9. Medium speed drive enabled LED
10. High speed drive switch
11. High speed drive enabled LED
12. Lift/Lower Switch
13. Lift/Lower enabled LED
14. Auto level switch
15. Platform tilt-steady red
axle tilt - ashing red
16. Overload LED
17. Joystick
Figure 2-3: Platform controls and indicator locations
CHASSIS CONTROLS AND INDICATORS
1. Emergency stop button
2. Overload LED
3. Keyswitch: Platform/OFF/Chassis
4. Lift/Lower Switch
5. Enable Switch
6. Engine start button
7. Glow plug button
8. Display
Figure 2-4: Chassis controls and indicator locations
CONTROLS/PRE-OPERATION
CUTOUT
CUTOUT
CUTOUT
CUTOUT
CUTOUT
CUTOUT
CUTOUT
CUTOUT
CUTOUT
CUTOUT
CUTOUT
CUTOUT
514486-000
0
I
4
1
3
7
6
9
8
10
11 12 13
14 15
17
16
2
5
