ATySController A15 - 549779A - SOCOMEC
10.4. Fixed inputs
10.4.1. Inhibit input

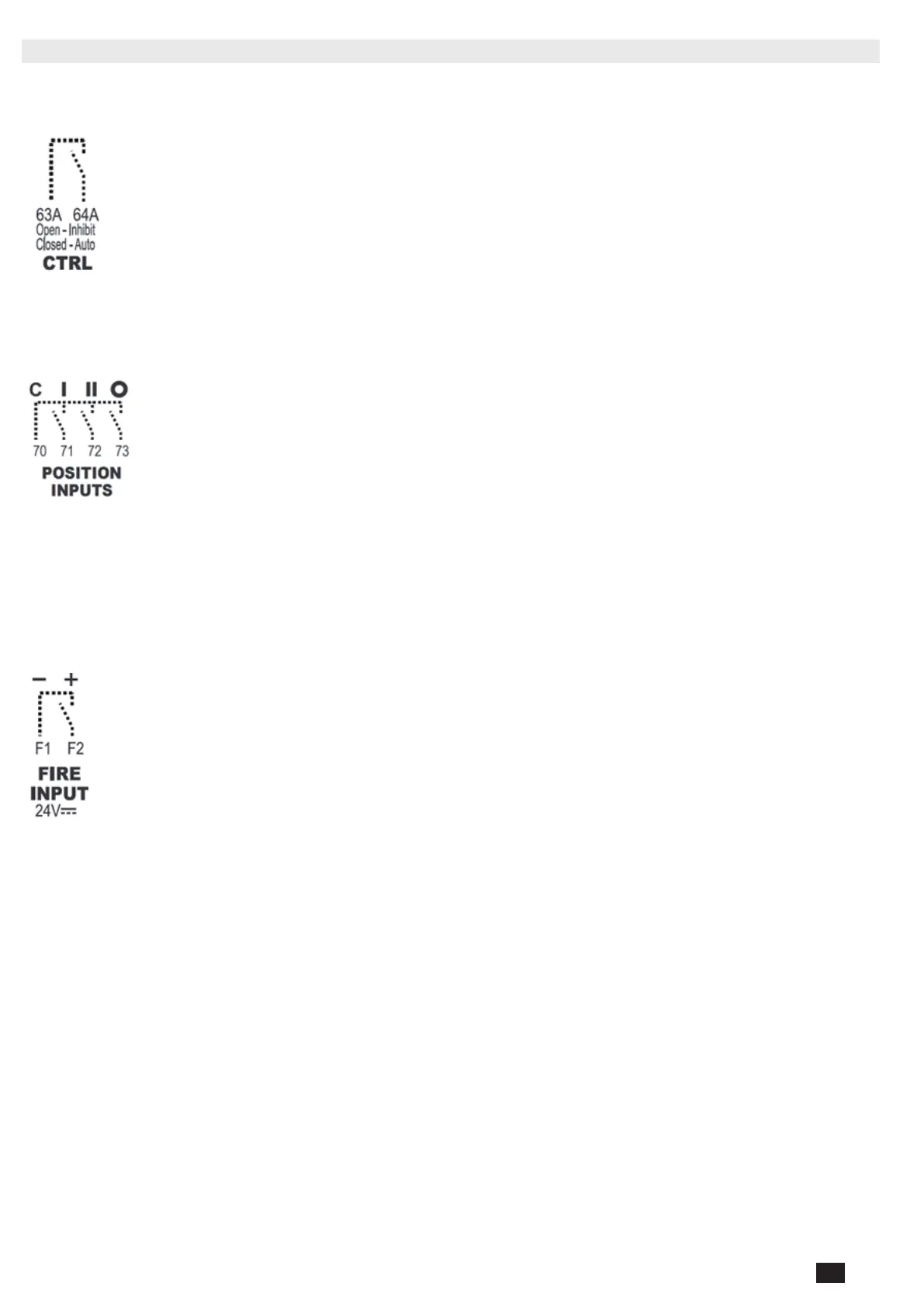

When the contact 63A/64A is open the controller is in inhibit mode (Fault LED blinking and automatism
and manual controls are deactivated). When this contact is closed the controller returns to the last
working mode (either manual mode or automatic mode).
When the product is delivered this input is hardwired to closed, to use the input rst remove the wire
10.4.2. Position inputs
These inputs must be connected from the RTSE to the controller in order to indicate the position
of the RTSE, when the controller gives an order both through manual command and automatically
it will check that the position input corresponding to this order has closed. If this is not the case
the controller fault LED will blink and the buzzer will be on, to clear the fault expected position
input should be closed and the user must press the AUTO button.
73/70 must be closed when the RTSE is in position 0.
72/70 must be closed when the RTSE is in position II.
71/70 must be closed when the RTSE is in position I.
10.4.3. Fire input
This input is activated by applying 24 V.d.c (12-24 V.d.c) on F1 and F2 (negative electrode connected
to F1 and positive electrode on F2.
When this input is activated the Fire LED (13) will be ON (xed) and the buzzer will sound, the
controller will give the order to the switch to go to position 0 and both manual and automatic controls
will be inhibited. When the input is removed, the switch will go back to the last working mode
automatically
