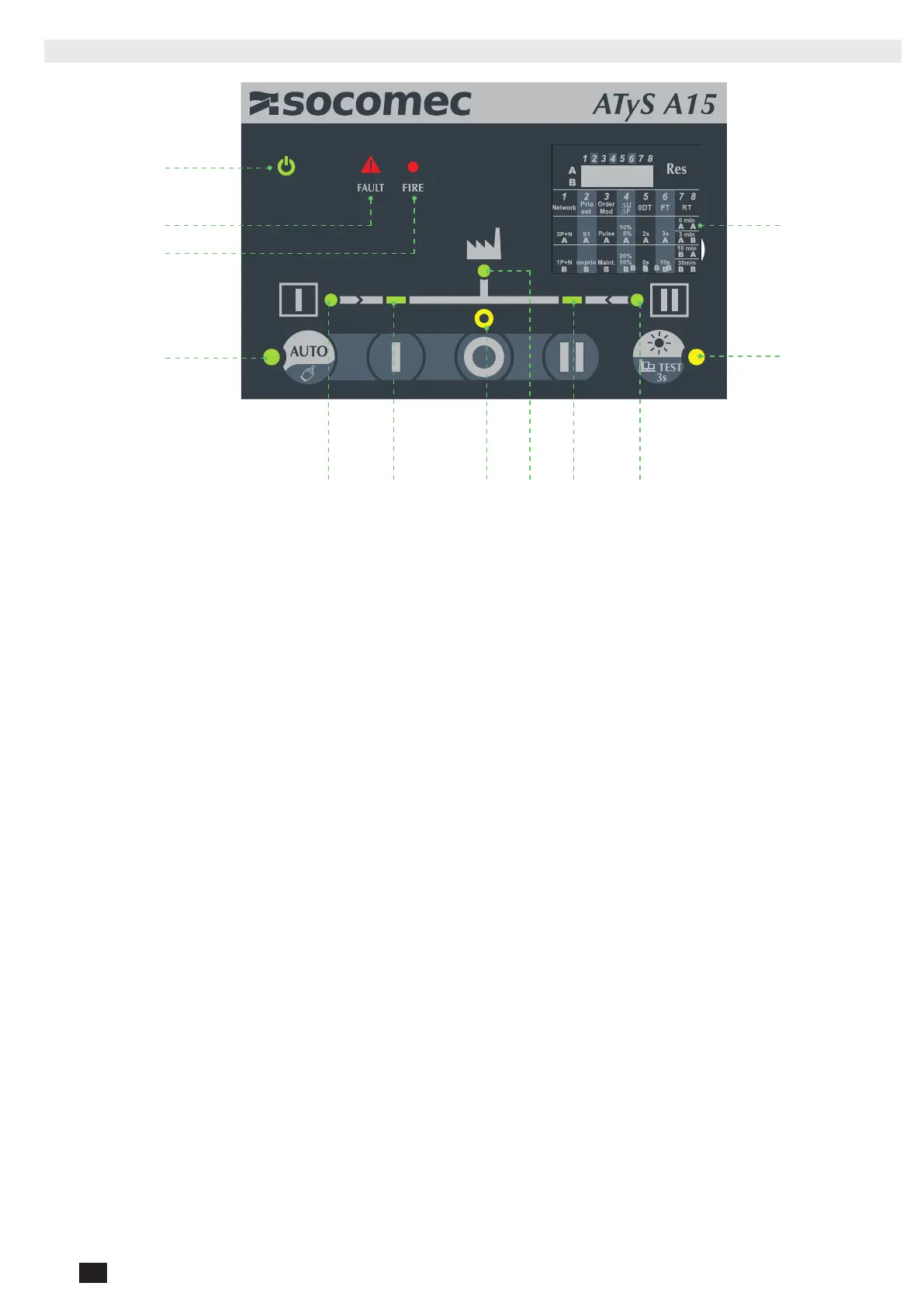

6.2. CONTROLLER HMI
1 2 3 54 6
8
9
13
10
7
11
12
1. Source 1 availability information (Green xed when source 1 is present and available within threshold limits,
green blinking when source 1 is present but outside of threshold limits, off when under 50VAC).
2. Switch 1 LED position indication (Green xed when in position 1).
3. Zero position LED indication (Yellow when in position 0).
4. Load supplied information (Green xed when load is supplied by an available source)
5. Switch 2 LED position indications (Green xed when in position 2).
6. Source 2 availability information (Green xed when source 2 is present and available within threshold limits,
green blinking when source 2 is present but outside of threshold limits, off when under 50VAC).
7. Auto LED indication (Green xed when in automatic, blinking when a transfer is ongoing, off when in manual
mode or inhibited or fault is ongoing).
8. Test LED (Yellow xed when test on load is ongoing).
9. Congurations dip switches (8 dip switches with 2 positions A and B see chapter X.X page X for conguration
details).
10. Run LED (Green when product is powered).
11. COM LED (yellow blinking when RS communications is ongoing).
12. Fault LED (Red blinking – long blink when fault or product in inhibited, fast blink when a dip switch parameter
has been changed and needs validation).
13. Fire (Red when re input is activated).
See Annex I page 29 for more details on the LED indicators
