ATySController C25 - 549780A - SOCOMEC
8.2. Mounting
8.2.1. Door mounting
Door cut-out of 93(+0.8) x138(+1) mm, door thickness 1.5- 3mm.
Remove all connectors and clip before inserting the controller in the cut-out then x the controller in place using all
4 xations clips (cf. image below):
138
(0/+1)
93,5
(0/+0,8)
1,5 - 3

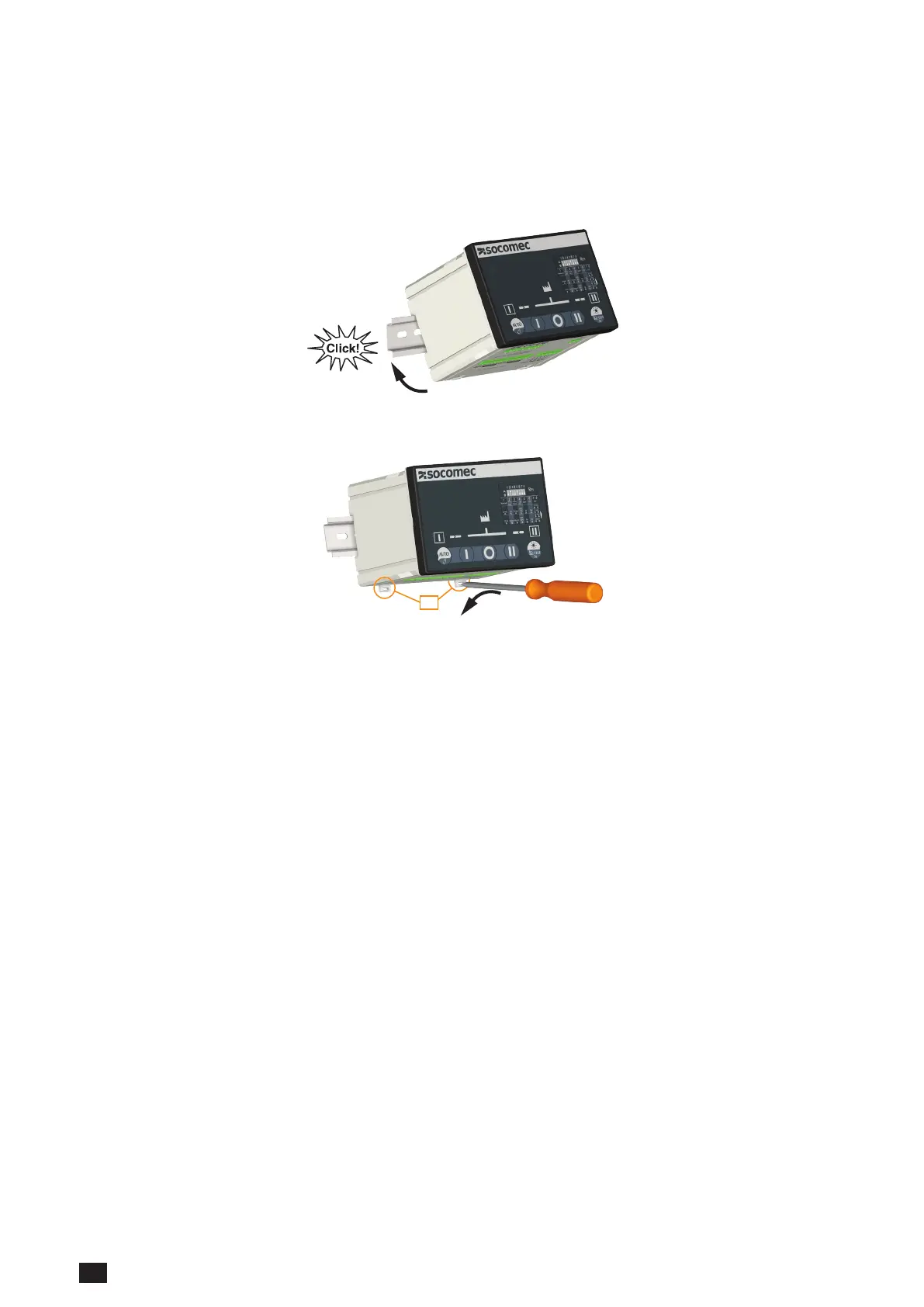

8.2.2. DIN RAIL mounting
Install on IEC 60715 Standard Din RAIL.
When mounting make sure both clips are pushed up, then clip on the DIN Rail.
To remove from the DIN Rail, drag the two mounting clips down before removing the product.
X2
