COUNTIS E23/E24 - Ref.: 542 103 A
8. Operation

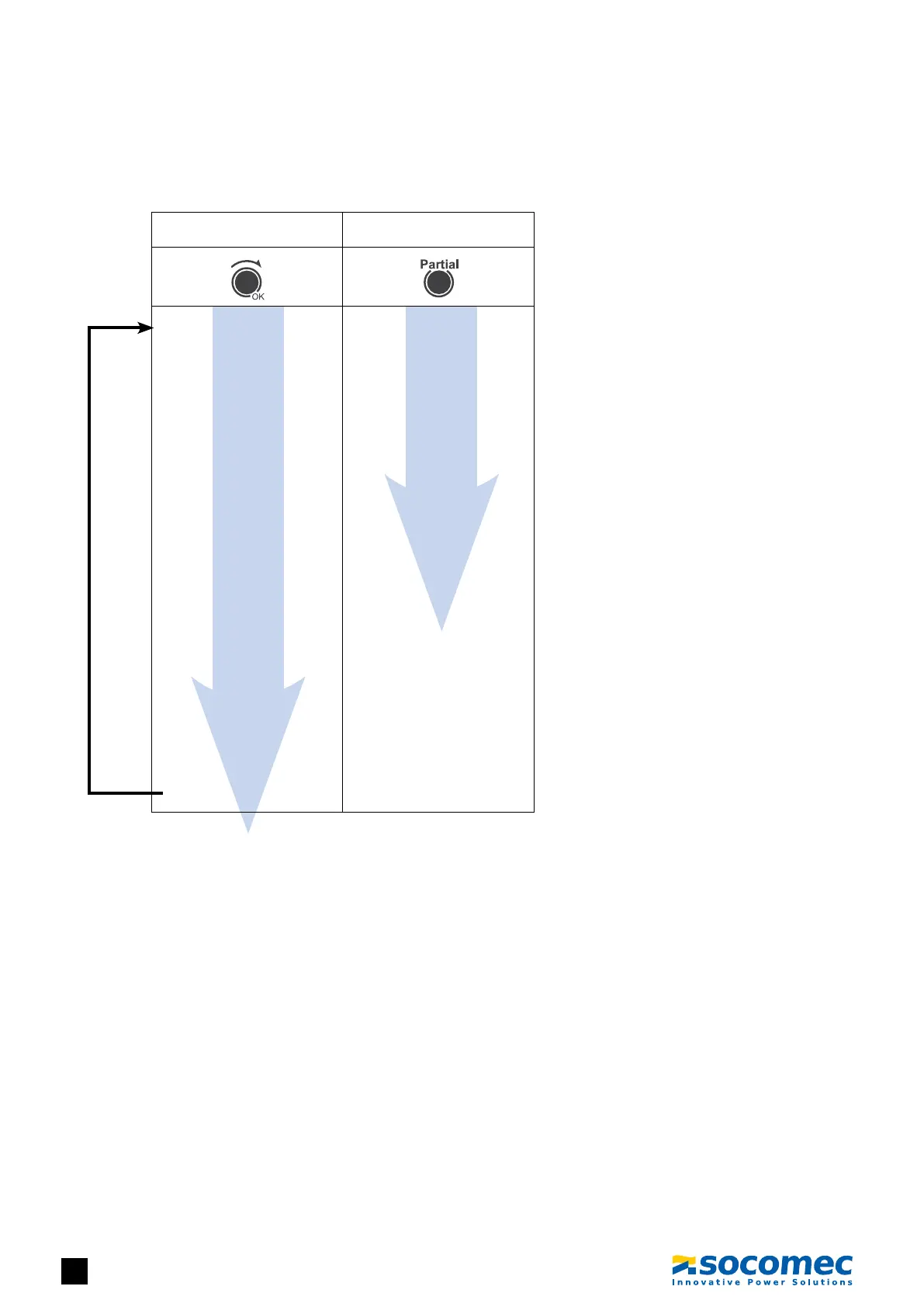

The total and partial active energy values are accessible via the dedicated buttons. Pressing the appropriate button
several times displays all the available measurements. All the available information and measurements are described
in the following diagram:
Total energy Partial energy
Tariff T1
Ea+ (kWh)
Tariff T1
Ea+ (kWh)
______________ ______________
Tariff T1
Ea- (kWh)
Tariff T1
Ea- (kWh)
______________ ______________
Tariff T2
Ea+ (kWh)
Tariff T2
Ea+ (kWh)
______________ ______________
Tariff T2
Ea- (kWh)
Tariff T2
Ea- (kWh)
______________ ______________
Primary MODBUS address
______________
Communication speed
______________
Software version
______________
"Checksum" software
checking
______________
Display screen checking
