COUNTIS E23/E24 - Ref.: 542 103 A

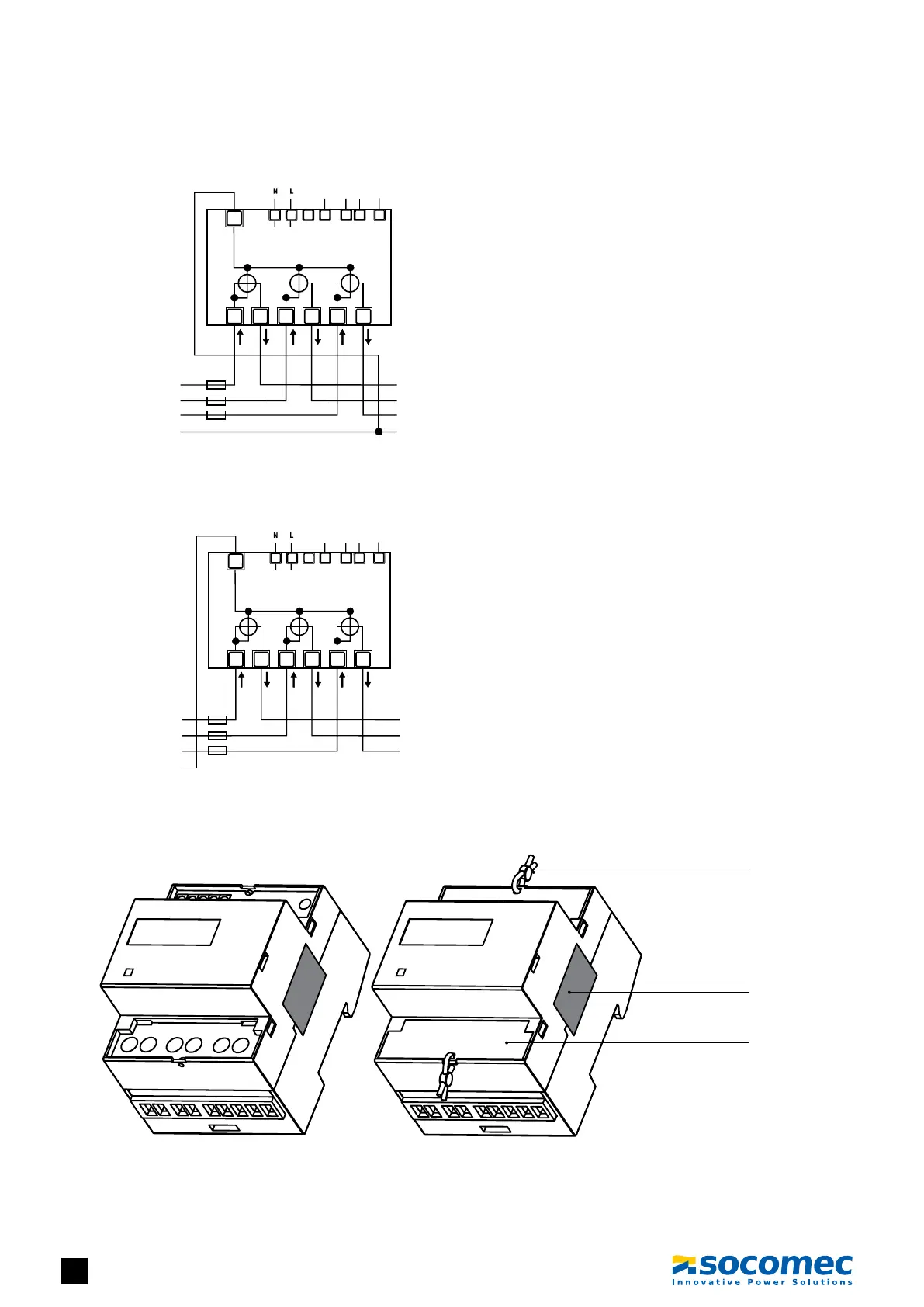

5.4. Connections
5.4.1. 4-wire connection - 4-wire load monitoring
L1
L2
L3
N
L1
L1
L2 L2 L3 L3
N
7
1
654
2
3
L1
L2
L3
N
L1
L1
L2 L2 L3 L3
3 x 63A
230/400 VAC 50 Hz
N
7
1
654
2
3
230 VAC
COM RS485
MODBUS / Jbus
T1/2
120Ω
-
+
NC
3 x 63A
230/400 VAC 50 Hz
230 VAC
COM RS485
MODBUS / Jbus
T1/2
120Ω
-
+
NC
Tariff
1-2: Change of tariff only for COUNTIS E24:
0VAC -> Tariff 1
230VAC -> Tariff 2
(change of tariff via MODBUS for COUNTIS E23).
MODBUS
4: Activation of 120 ohm terminating resistors by connecting
terminals 4 and 5.
5: -
6: +
7: NC (not connected).
Mains
L1: Phase input
L1
: Phase output.
L2
: Phase input
L2
: Phase output.
L3
: Phase input
L3
: Phase output.
N: Neutral connection.
5.4.2. 4-wire connection - 3-wire load monitoring
L1
L2
L3
N
L1
L1
L2 L2 L3 L3
N
7
1
654
2
3
L1
L2
L3
N
L1
L1
L2 L2 L3 L3
3 x 63A
230/400 VAC 50 Hz
N
7
1
654
2
3
230 VAC
COM RS485
MODBUS / Jbus
T1/2
120Ω
-
+
NC
3 x 63A
230/400 VAC 50 Hz
230 VAC
COM RS485
MODBUS / Jbus
T1/2
120Ω
-
+
NC
Tariff
1-2: Change of tariff only for COUNTIS E24:
0VAC -> Tariff 1
230VAC -> Tariff 2
(change of tariff via MODBUS for COUNTIS E23).
MODBUS
4: Activation of 120 ohm terminating resistors by connecting
terminals 4 and 5.
5: -
6: +
7: NC (not connected).
Mains
L1: Phase input
L1
: Phase output.
L2
: Phase input
L2
: Phase output.
L3
: Phase input
L3
: Phase output.
N: Neutral connection.
5.5. Sealable covers
Plastic seal
Terminal covers
COUNTIS E24 MID
Label scaled
between front and
rear faces
