4. ACCESS TO CONTROLS

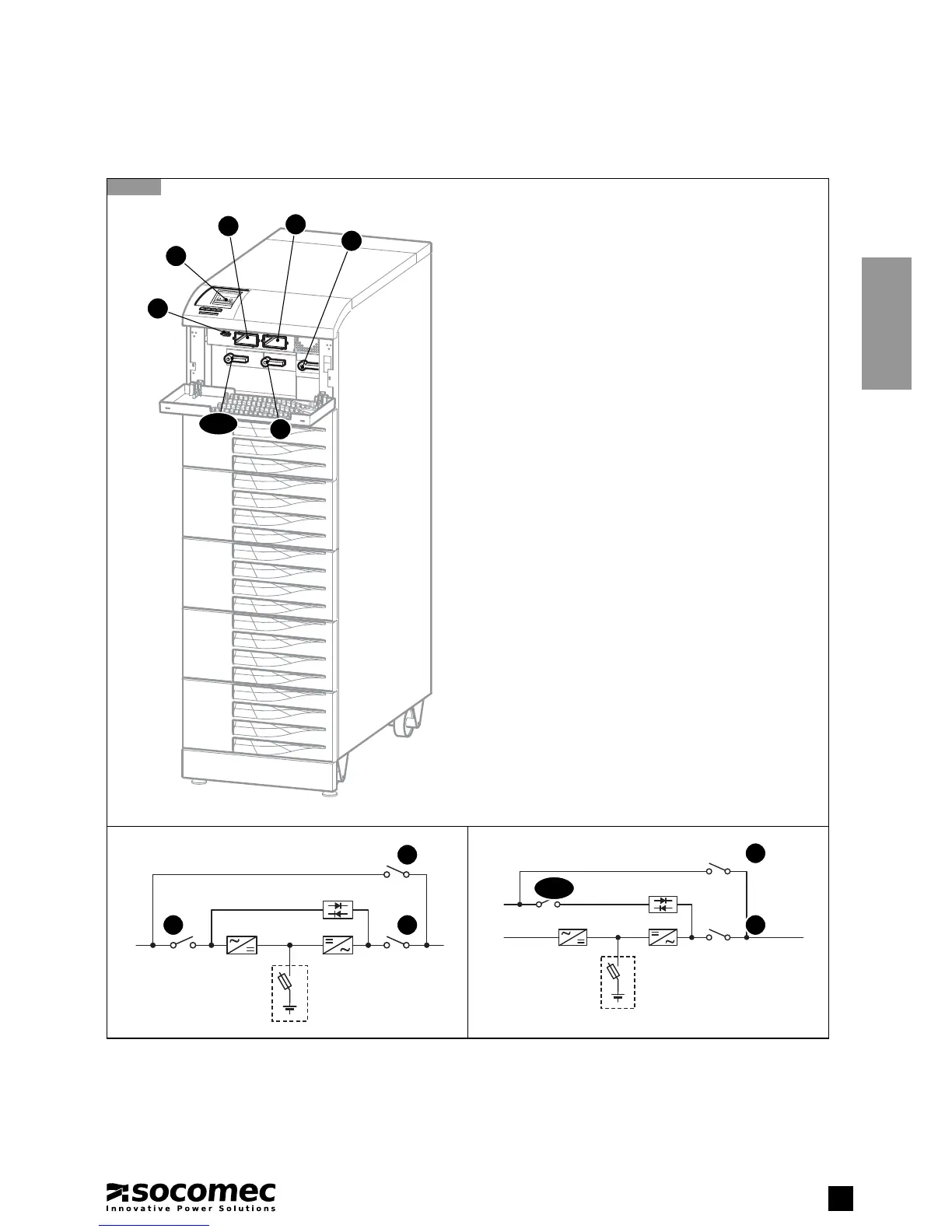

4.1. IDENTIFYING SWITCHES AND INTERFACES
Key
C1 Serial connector RS232/485
S Mimic panel
S1 Options slot 1
S2 Options slot 2
Q2 Input switch
Q3 Output inverter switch
Q4 Auxiliary mains Input switch
Q5 Output maintenance bypass switch
Q3
S2
S1
S
C1
Q5
Q2/Q4
MAINS OUT
B
Confi guration with common mains
OUT
B
MAINS
AUX
MAINS
Confi guration with separate mains
Q2 Q3
Q5
Q3
Q5
Q2/Q4
