28
MASTERYS BC 60-80 kVA - Ref.: IOMMASBCXX06-EN 06
7. CONNECTIVITY AND COMMUNICATION OPTIONS
As each channel is independent, simultaneous connections can
be made to satisfy the different levels of signalling and remote
monitoring.
See the options paragraph to access the detailed functions of
the cards installed in the slots.
Key for pin RS232/485 C1
1 Not connected
2 RX for RS232
3 TX for RS232
4 Data +
5 GND for RS232
6 Data −
7 Reserved
8 Not connected
9 +12 V

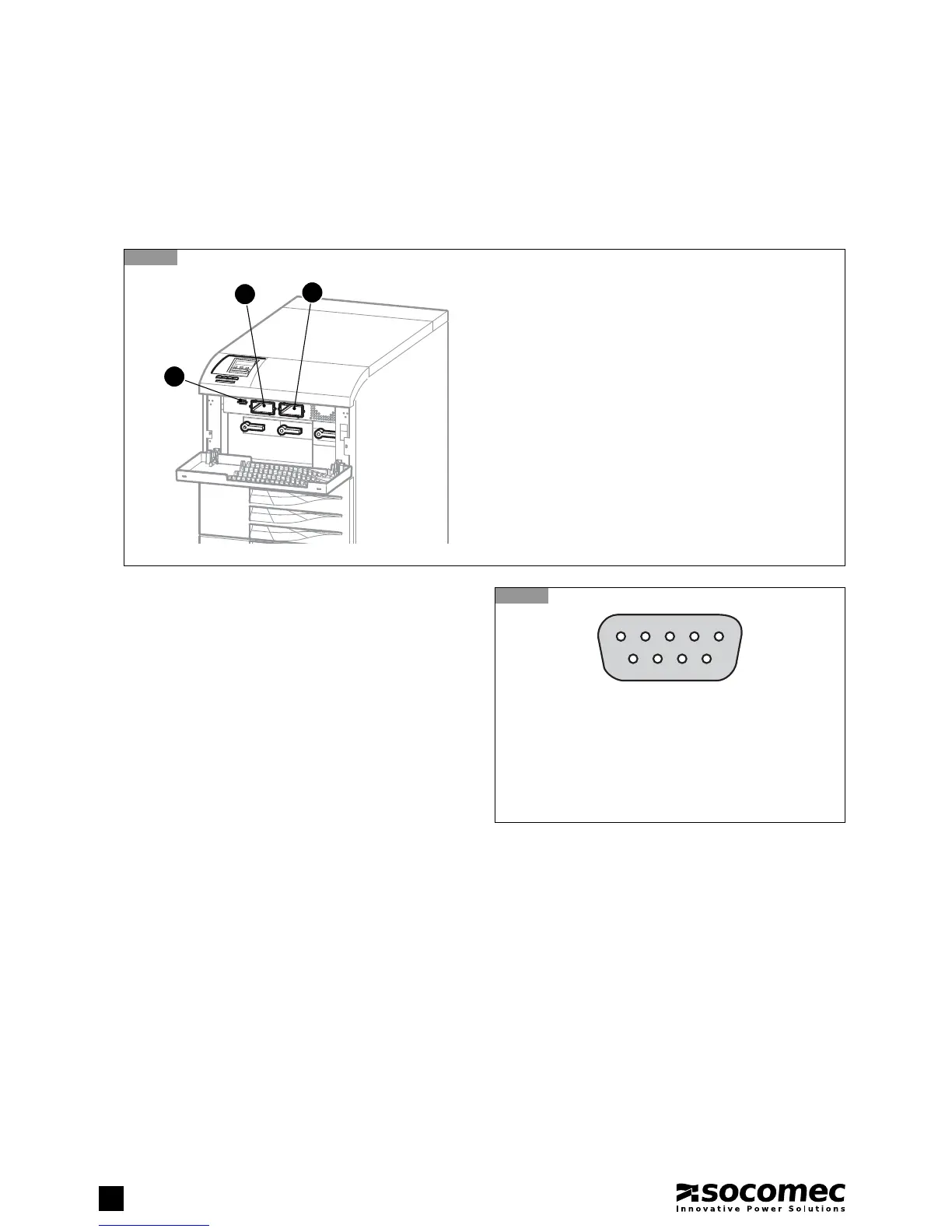

7.1-1
7.1-2
Key
C1 Serial connector RS232/485
S1 Options slot 1
S2 Options slot 2
S2
S1
C1
34521
8976
7.1. MULTI-LEVEL COMMUNICATION
MASTERYS BC can manage a variety of serial, contact and Ethernet communication channels simultaneously.
The various cards and signalling accessories are inserted in the two standard communication slots. This gives MASTERYS BC
immediate interfacing and integration flexibility as soon as the unit is installed with no need for trained personnel.
