6.2. Tower Mounting
Use the included tower stands to mount the UPS in an upright tower position by
following the steps below.
1
Assemble the tower stands (see Figure 6-3).
Tower Stand
× 4 PCS

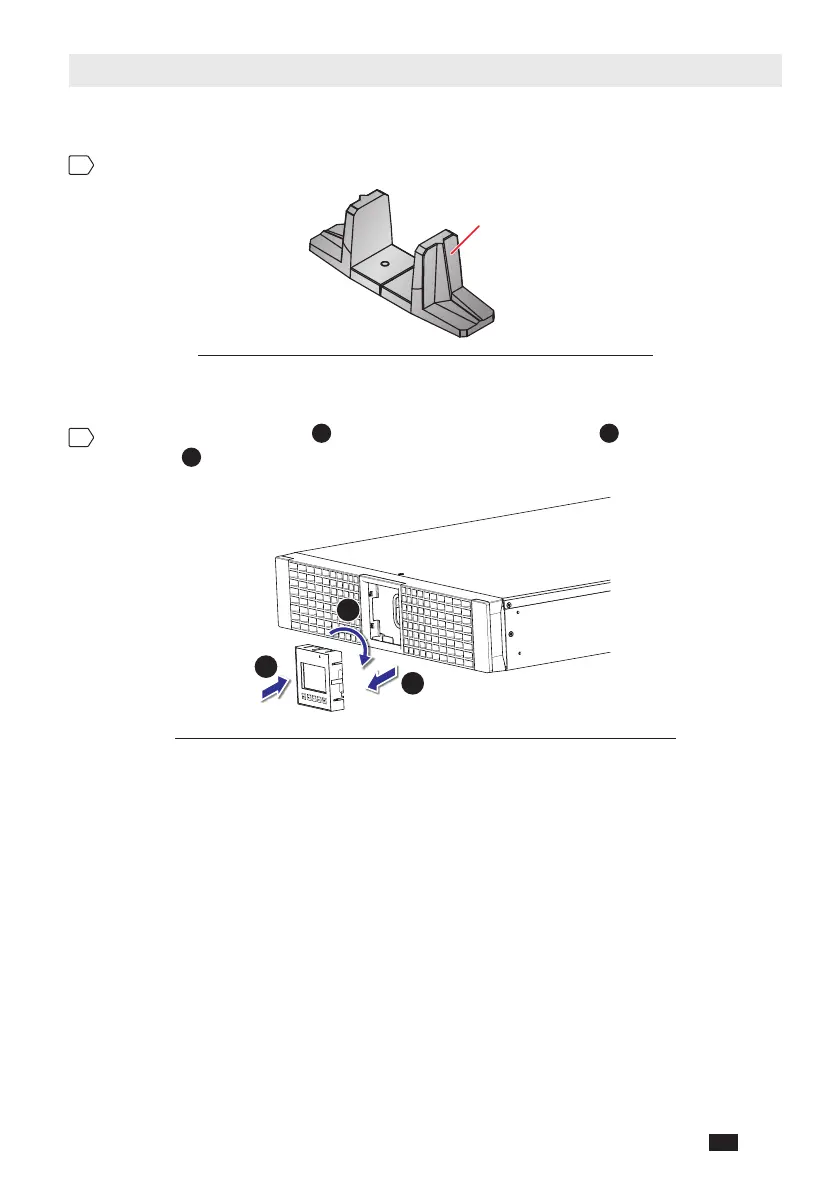

(Figure 6-3: Assemble the Tower Stands for 5 / 7 / 9 /11 kVA UPS)
2
Pull out the control panel
1
, rotate the panel 90° clockwise
2
and re-insert the
control panel
3
(see Figure 6-4).
2
1
3
S
ESC
(Figure 6-4: Rotate the Control Panel and the Socomec Logo Nameplate)
