4. REAR PANEL
Models:
NRT3-U5000 & NRT3-U5000C & NRT3-U7000 & NRT3-U7000C & NRT3-
U7000CLA & NRT3-U7000CLAC & NRT3-U9000 & NRT3-U9000C & NRT3-U11000
& NRT3-U11000C & NRT3-U11000CLA & NRT3-U11000CLAC
The rear panels of the above mentioned models are similar. The differences are the
battery voltage and DC value printed on the panels. For detailed information about
the printed battery voltage and DC value, please refer to the table below. Here, only
the 5kVA UPS model’s rear panel (see Figure 4-1) is used as an example.
SMART SLOT
DRY CONTACT
P2 P3 P4
RS-485
RS-232
P1
REPO
EXTERNAL BATT.
CONNECTOR
192V DC 29A
PARALLEL PARALLEL
INPUT
BREAKER
TMOV
TUPNITUPTUO
ON
OFF
UPS OUTPUT
POWER SHARE
PARALLEL OUTPUT
AC INPUT
NLNL NL
1 2 3
4
5 6 7 8
9
10
11
12 15
13
14
NOTE :
Remove the terminal
cover plate and you will
see the wiring terminal
blocks.

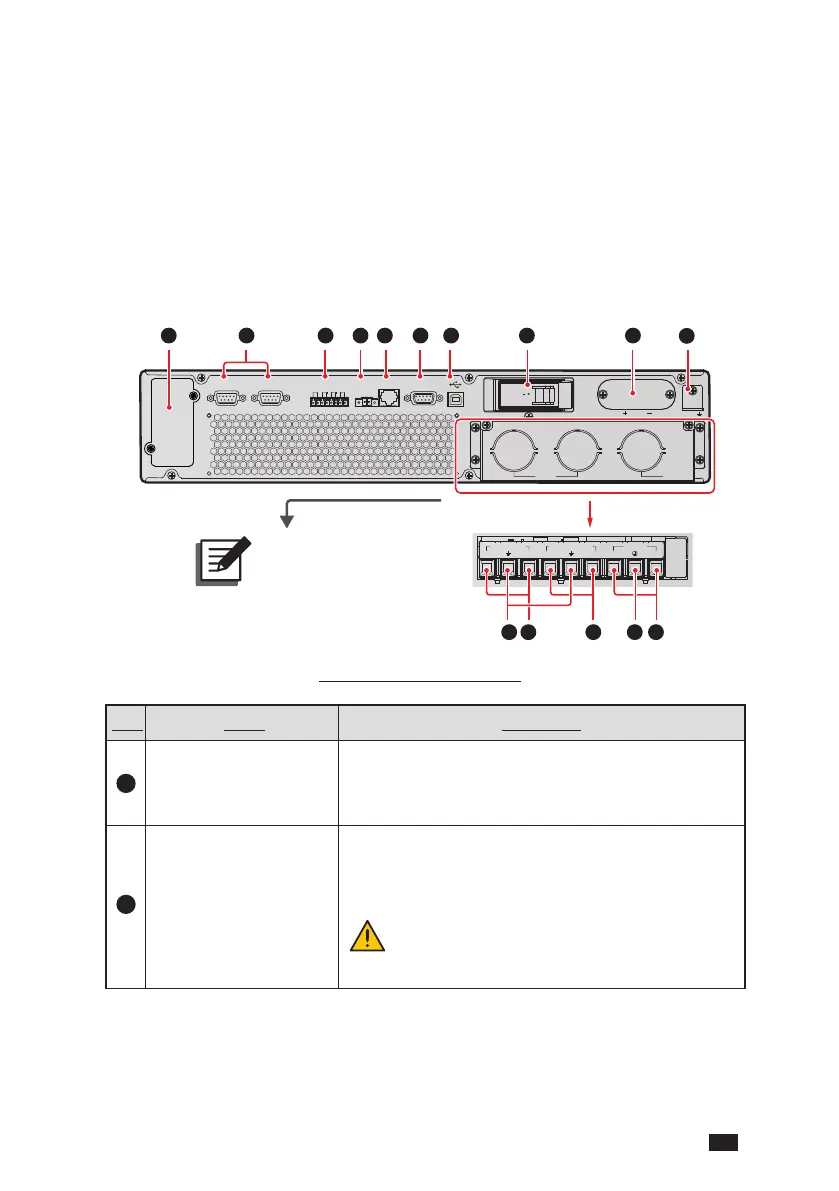

(Figure 4-1: 5kVA Rear Panel)
No. Item Functions
1
Smart Slot
For installation of an optional card.
For more information, please refer to Chap-
ter 5: Communication Interfaces.
2
Parallel Ports
For UPS parallel communication. For more
information, please refer to Chapter 5:
Communication Interfaces.
To enhance parallel reliability, please
adopt the Daisy Chain method to
execute parallel conguration.
