6.3. Battery/ Battery Pack Replacement
1. Turn off the UPS and cut off the AC source before performing battery/ battery
pack replacement.
2. A battery can present a risk of electric shock and high short-circuit current.
3. Servicing of batteries and battery packs must be performed or supervised by qualied
service personnel familiar with batteries, battery packs and the required precautions.
Keep unauthorized personnel away from batteries and battery packs.
Replace the battery/ battery pack by following the procedures below.

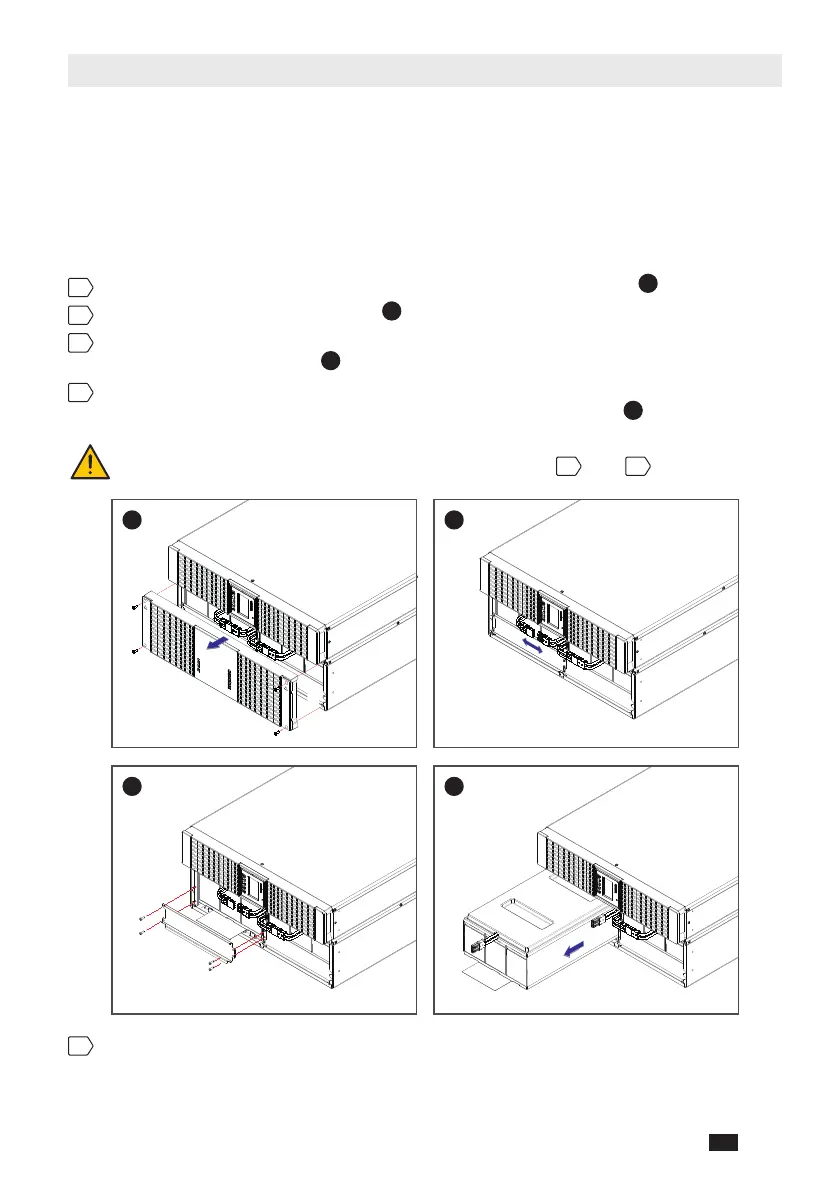

1
Remove the screws and remove the battery pack’s front bezel
1
.
2
Disconnect the battery terminals
2
.
3
Use the insulated screwdriver to remove the screws from the protective cover
located in front of the battery
3
.
4
Pull out the battery from the left battery compartment and insert a new one. Follow the
same procedure to replace the battery in the right battery compartment
4
.
A minimum of two people are required to execute
3
and
4
.
1
N L
L N
UPS OUTPUT
AC INPUT
3
N L
L N
UPS OUTPUT
AC INPUT
4
N L
L N
UPS OUTPUT
AC INPUT
2
5
Reassemble the battery pack in reverse order.
