81
EN
15

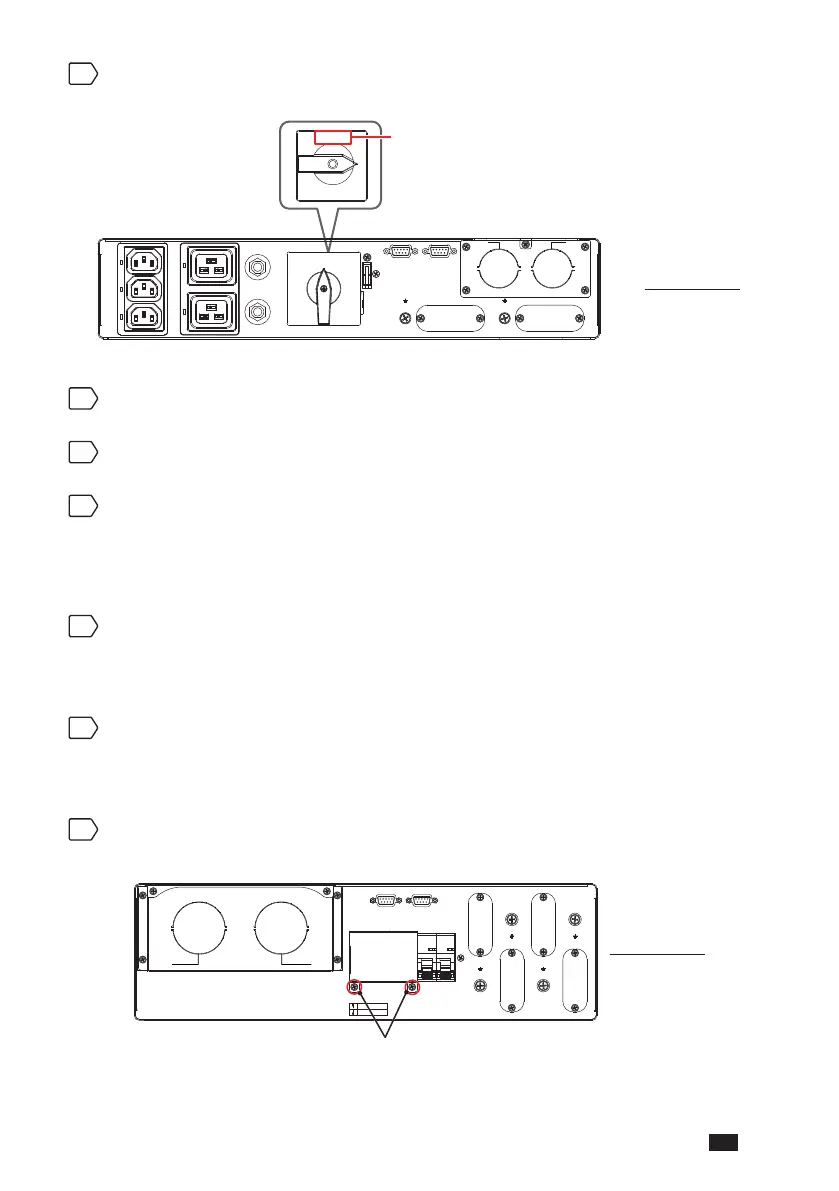

Switch the Manual Bypass’ MANUAL BYPASS SWITCH to the NORMAL
position (see Figure 10-17).
MANUAL BYPASS SWITCH
UPS OUTPUT
L N
UPS INPUT
L N
TO UPS PARALLEL TO UPS PARALLEL
INPUTOUTPUT
OUTPUT SOCKET-2
20A MAX. PER OUTLET
OUTPUT SOCKET-1
10A MAX. PER OUTLET
OUT
P
UT
BR
E
AKER-2
250V AC 25A
OUTP
UT
B
RE
AKER
-
1
250V AC 20A
NORMAL
By
pass
NORMAL
By
pass
NORMAL Position
TO TO
(Figure 10-17)
16
Re-install the cover plate of the MANUAL BYPASS SWITCH on the Manual
Bypass. This will automatically inactivate the manual bypass detector.
17
Press and hold the UPS’s ON/ OFF button for 3 seconds and release it after
you hear one beep to turn the UPS on.
18
The UPS system is ready for normal operation. Please refer to the UPS’s user
manual for more information.
NRT3-OP-PMB
1
Press and hold the UPS1’s ON/ OFF button for 3 seconds, release it after you
hear one beep, use the Scrolling Up or Down button to select 'Yes' and press the
Enter button to conrm your selection. The inverter will be off and the UPS1 will
transfer to run in bypass mode.
2
Press and hold the UPS2’s ON/ OFF button for 3 seconds, release it after you
hear one beep, use the Scrolling Up or Down button to select 'Yes' and press the
Enter button to conrm your selection. The inverter will be off and the UPS2 will
transfer to run in bypass mode.
3
Remove the screws shown in Figure 10-18 to remove the cover plate of the BYPASS
BREAKER.
TO UPS PARALLELTO UPS PARALLEL
TO UPS-1 OUTPUT
BYPASS MODE
UPS MODE
UPS-2UPS-1
OUTPUT BREAKERBYPASS BREAKER
WARNING:
ONLY AUTHORIZED SERVICE PERSONNEL
CAN REMOVE THIS COVER PLATE.
REMOVING THIS COVER PLATE WILL CAUSE
THE INVERTER TO SHUTDOWN. SEE THE
USERS MANUAL FOR INSTRUCTIONS.
TO UPS-1 INPUT
TO UPS-2 OUTPUT
TO UPS-2 INPUT
N L
N L
N L
N L
INPUT
OUTPUT
(Figure 10-18)
To Next Page
