10.3.4. Rear Panel

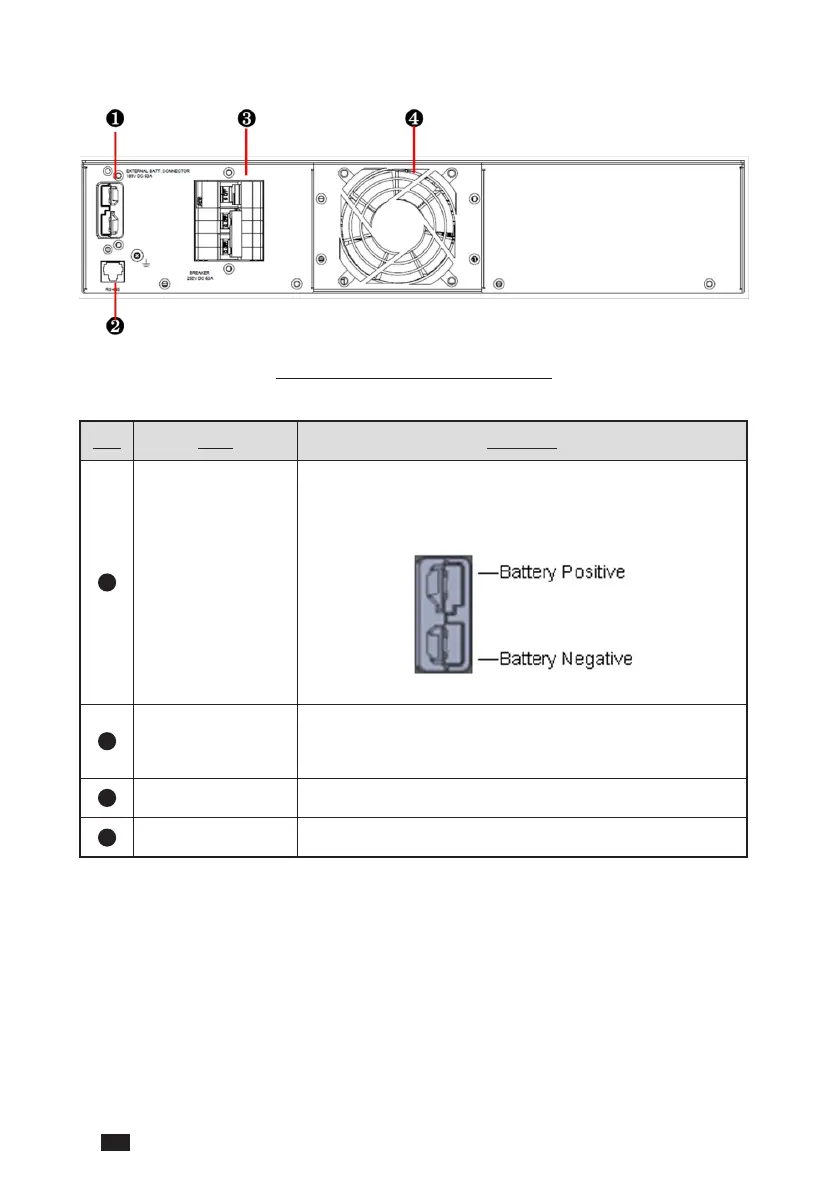

(Figure 10-24: Rear View of RT-10K-LIB)
No. Item Function
1
External Battery
Connector
Connects with the UPS to supply battery power.
The Pin assignment of the external battery con-
nector is shown as follows.
2
RS-485 Port
The lithium-ion battery pack communicates with
the UPS via the RS-485 port.
3
Breaker Serves as a switch for safety protection.
4
Fan Ventilates the air to avoid overheating.
