Product Dimensions
The choice of optional parts of inverter should be made by a qualified
technician who knows the installation conditions clearly.
Dimensions Description

SOFAR 15KTLX-G3
、
15KTLX-G3-A
、
17KTLX-G3
、
20KTLX-G3
、
20KTLX-G3-A
、
22KTLX-G3
、
24KTLX-G3
、
24KTLX-G3-A
L
×
W
×
H=520*430*189mm

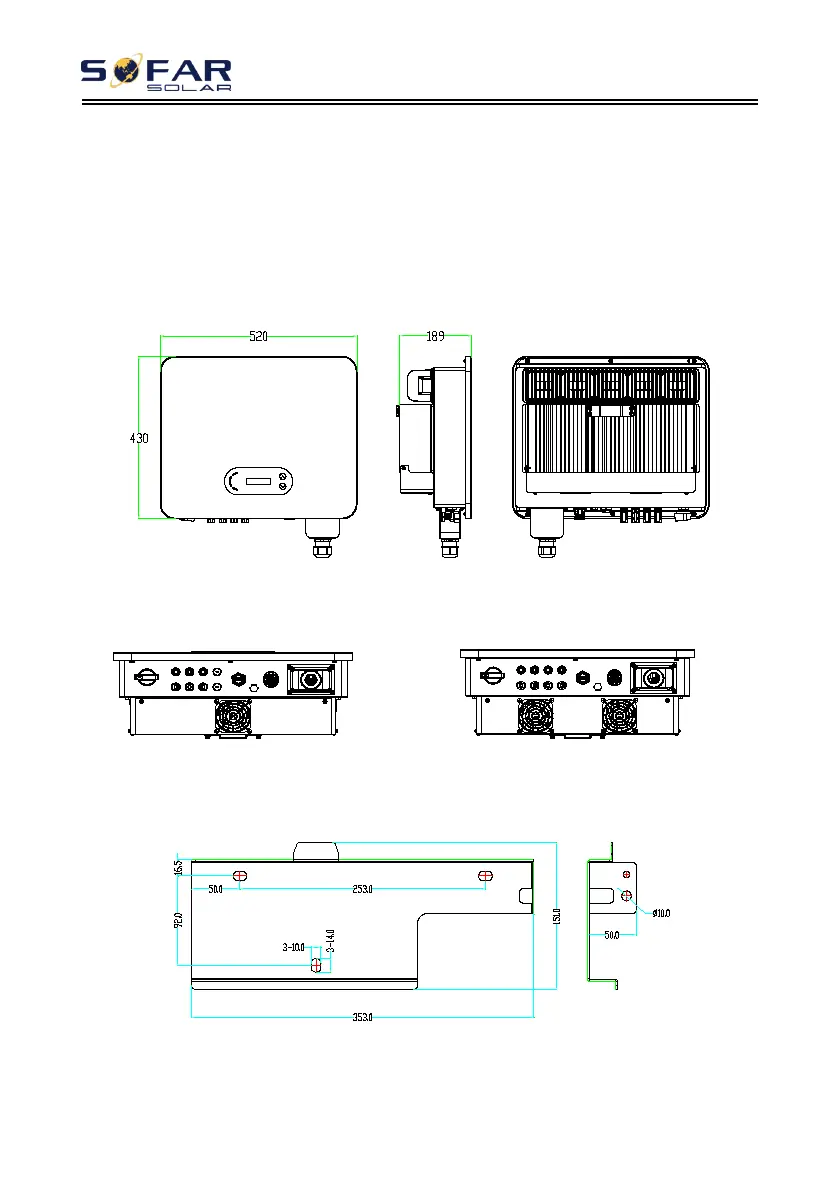

Figure 2-3 Front, side and back of the machine (15~24K)
Figure 2-4a Bottom view(15~17K) Figure 2-4b Bottom view(20~24K)
Note: 15~24K supports 4-channel PV string input.
Figure 2-5 bracket dimensions

Sofar solar 20KTLX-G3 Specifications

General

Brand	Sofar solar
Model	20KTLX-G3
Category	Inverter
Language	English
