Sofar solar PowerAll BTS Series User Manual

BTS 5K user manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
9
battery module name
②
Battery module energy
grade
5K: Battery module energy is
5kWh
2.3. Product Appearance
Battery module port：

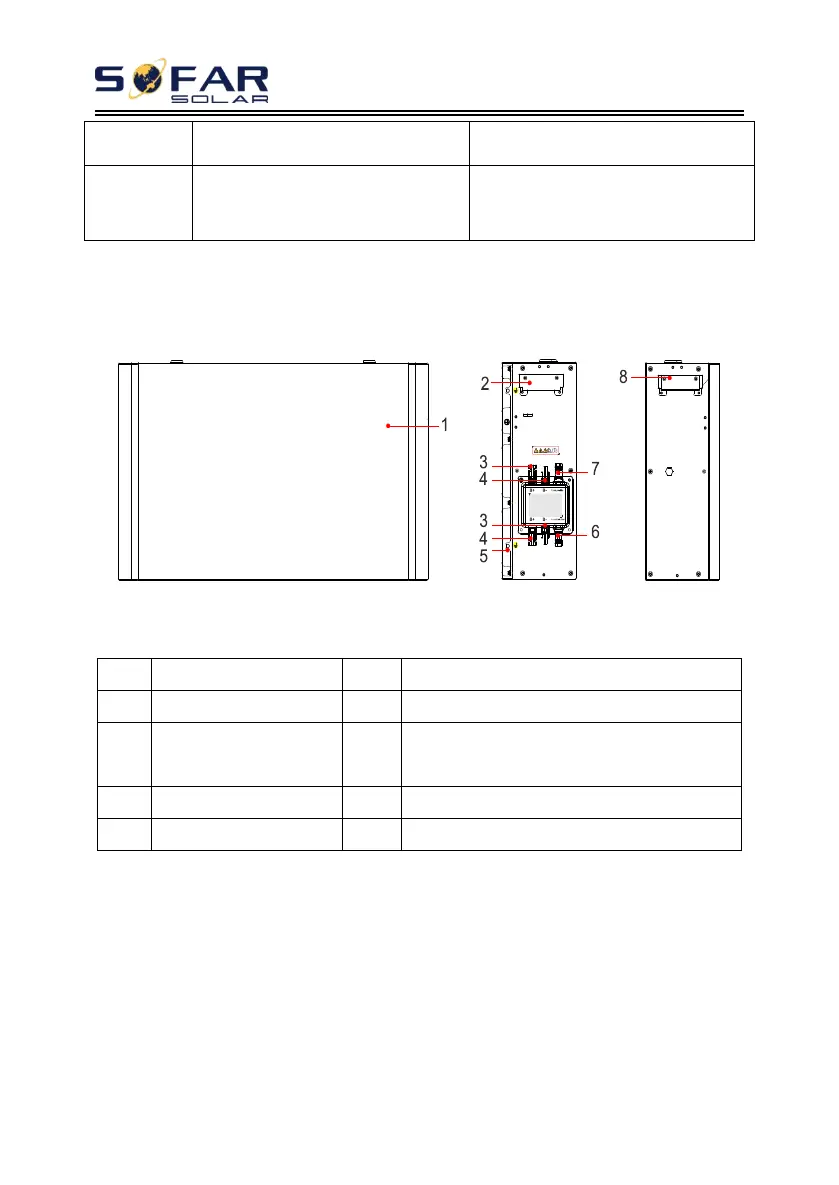

Figure.2.3-1 Battery module port diagram
Table 2.3-1 Battery module port definition
No
Definition
No
Definition
1
Battery module
5
Grounding hole
2
Left side handle
6
Communication output
（Link Port Out）
3
Output terminal B+
7
Communication input（Link Port In）
4
Output terminal B-
8
Right side handle
2.4. Product label
Battery module：
IEC designation：IFpP/51/161/120/[1P16S]M/-10+50/90
Front surface
Left surface
Right surface
